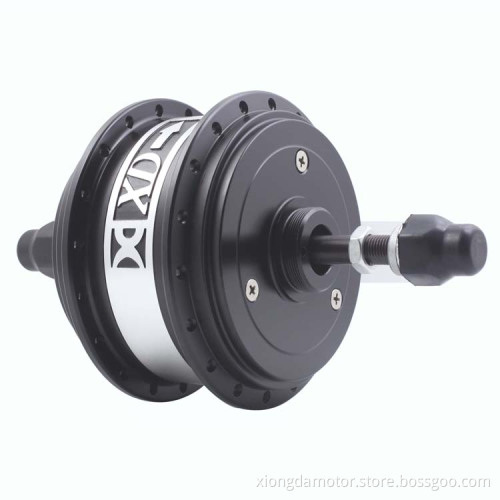

Xiongda 250W 70Nm High Torque Electric Bicycle Brushless DC Rear Hub Motor
-
$130.002-99 piece
-
$120.00100-999 piece
-
$90.00≥1000 piece
- Min. Order:
- 1 piece
- Min. Order:
- 1 piece
Your message must be between 20 to 2000 characters
Contact NowXIONGDA Patented Double Speed Motor
The main features of the Double-speed motor:
a.One motor with two reduction ratios,torque at climbing is 1.82 times of torque at cruising. Amazing climbing performance.
b.Three types of riding model, high-speed, low-speed and automatic.changing according to the road conditions.
c.Motor, battery and controller is working under a low electric current status, all parts will works longer.
Parameters of this Product:
|
Rated Voltage (V) |
24/36/48 |
Cable Location |
left |
|
Rated Power (W) |
180-300 |
Spoke Specification |
12g/13g |
|
Wheel Size |
16''--28'' |
Hall Sensor |
yes |
|
Rated Speed (km/h) |
<35 |
Speed sense inside |
yes |
|
Rated Efficiency (%) |
>=82 |
Surface |
Silver /Black |
|
Reduction Ratio |
1:4.4 / 1:8 |
Brake Type |
Optional |
|
Weight (Kg) |
3.2 |
Salt fog test (h) |
24/96 |
|
Open Size (mm) |
Optional |
Noise (db) |
< 60 |
|
Drive |
rear |
Waterproof Grade |
IP54 |
