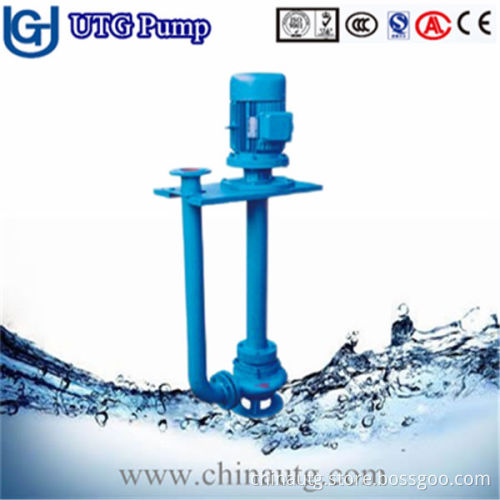

YW series Under liquid sewage submersible water pump

Specifications submersible water pump:High Efficiency, non-block up

Stable, durable without vibration

Easy use, long durability

YW series Under liquid sewage centrifugal submersible water pump Technical Data Flow range:10-2000 m3/h Head range:7-62 m Operation pressure:≤16bar Medium temperature: -20~60°C Application Suitable for many fields to take a platoon Used for containing particles, fiber industrial water, urban sewage Be used to some chemical process Features  1 ,High Efficiency Non-block up
         The uniquely designed single, double-gate impeller, opening model, double leaf model impeller is high effective without block-up, the pump casing etc. flow- through parts designed for completing with the impeller can be selected with their materials and models upon the transported media and can be made sure of the excellent hydraulic performance and working life in the transportation of the media containing suspended grains and long fibers, corrosive and abrasive.
2, Stable, durable without  vibration
       The pump is vertically  structured, the  drive unit(motor stand, clutch, drive shaft,  connecting stand, bearing)is modular  designed and can be superposed at  will along with the variation of  the under-water depth. Both pump casing and impeller can be placed under liquid by 0.5-10m and the motor above the liquid surface, then, via connection with the drive unit, direct ly drives the non block impeller to stably run without  vibration.
3 ,Easy use, long durability
         The impeller is submerged in water and easy to start. An automatic liquid-level control cabinet can be fitted with if so required by users so as to get the liquid-level to co-ntrol the pumps starting and stopping, without  need of a special person to look after.
         Solid maintenance-free design, good rigidity of the pump shaft and  fully-closed roller bearing of a famous brand. The pre-injected high-temperature withstanding lubricating grease
