Thermal insulation material roof heat bubble foil insulation

Thermal insulation material roof heat bubble foil insulation   Our Product Details The product consists of two layers of aluminum foil with plastic bubble laminated between the  aluminum foil,provides excellent insulation: Reflects up to 97% of radiant energy in addition to  resisting other types of heat transfer from conduction, convection and radiation. The two side  aluminum foil forms an effective barrier against moisture, air currents and vapors.
 It is an economical solution for a wide range of industrial, manufacturing and consumer applications

Product Name	Thermal insulation material roof heat bubble foil insulation
Main Material	Alu +  (single / double) PE bubble + Alu

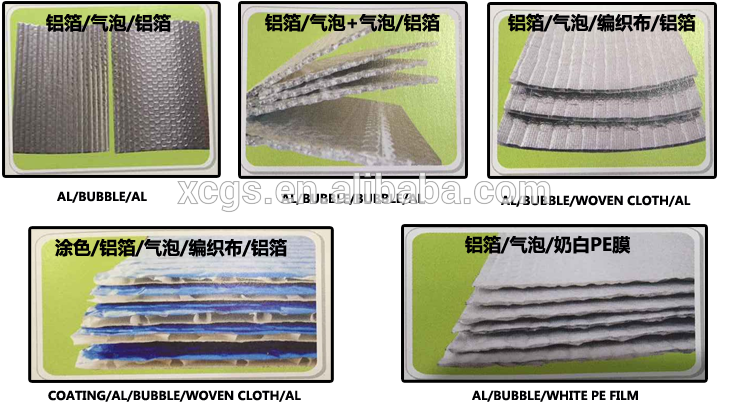

Other Material Structure	MPET + (single / double) PE bubble                                     MPET + (single / double) PE bubble + MPET Alu + (single / double) PE bubble Alu + (single / double) PE bubble + Alu   Alu + woven + (single / double) PE bubble + Alu                                       Alu + woven + (single / double) PE bubble + woven + Alu  Alu + woven + (single / double) PE bubble + Alu + Anti-glare coating         Alu + (single / double) PE bubble + woven + Alu + Anti-glare coating
Air Bubble Size	¢ : 10mm, H: 2.5mm; ¢ : 10mm, H: 4mm;  ¢ : 10mm, H: 6mm; ¢ : 20mm, H: 7mm;  ¢ : 25mm, H: 8mm;  ¢ : 25mm, H: 10mm
Coating Color	Blue, Green, Pink, Orange or customized
MPET/ Al Foil Thickness:	12micron/7 micron
Product Thickness:	2mm-10mm
Reflectivity:	96%~97%
Normal Roll size:	1.2m *30m/roll ; 1.2m *40m/roll; 1.35m *22.25m/roll;  can be customized
Packing:	1 roll/ clear plastic bag or customized logo printing packing bag accept

  Specification aluminum foam foil insulation / aluminum foam foil insulation material

Material Structure:     AL/Bubble/AL
Bubble Size:D10mm*H 4mm(10*2.5/10*4/10*6/20*7/25*10)choose the bubble size
Bubble Weight:130gsm
Roll Width:1.2m (lenth can be customized)
PROPERTIES	TEST DATA	UNIT
Thickness	3.5	mm
Weight	256	g/M2
Emissivity	0.03-0.04	COEF
Thermal conductivity	0.034	w/m0
Apparent Density	85	kg/m3
Reflectivity	95-96	%
Water Vapour Transmission	0.013	g/M2kpa
Corrosion	doesn't generate
Tensile Strength(MD)	16.98	Mpa
Tensile Strength(TD)	16.5	Mpa

  Usage & Application Roof,Ceiling,Wall,Floor,Attic,Livestock Shelters,Basement,Factory buildings,Duct wrappings,Container liner,Sun-stop cover and vehicles.

1.  Thermal insulation and light inflecting in the constrction and protection for both cold winter and water piper
2.   Separation of refrigerator,warm keeping for center air-conditioned,refrigerator and other home appliances
3.   Thermal insulation,sound absorption and noise reduction for car ,train, refrigerator car and laboratory, moisture proof cushion for traveling.    Packaging & Shipping     Related products 1.Bubble Foil Insulation
2.Foam Foil Insulation
3.Woven Foil Insulation
4.Insulation Tape

    Company Information   Established in 1999,with headquarters in Hong Kong, New Star International Group Limited owns five entity factories and one software company.
New Star International Group Limited has its own independent industrial parks covering morethan 60,000 square meters and employees more than 700 workers after more than ten years ofeffort and development. Now it is on a diversified and international development path with packaging as its main focus and construction materials, IT, Tourism, and other areas as its
expanding industries. Currently,our products are exported to over 30 countries such as Germany, America, Canada, Italy, Brazil, Japan, Australia, Indonesia, Malaysia, and others.
