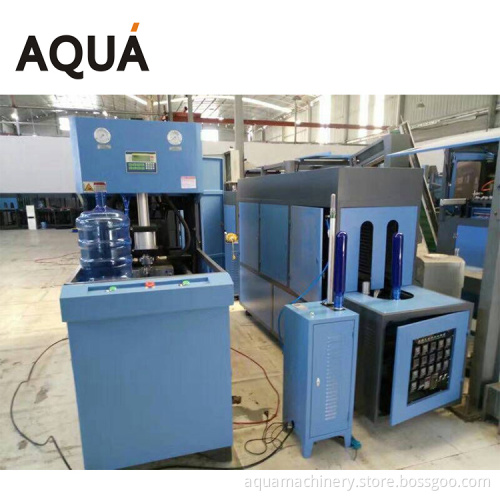

100BPH sopladora 20 litros / sopladora bidones 20 litros blower 5 gallon

sopladora bidones 20 litros is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

100BPH sopladora 20 litros / sopladora bidones 20 litros blower 5 gallon

Technical Dates

Main machine (blowert + oven)	Model type	Tech data
Product Spec	Max. product volume(L/cav)	20L
	Max. preform neck size(mm)	100
	Max. product diameter(mm)	180
	Max. product height (mm)	300
	Cavities	1
Blow molding part	Die force (KN)	100
	Die stroke (mm)	270
	Max. mould size(mm)	390*345
	Mould thickness	Adjustable
	Mould spacing(mm)	Adiustable
	Max. pulling stroke(mm)	400
	Operation pressure(Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	200
	Blow pressure(Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	300
	Output(pcs/h)	1600
	Machine size(LxWxH)(m)	1.460.581.8
	Machine weight(KG)	650
Oven	Temperature grade(rate)	8
	Heating time(S)	90-200
	Voltage(V)	220 or as your request
	Frequency(HZ)	50/60
	Total power(KW)	16
	Oven Size (LxWxH)	1.350.551.15
	Oven weight (KG)	300
