Product Description

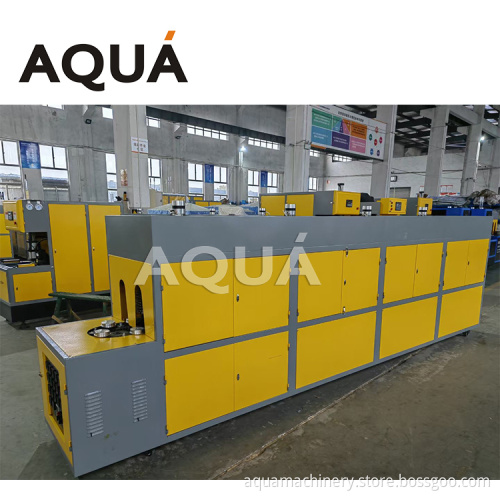

Semi Automatic Stretch Type PET Bottle Blowing Making Molding Machine

Signage

1.The Blow Moudling Machine used to make PET bottles. Such As Water Bottle, Juice Bottle, Carbonated Drink Bottle, Edible oil Bottle etc. The weight difference, the machine speed different,

2. We have 3 differen type semi-automatic PET blow moulding,

300-800pcs/h(one blower one heater 2 cavity ),

600-1200cs/h (2 blowers and one heater 2 cavity) ,

2000-2400pcs/h(one blower one heater 4 cavity,

3. For 0.1-2L bottle size . 3-5L 10-20L will be other type.

4, our Automatic blow moudling machine speed between 2000-14000 pcs per hour.

Recently we shipped a semi automatic blow moulding machine for 5L

Customer : Mongolia

Container size : 6L

Speed 500-600pcs/h

Semi Automatic Stretch Type PET Bottle Blowing Making Molding Machine

Auxiliary Equipment for this 6L project

6L water filling machine ( 3 in 1 type)

Semi Automatic Stretch Type PET Bottle Blowing Making Molding Machine

Recent Cases for Automatic Blow Moulding Machine

Speed: 6000-7000pcs/h For 500ml

Bottle volume: 500ml / 1000ml

Power Consumption : 71kw

Semi Automatic Stretch Type PET Bottle Blowing Making Molding Machine

The air compressor used the top 2 brand in Market (Shangair and Hengda)

Semi Automatic Stretch Type PET Bottle Blowing Making Molding Machine

Paramter of Automatic Blow Moulding Machine

Constituent Part	Item	Technical Parameters
Product Specifications	Max Volume	1800ml
	Max.container diameter	Φ105
	Max Container Mouth diameter	Φ18mm - 38mm
	Max.container diameter	330mm
	Max. Preform height embryonic tube	180mm
	Clamping stroke	120mm
	Base mould stroke	50mm
	Bottle Spacing	114.3mm
	Standard thickness of mold	220mm
	Capacity	6000-7000(500ml)
	Mould	4
Heating Part	Heating Unit	5
	Heating lamp laye	9
	Number of tubules	80
Machine Power	Voltage	220/380V
	Frequency	50/60Hz
	Power	35kw/h
	Installed power	75kw
Air Source	High pressure compressed air pressure	25~30bar
Air Source	High pressure compressed air consumption	3.0m3/min
Water chiller	Pressure	3bar
Water chiller	Chilled water yield	5m3/h
Weight	Main machine \ Heating machine \ electric control box	3.5T
Machine Size	Machine (L×W×H)	4500mm×2200mm×2300mm
Machine Size	Preform-loader(L×W×H)	2000mmx1400mm×2500mm
