Automatic PET Bottle Blowing Machine

$11000.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Semi Automatic PET blow machine / Automatic PET bottle blowing machine / blowing PET

Signage

1.The Blow Moudling Machine used to make PET bottles. Such As Water Bottle, Juice Bottle, Carbonated Drink Bottle, Edible oil Bottle etc. The weight difference, the machine speed different,

2. We have 3 differen type semi-automatic PET blow moulding,

300-800pcs/h(one blower one heater 2 cavity ),

600-1200cs/h (two blowers and one heater 2 cavity) ,

2000-2400pcs/h(one blower one heater 4 cavity)

5L-10L one or 2 cavity

20L /5 gallon : 1 cavity

Automatic blow moudling machine speed between 2000-14000 pcs per hour.

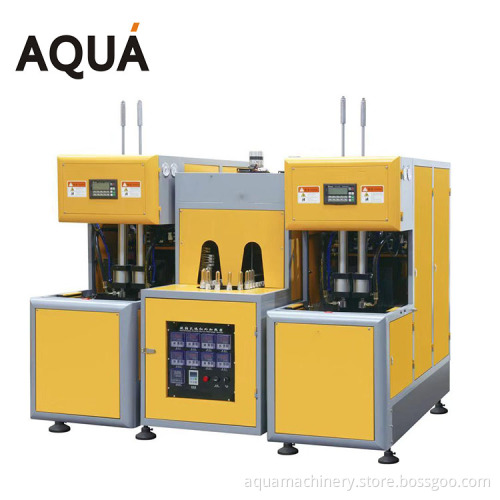

semi automatic blow moulding machine for 5L

Semi Automatic PET blow machine / Automatic PET bottle blowing machine / blowing PET

Cases for Automatic Blow Moulding Machine (6 cavity 6000-7000pcs per hour )

Semi Automatic PET blow machine / Automatic PET bottle blowing machine / blowing PET

Paramter of Automatic Blow Moulding Machine

Constituent Part	Item	Technical Parameters
Product Specifications	Max Volume	1800ml
	Max.container diameter	Φ105
	Max Container Mouth diameter	Φ18mm - 38mm
	Max.container diameter	330mm
	Max. Preform height embryonic tube	180mm
	Clamping stroke	120mm
	Base mould stroke	50mm
	Bottle Spacing	114.3mm
	Standard thickness of mold	220mm
	Capacity	6000-7000(500ml)
	Mould	4
Heating Part	Heating Unit	5
	Heating lamp laye	9
	Number of tubules	80
Machine Power	Voltage	220/380V
	Frequency	50/60Hz
	Power	35kw/h
	Installed power	75kw
Air Source	High pressure compressed air pressure	25~30bar
Air Source	High pressure compressed air consumption	3.0m3/min
Water chiller	Pressure	3bar
Water chiller	Chilled water yield	5m3/h
Weight	Main machine \ Heating machine \ electric control box	3.5T
Machine Size	Machine (L×W×H)	4500mm×2200mm×2300mm
Machine Size	Preform-loader(L×W×H)	2000mmx1400mm×2500mm
