Factory Price 1600-2000pcs Semi Automatic PET Bottle Blowing Molding Machine

Factory Price 1600-2000pcs Semi Automatic PET Bottle Blowing Molding Machine

$6500.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

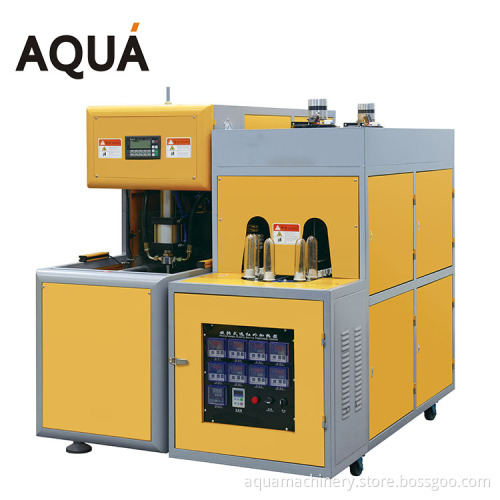

Factory Price 1600-2000pcs Semi Automatic PET Bottle Blowing Molding Machine / Water Bottle Making Machine

Signage

1.The Blow Moudling Machine used to make PET bottles. Such As Water Bottle, Juice Bottle, Carbonated Drink Bottle, Edible oil Bottle etc. The weight difference, the machine speed different,

2. We have 3 differen type semi-automatic PET blow moulding,

300-800pcs/h(one blower one heater 2 cavity ),

600-1200cs/h (2 blowers and one heater 2 cavity) ,

2000-2400pcs/h(one blower one heater 4 cavity,

3. 5L 10L one or 2 cavity 20L /5 gallon : 1 cavity

4, our Automatic blow moudling machine speed between 2000-14000 pcs per hour.

Recently we shipped a semi automatic blow moulding machine for 5L

Factory Price 1600-2000pcs Semi Automatic PET Bottle Blowing Molding Machine / Water Bottle Making Machine

Cases for Automatic Blow Moulding Machine (6 cavity 6000-7000pcs per hour )

Factory Price 1600-2000pcs Semi Automatic PET Bottle Blowing Molding Machine / Water Bottle Making Machine

Paramter of Factory Price 1600-2000pcs Semi Automatic PET Bottle Blowing Molding Machine / Water Bottle Making Machine

Constituent Part	Item	Technical Parameters
Product Specifications	Max Volume	1800ml
	Max.container diameter	Φ105
	Max Container Mouth diameter	Φ18mm - 38mm
	Max.container diameter	330mm
	Max. Preform height embryonic tube	180mm
	Clamping stroke	120mm
	Base mould stroke	50mm
	Bottle Spacing	114.3mm
	Standard thickness of mold	220mm
	Capacity	6000-7000(500ml)
	Mould	4
Heating Part	Heating Unit	5
	Heating lamp laye	9
	Number of tubules	80
Machine Power	Voltage	220/380V
	Frequency	50/60Hz
	Power	35kw/h
	Installed power	75kw
Air Source	High pressure compressed air pressure	25~30bar
Air Source	High pressure compressed air consumption	3.0m3/min
Water chiller	Pressure	3bar
Water chiller	Chilled water yield	5m3/h
Weight	Main machine \ Heating machine \ electric control box	3.5T
Machine Size	Machine (L×W×H)	4500mm×2200mm×2300mm
Machine Size	Preform-loader(L×W×H)	2000mmx1400mm×2500mm
