2 Cavity Stretch PET Bottle Blowing Machine

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Signage

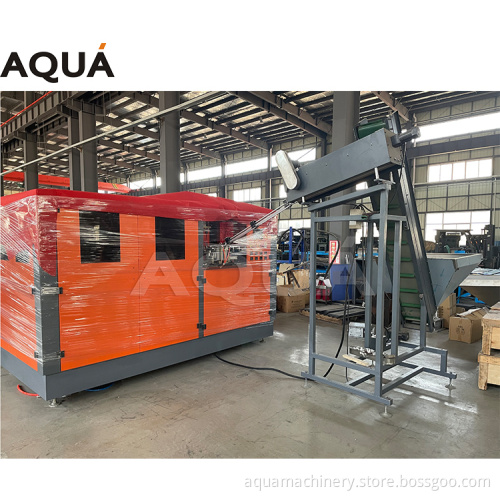

2 cavity Stretch Type PET Bottle Blowing Machine Machine

1. the plastic blowing machine is used to make PET bottles.

2. we have different capacity blowing machine from 600-15000pcs.h, tell me your requirement, so we can give the solution.

3. For 0.1-2L bottle size .

4. water bottle, carbonated bottle can use the same machine, juice machine will be different. so customers should be clear.

Recently cases We did

Project : 7000pcs per hour Compete Water Filling Line

Production : 6000 b / h

Bottle volume : 500ml & 1000ml

Country : Armenia

2 cavity Stretch Type PET Bottle Blowing Machine Machine

Confirguration of 2 cavity Stretch Type PET Bottle Blowing Machine Machine

Constituent Part	Item	Technical Parameters
Product Specifications	Max Volume	1800ml
	Max.container diameter	Φ105
	Max Container Mouth diameter	Φ18mm - 38mm
	Max.container diameter	330mm
	Max. Preform height embryonic tube	180mm
	Clamping stroke	120mm
	Base mould stroke	50mm
	Bottle Spacing	114.3mm
	Standard thickness of mold	220mm
	Capacity	4000(500ml)
	Mould	4
Heating Part	Heating Unit	5
	Heating lamp laye	9
	Number of tubules	80
Machine Power	Voltage	220/380V
	Frequency	50/60Hz
	Power	35kw/h
	Installed power	75kw
Air Source	High pressure compressed air pressure	25~30bar
Air Source	High pressure compressed air consumption	3.0m3/min
Water chiller	Pressure	3bar
Water chiller	Chilled water yield	5m3/h
Weight	Main machine \ Heating machine \ electric control box	3.5T
Machine Size	Machine (L×W×H)	4500mm×2200mm×2300mm
Machine Size	Preform-loader(L×W×H)	2000mmx1400mm×2500mm

Semi automatic Blowing Moulding Machine

4 cavity plastic blowing machine, the capacity can be 2000-2400pcs.h.

2 cavity plastic blowing machine, the speed can be 800 pcs, 1600pcs .h

Opeation: preform loading automatic and take out the bottle by hand.

2 cavity Stretch Type PET Bottle Blowing Machine Machine

Auxiliary Equipment

Compressor : normally we used Hengda brand, the top 3 suppliers in China.

2 cavity Stretch Type PET Bottle Blowing Machine Machine

Parameters of Semi automatic blowing moulding machine )

Model	AM-2L(Ssemi automatic bottle blowing machine )
Capacity	Depends on bottle shape	600pcs/h
Product Spec	Bottle diameter	30mm-100mm
	Bottle height	50mm-350mm
	Bottle mouth	15mm-80mm
mold	Mold cavity	1cavities
	Mold thickness	100~250mm
	Mold effective area	*350520mm**
Main machine power	Power source	380v 3Phase /220v 3Phase 50/60HZ
Main machine power	Installed power/actual power	18kw/10kw
Air source
	HP compressor	1.6m3/min 3.0MPa
	Air drier	2.0m3/min 3.0MPa 1set
chiller	Cold water volume	15L/min
Main machine size	LxWxH/Weight	*18506501750mm/850kg*
Oven size	LxWxH/Weight	*18506501650mm/350kg*
