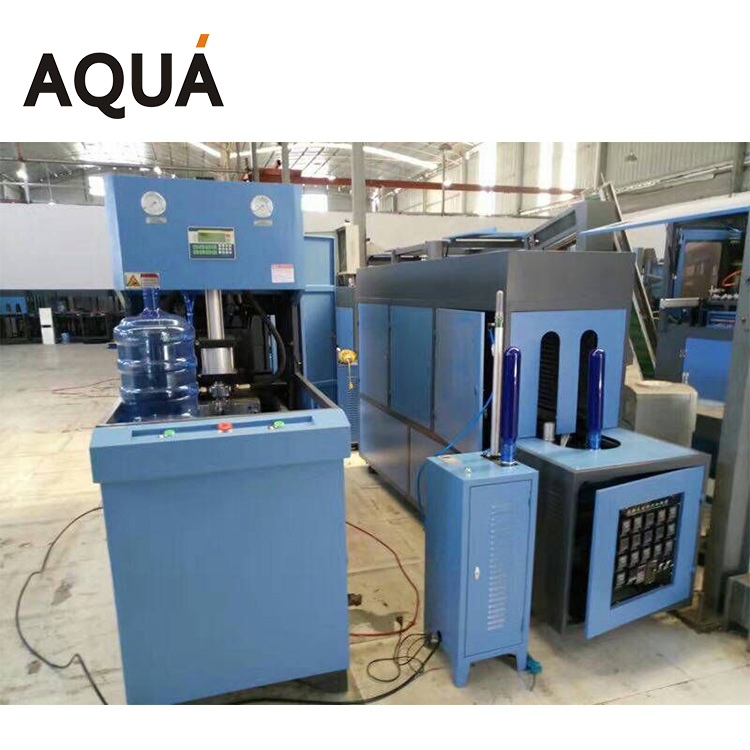

20L PET Bottle Blower Machine / Semi Auto sopladora de botella pet 20L

Application:
The machine is suitable for making 6L-25L PET bottles(especially for 3 to 5 gallon PET water bottles).

Features:
- inside heating system in the oven.- slide block system for oven
- strong infrared heating lamps
- Airtac LP valves with stronger mechanical movement(specially suitable for gallon bottle production)
- steel mould plate

PRODUCT SPECIFICATIONS

Molding	Clamping force	kg	6000
		Clamping stroke	mm	360
		Stretching stroke	mm	450
		Bottom stroke	mm	/
		Cavity pitch	mm	/
		Number of Cavity	cavities	1
Container	Max.container volume	itr	20
		Neck diamer range	mm	30-120
		Max.container diameter	mm	300
		Max.container height	mm	430
		Carriage unit	pcs	19
Capacity	Output	bph	100
Electrical system	Total power	kw	39
		Heating power	kw	38
		Max.heating power	kw	20
Machine	Machine size	mm	2350-750-1900
Machine		Machine weight	kw	1500

Products Description

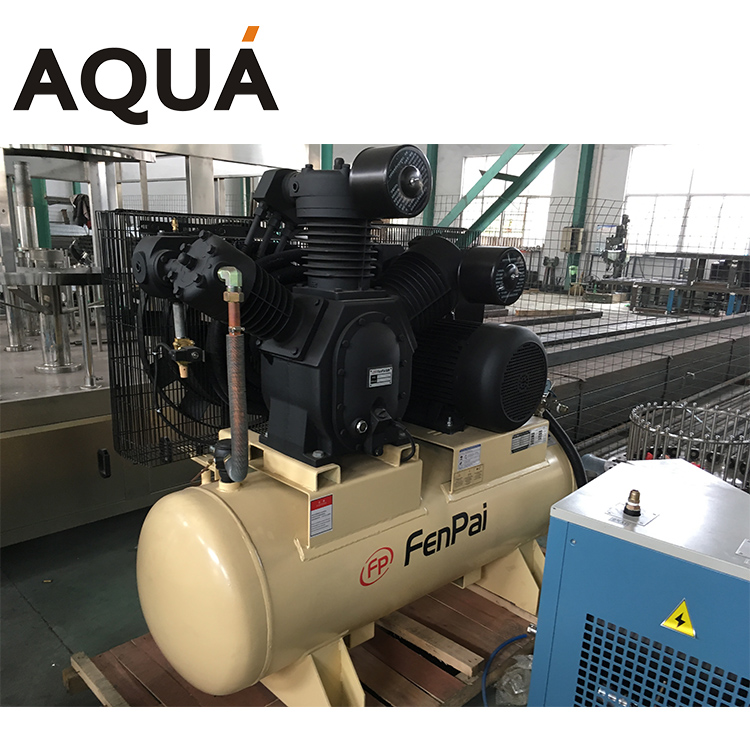

High Pressure Air compressor

To provide air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the
required pressure

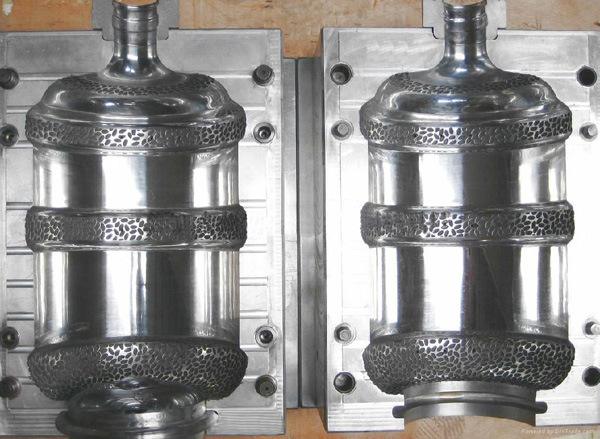

Bottle Mold

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

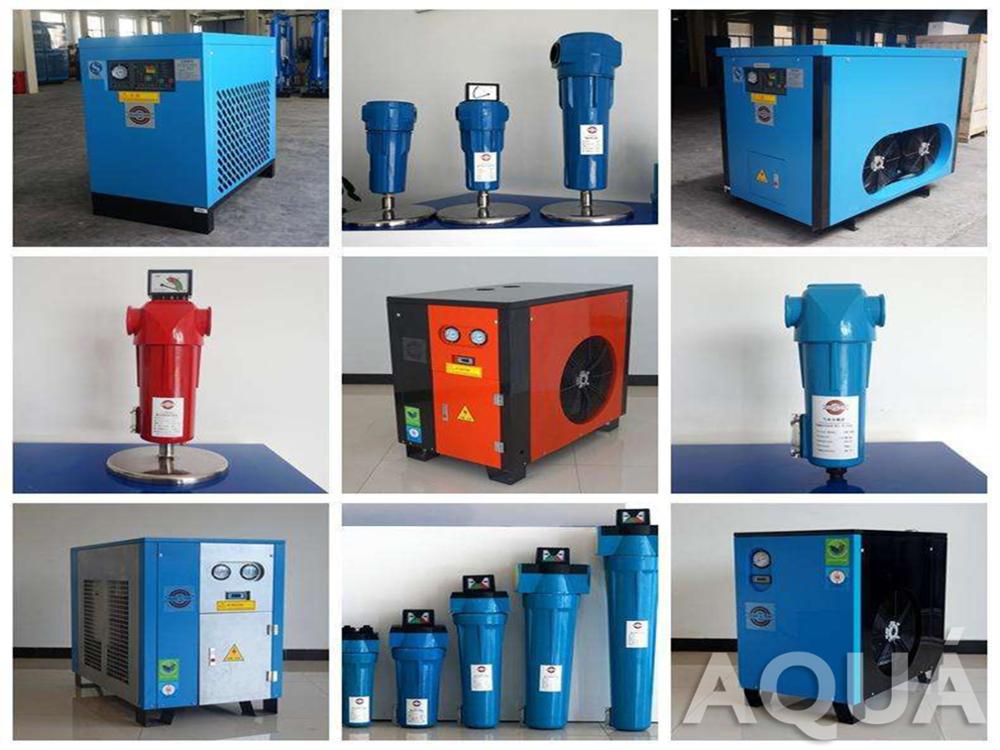

Air Dryer with Filter

To remove the moisture from the compressed air and lower temperature of the compressed air in the heat ex-changer.

To clear up the impurities out of the compressed air, like carbon hydrogen, tiny dust and solid particles.

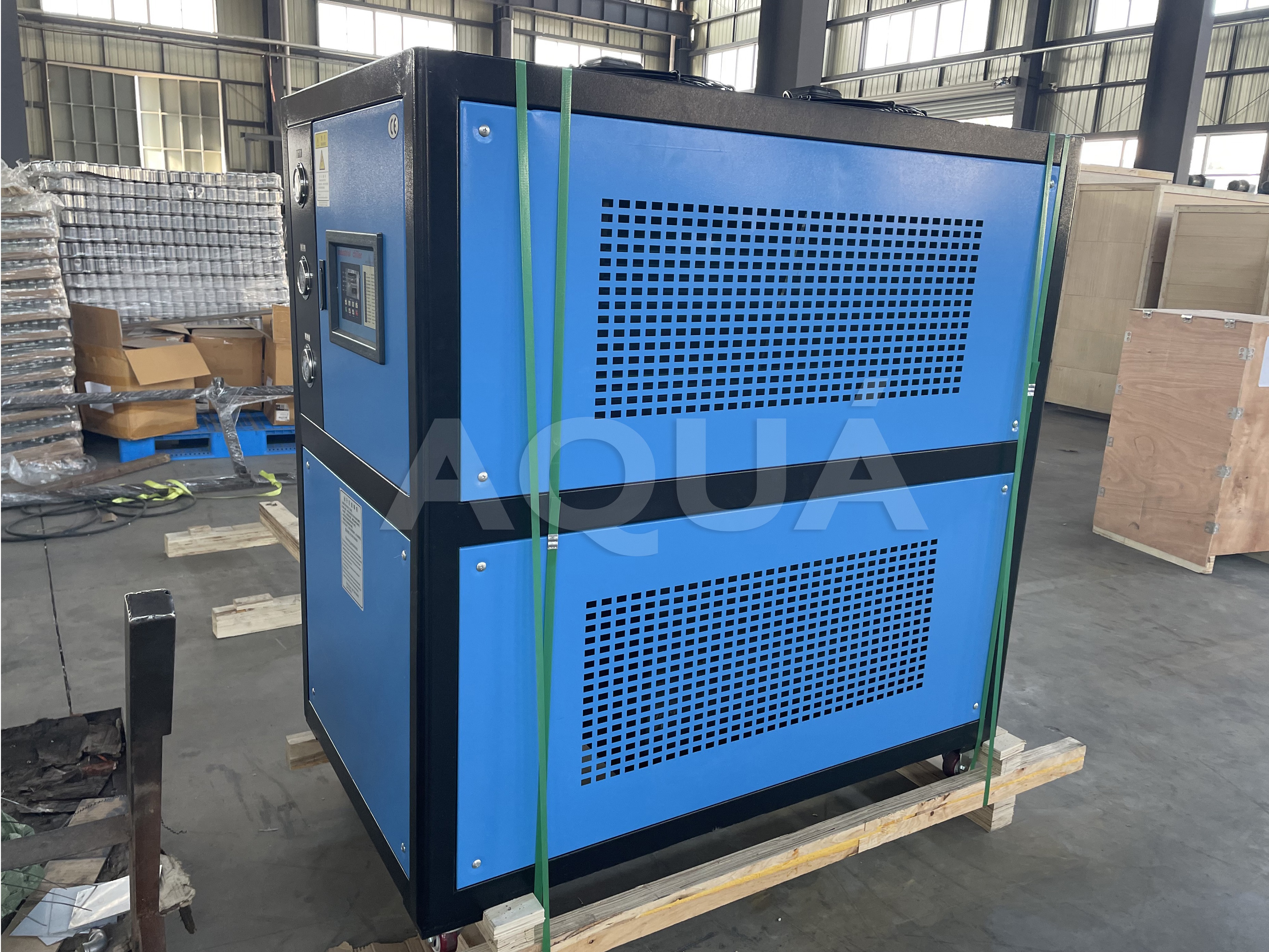

Mold Chiller

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
