HOCL Generator 200-1000ppm Hypochlorous Acid Generator

HOCL Generator 200-1000ppm Hypochlorous Acid Generator

$15000.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Overview

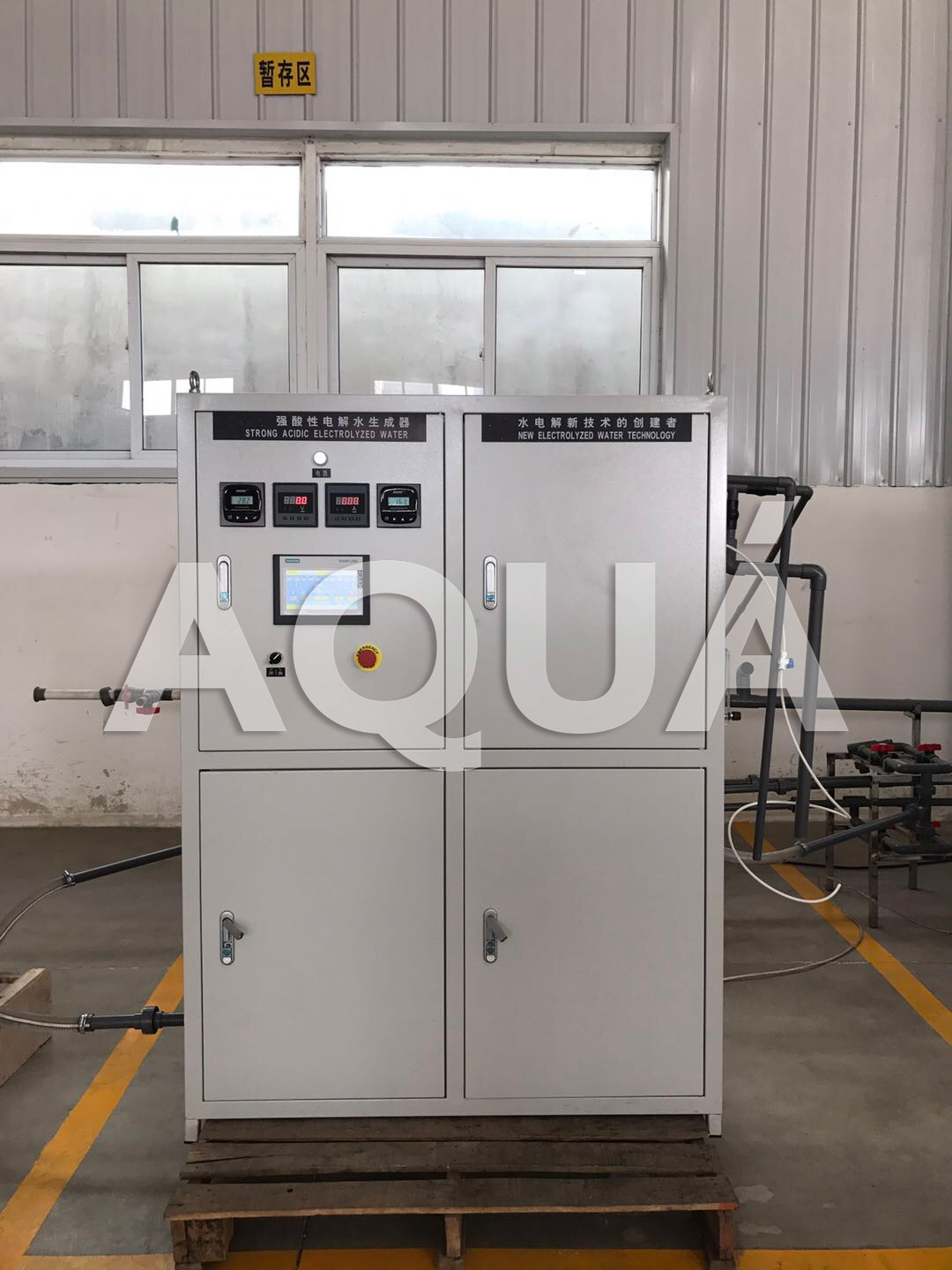

Automatic Hypochloric Generating System / HOCL Generator 200-1000ppm Hypochlorous Acid Generator

1/ The device can fully electrolyze the chloride ion in an aqueous solution to produce the most efficient bactericidal component, hypochlorous acid HCIO, which does not produce ozone or oxygen, does not produce chlorine, high chloride chloride HCIO2, HCIO3, etc.

2. Slightly acidic electrolyzed water is also called Chlorochloric acid, pH 5.0-6.5, effective concentration is usually 10-30ppm,can also be adjusted according to needs, the highest concentration can reach 30,000ppm.

3. In Japan, where food safety standards are extremely high, in 2002, the Ministry of Health, Labor and Welfare of Japan approved micro-acidic electrolyzed water as a bactericidal ingredient for food additives, officially known as hypo-acid water. Used for cleaning, sterilization and fresh-keeping of food materials

4. Non-corrosive, humidifying spray, improving air quality, effectively preventing epidemic diseases

5.Non-irritating, no heavy metal, household care can be used for tableware disinfection, personal wound disinfection

6. Low concentration and high activity, the bactericidal ability is 80 times that of sodium hypochlorite. It can be used for
slaughtering, aquatic products, fruit and vegetable sterilization and ice making.

7.Non-toxic, sterile and quick to produce, low cost, used in the fungus industry for aseptic vaccination

8. High concentration of hypochlorous acid water, strong oxidizing, can be used in various types of sewage treatment

FEATURES AT A GLANCE

1/Our Hypochlorous Acid Water Generator is a industrial type not commercial or Household

2/the electrolyte is Nacl or HCL,Different machine .

3/ Small capacity is 100LPH

4/Inlet water required RO water

PRODUCT SPECIFICATIONS

Product Name	Automatic Hypochloric Generating System / HOCL Generator 200-1000ppm Hypochlorous Acid Generator
Inflow pressure :	0.05~0.15MPa
Power supply:	380v 50HZ 3 Phase
Outflow rate:	Smallest 100L/H
Productive way:	continuous electrolysis
pH value:	5.5-6.5 Adjustment
The volume of effective chlorine	10-30000PPM (Depends on Customers)
Power	3 KW
Weight	300KG
Machine size	12001600500MM（LHW）
Inelt water requirement	RO water
Electrolyte	Nacl or Hcl

PRODUCT CONFIGURATION

Item	Main Component	Brand
System function	Brief	Industrial-grade equipment can run 24 hours a day without interruption, automatic alarm and shutdown when there is insufficient raw water, acid or alkali water full. Key indicators such as pH value are displayed in real time through online meters.
Electrical and Automation Control	Breaker	ABB
		AC contactor	ABB
		VFD	ABB
		PLC	Siemens
		Touch screen	Siemens
		Terminals	PHOENIX
		Cable	LAPP
		Level Switch	Taiwan Radar
Electrolysis device	Electrolyze	Titanium platinum alloy plate (Our Patent)
Electrolysis device		Electrolytic power supply	Customized military grade
Waterway valve	Stainless steel valve	304 Stainless steel(Shangdong Public company)
Waterway valve		UPVC pipes	Food grade，Fromosa Plastics(top company from Taiwan)
Online meter	Inlet conductivity	Create From China(Public Company)
Online meter		Outlet pH	Create From China(Public Company)
Dosing system	Dosing pump	SEKO From Italy
Dosing system		box	PE
Control cabinet	304 stainless steel	Aqua
Water treatment cabinet	304 stainless steel	Aqua

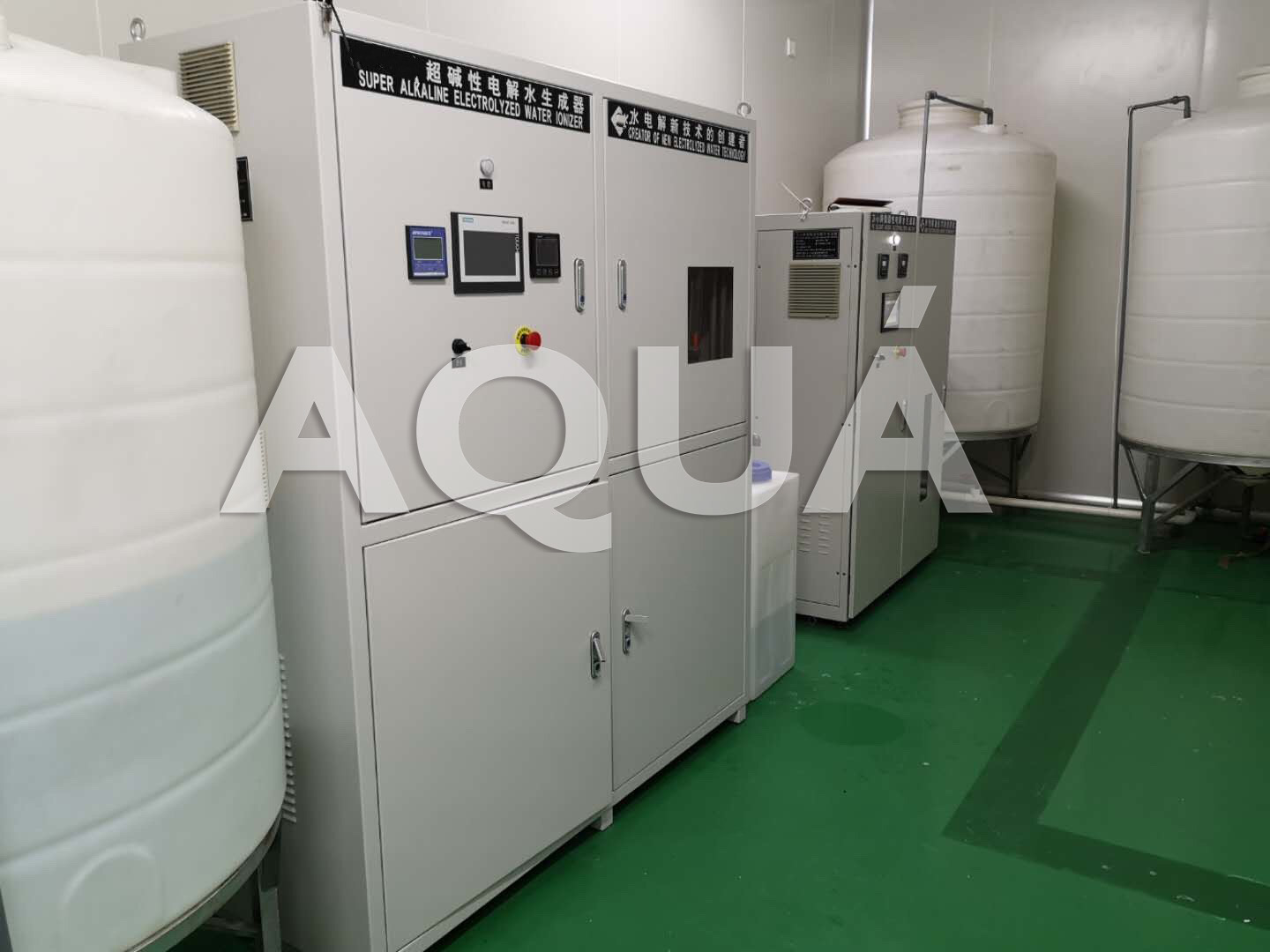

Successful Project

Project in South Korea

Project in China

one of the biggest water supplier

Project in indonesia

Application

Food Industrial

There are a lot of pesticide residues in vegetables and fruits. The use of alkaline water can effectively remove these residues. At the same time, alkaline electrolyzed water is harmless to the food itself.

Food industrial

Marine product storage and preservation

Cleaning of Marine product processing equipment and utensils

Breeding environment and utensil disinfection

Livestock drinking water.

Slightly acidic electrolyzed water is pumped into the pipeline and directly used by livestock and poultry, which can effectively play a role in disinfection and sterilization.

Restaurants and Feeding Industry

Strongly electrolyzed water can kill all kinds of bacterial such as E.coil. Staphylococcus aureus, salmonella,vibrio parahaemolyticus and etc,

Medical instrument

you can sterilize many kinds of bacterial on the surface of medical tools and prevent infection from the tools

Restaurants / feeding facilities

It solves the hygiene problems in the slaughter house by sterilizing floor and facilities and deodorizing smells of blood and rotten meats

Alkaline water ionizer Machine

1/ PH 7-10 drinking Alkaline water

2/ 1000LPH smallest production

3/ To making drinking Alkaline water with safe technology, doesn't add any chemical to Adjust PH , only by ionizer

Hydrogen rich ionizer machine

1/ to make hydrogen water, Dual-core electrolysis

2/PH 7-10 Ajustment

3/OPR depends on customer

4/Hydrogen content normally 1.2-1.6ppm, but we can customize.

Reverse Osmosis System

1/ purify raw water to be cleaning

2/ use dow or famous brand membrane

3/ used before hocl / alkaline water system

Q1：Why Choose US

A1: We made the industrial type alkaline water ionizer machine.the quality is the top in ionizer industrial. We do not need more maintenance cost, cause our machine is very stable.

Q2: Why your price is higher than others ?

A2: At first pls check the appearance of our machine, we are industrial type not commercial or household, our machine stability, life time, technology, configuration of the machine are not in the same level.

Q3: You also mentioned that you are the industrial Type not Commercial type, what is that meaning ?

A3: commercial type equipment with lost cost, so it can be accepted by people in the market, like the air conditioner, it is necessary for each family, but we only used a quarter of a year ; Likes the air conditioner in the supermarket, it will be used 80% in a year. Alternate use of cooling and heating modes, so the parts in side required high level, the life time should be longer, the quality should better, and required higher stability, Cause market is a public place, it is very important for them, but if you used a household machine into commercial usage, it will be broken soon, and the efficient is lower.
