Africa Automatic Compacted RO Water Purification System

To Africa Automatic Compacted RO Water Purification system / Drinking Water Treatment Filter

Brief Introduction :

There are three basic types of water treatment equipment. Reverse osmosis, ultrafiltration and nanofiltration. But different functions.

Reverse osmosis:It is the most common filter used in drinking water treatment. It mainly filters through reverse osmosis membrane and produces water with TDS less than 20. It can remove large particle, colloid, organic impurity, heavy metal ion, bacteria from water, and it can also remove more than 97% dissolved salt and solid.

UF(Ultrafiltration filter ): Normally used for the drinking water which is good source water quality,  Remove impurities. It can effectively remove suspended particles, colloids, bacteria, viruses and other tiny pollutants in the water, while retaining beneficial substances. While filtering impurities, its pore size is large enough to retain beneficial minerals in the water, such as sodium, potassium, magnesium, etc.

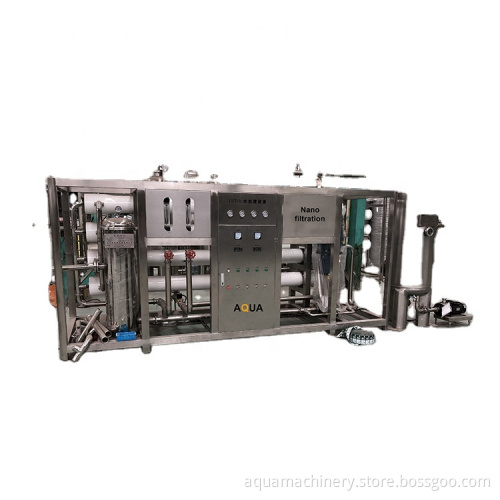

Nanofiltration : In addition to filtering out impurities, it can also retain some of the monovalent ions needed by the human body. This is a better choice when the water source quality is relatively good.

There are other filtrations such as seawater desalination and brackish water. The membranes used in them are different. It mainly depends on the customer's water quality report.

Recently Cases

Project Name: 2 stage RO system

Capacity : 10,000LPH

Country : Ghana

Pre-treatment :

1.First stage pretreatment( Sand Filter ): It can remove the suspended solids and gluten particles in the water, thus reduce the turbidity of water.

2.Second and Third stage pretreatment (Active carbon filter)  : It can remove the pigment, smell and a large number of biological organisms in the water
Soften the water.

RO treatment : The Reverse Osmosis device is an equipment to purify the saline water with the action of pressure difference of semi-permeable
membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Difference materials have different
osmotic pressures

Ozone sterlize and Ozone mixing tower: Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria.We use stainless steel 316 for ozone
tower,as it can resist Ozone very well than SS304,the working life will be much longer.

This is also an ozone sterilization coil type, which takes up less space and has better effects than mixing,

but the price is a bit more expensive.

Finished Water Tank :

Thickness : 3mm

Material : SUS 304

Volume : 10,000L

 Our water treatment system includes these machines :

Alkaline water ionizer machine which used to make alkaline water PH 7-10

This is currently the safest method of producing alkaline water. No additives are added, only electrolysis technology is required.

Our Smallest size is 1000LPH, and our customer is from worldwide

Water Filling machine

Washing bottle, filling water into bottles, put the caps on bottle automatic

Our machine is higher stability, no need any labor to work.

5-10L Complete water bottling plant

Function is the same with small bottle water filling machine, but it is suitable for big size.

The below picture is from our customer in Mongolia, the filling speed is 600bph for 5L

Semi automatic blowing machine for 5L

To make PET bottles with 5L volume, the speed is 500-600pcs per hour

Stick lableing machine for 5L ( The customer's bottle is dented, so the labeling machine needs to be positioned for labeling )

Shrink wrapping machine  ( Pack 5L bottle as 2 x 2 packing type)
