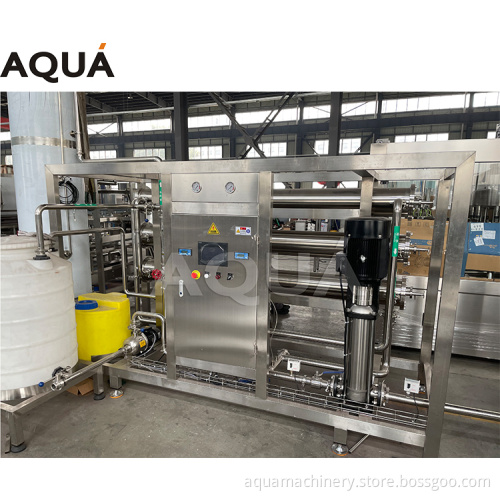

Large Scale RO Water Treatment Equipment & Drinking Water Purifier Systems

Item

name

material

filter element

function

1

booster pump

SUS304

/

To pump raw water into pre-treatment tanks2

2

Quartz sand filter

SUS304

Coarse sand

Medium sand

Fine sand

To remove the sediment, manganese, rust, colloid material, mechanical impurities, suspended solids

3

Active carbon filter

SUS304

active carbon

To remove the pigment , smell, a large number of chemical and biological organisms,residual value of water and pesticide pollution etc.

4

precision filter

SUS304

pp membrane

To filter the water before entering reverse osmosis and protect the RO membrane.

mainly remove the particle size 1-5 microns colloidal particles.

5

RO system

SUS304

RFP

8040/4040 menbrane

remove dissolved solids and bacteria, viruses, etc.

6

UV Sterilizer

SUS304

UV lamp

To kill the bacteria in water by physical reaction

7

Ozone

/

O3

To kill the bacteria in water by chemical reaction

8

Pure water storage tank

SUS304 0.8mm/3mm

/

To storage pure water

9

alikaline ionzier

stainless

/

get alikaline water and acid water, it is organized by America and japan, it is a safety way to get alikaline water.
