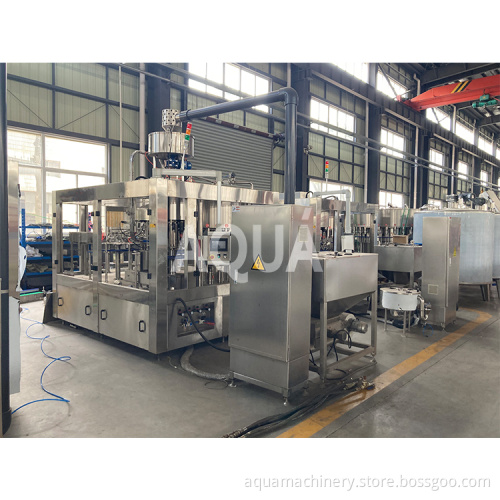

Complete Soda Water Production Plant / Soda Bottling Machine / Soda Water Plant

Soda Bottling Machine / Soda Water Plant

Model: CGFD32-32-8

Capacity: 8000BPH

Filling Type: Isobaric Filling

Bottle Size: 500ml-2000ml PET Bottle

Control: PLC+Touch Screen

Include: Air conveyor+Bottle Washer Filler Capper+Auto Cap Loader+ Filled Conveyor

Electric Configuration: SIEMENS / MITSUBISH /DANFOSS etc

All Material: SUS304/316 Food Grade

Motor: SEW /ABB Brand

Complete Line Solution

PRODUCT SPECIFICATIONS

Model	CGF 8-8-3	CGF 16-16-5	CGF24-24-8	CGF32-32-10	CGF 40-40-12
Rinsing nozzles	8	16	24	32	40
Filling nozzles	8	16	24	32	40
Capping nozzles	3	5	8	10	12
Output(@500ml)	2000BPH	3000BPH	6000BPH	8000BPH	12000BPH
Applicable bottle size	Diameter=50~108mm, H=170~340mm, 330~2250ml
Pressure of air source	0.7MPa	0.7MPa	0.7MPa	0.7MPa	0.7MPa
Air Consumption	0.25M3/min	0.8	0.8	0.8	0.8
Pressure of water	0.2-0.25MPa
Pressure of filling	0.2-0.3MPa
Power consumption	2.5kw	3.5kw	4kw	5.5kw	6.5kw
Machine body	SS304/S316
Machine size LWH	210018002400	230022002400	300022002800	400026002800	470029002800
Machine weight(kg)	2500	3000	4000	5000	6000

Product Overview

Water Treatment System -- Purify groudwater or tap water to be cleaning and drinking.

1.Include Raw water pump ,Sand filter, Active carbon filter, Sodium filter, Precison filter

2. Dosing system

3.RO / Hollow ultrafiltration device
4.UV sterilizer / Ozone sterilizer

5. Storage Tank

Beverage Drink Mixing Machine -- Mixing CO2 with water and syrup,additives

1.Sugar melting tank+Sugar pump+Sugar filter

2.Blending tank+Sugar pump+Double filter
3.Cooling-water machine+Plate heat exchanger+Carbonated water generator
4.CIP cleaning system

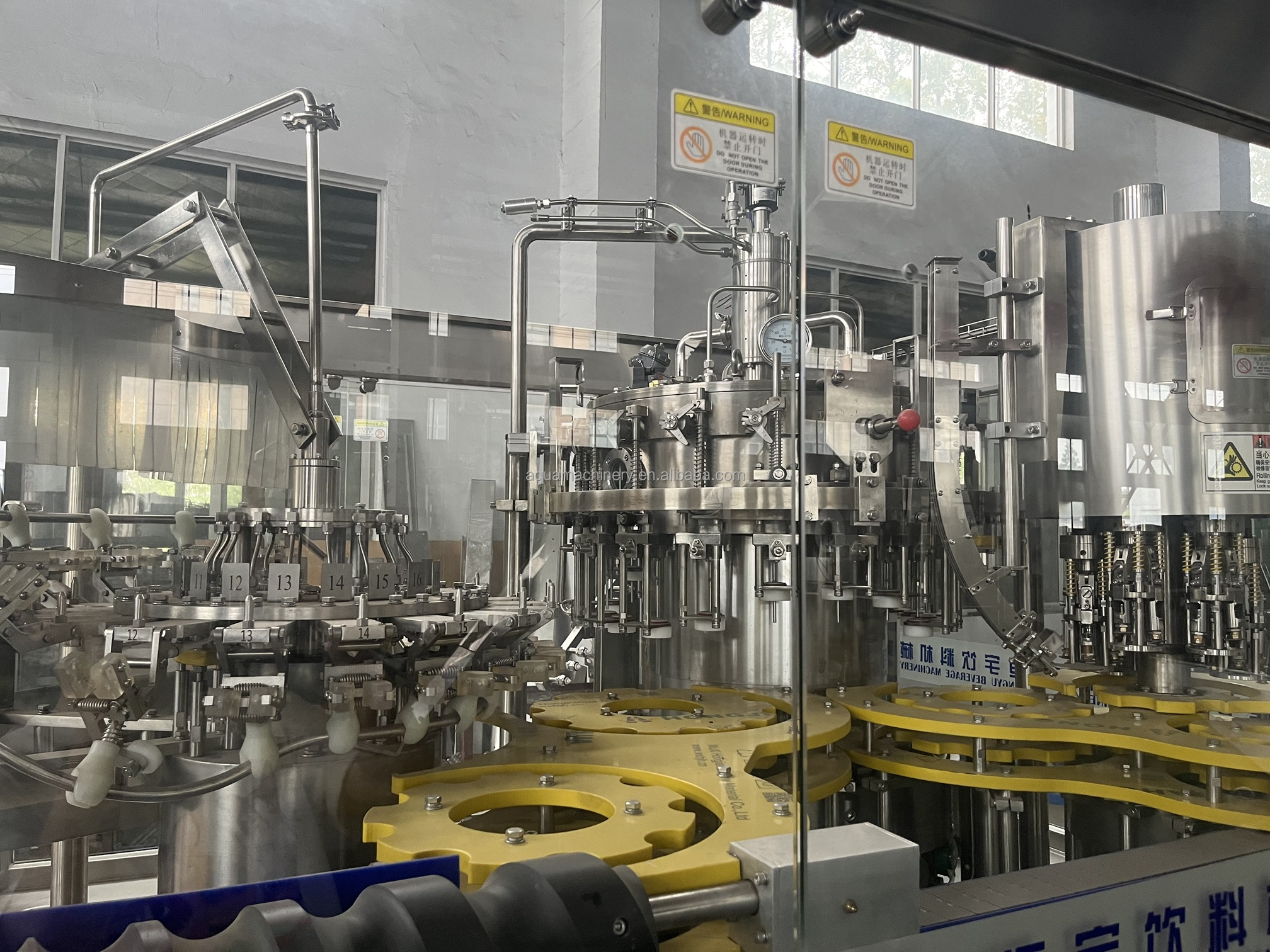

Soda Bottling Machine - Bottle Washing Filling Capping the bottled drinks

1.Compact structure, saving workshop space

2.All parts in contact with materials are made of high-quality stainless steel
3.The machine adopts imported electrical components with reliable quality
4.High filling speed and accurate liquid level control
5.PLC control, high degree of automation

Spraying Warm/Cool Tunnel -- soft drink adopt balance pressure filling which filling temperature aound 5, so after fill, it needs spraying tunnel for warming drink temperature for labeling and packing.

1.It was used for warming filled soft drinks to be room temperature

2.Smooth and reliable operation with low energy consumption

3. Two or Three temeprature controlling area

4. Steam Bolier heating water for spraying

PVC Shrink Labeling Machine -- put and cut label on bottles then shrinking label on bottle

1.Good stability and long service life

2.Simple structure can ensure low failure rate and simple maintenance.
3.Applicable to various bottle types: round bottle, square bottle, oval bottle, etc
4.Low cost blade, low maintenance cost of consumables

PE Film Shrink Wrapping Machine -- packing filled bottles as 4*6 or 3*4 etc.

1.Low cost of consumables can ensure low cost of finished products

2.Stable operation and fast labeling
3.Good packaging effect, tight shrinkage and beautiful appearance
4.Small size, short preheating time and power saving
