Product Overview

Aluminum Can Capping Sealing Machine / Soft Drink And Beer Can Filler Sealer Machine / Beer Canning Plant

Aluminum canning machine main for filling sealing soft drinks with CO2, the complete production line include:

Water Treatment System

Carbonated Drink Pre-Processing System (Mixing system-carbonated mixer system)

Automatic Can Washing Filling Capping Machine

Automatic Spraying Cooling Tunnel

Bottle Dryer

Automatic Can Labeling Machine

Laser Printer

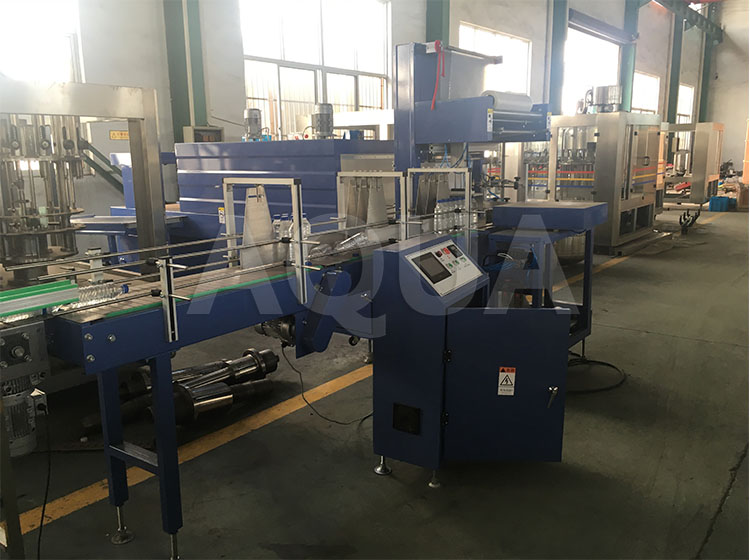

Automatic PE Film Shrink Wrapping Machine

PRODUCT SPECIFICATIONS

Model	BGD 12-1	BGD 18-6	BGD 24-6	BGD 32-8
Capacity(for 500ml)	2000-3000	3000-5000	6000-8000	8000-12000
Can shapes	Slim Round
Can date	Diameter : 50mm-115mm
Can height (mm)	160-320mm
Compressor air	0.3-0.7Mpa
Washing meidium	Aseptic water
Rinsing pressure	>0.06Mpa <0.2Mpa
Application	Aluminum Can Filler Sealer Machine / Beer Canning Filling Line
Total power (KW)	4.4kw	5.2kw	6.2kw	7.5kw
Overall dimensions	2.5*1.9m	2.8*2.15m	3.1*2.5m	3.8*2.8m
Height	2.3m	2.5m	2.5m	2.5m
Weight(kg)	3000kg	4500kg	6000kg	8500kg

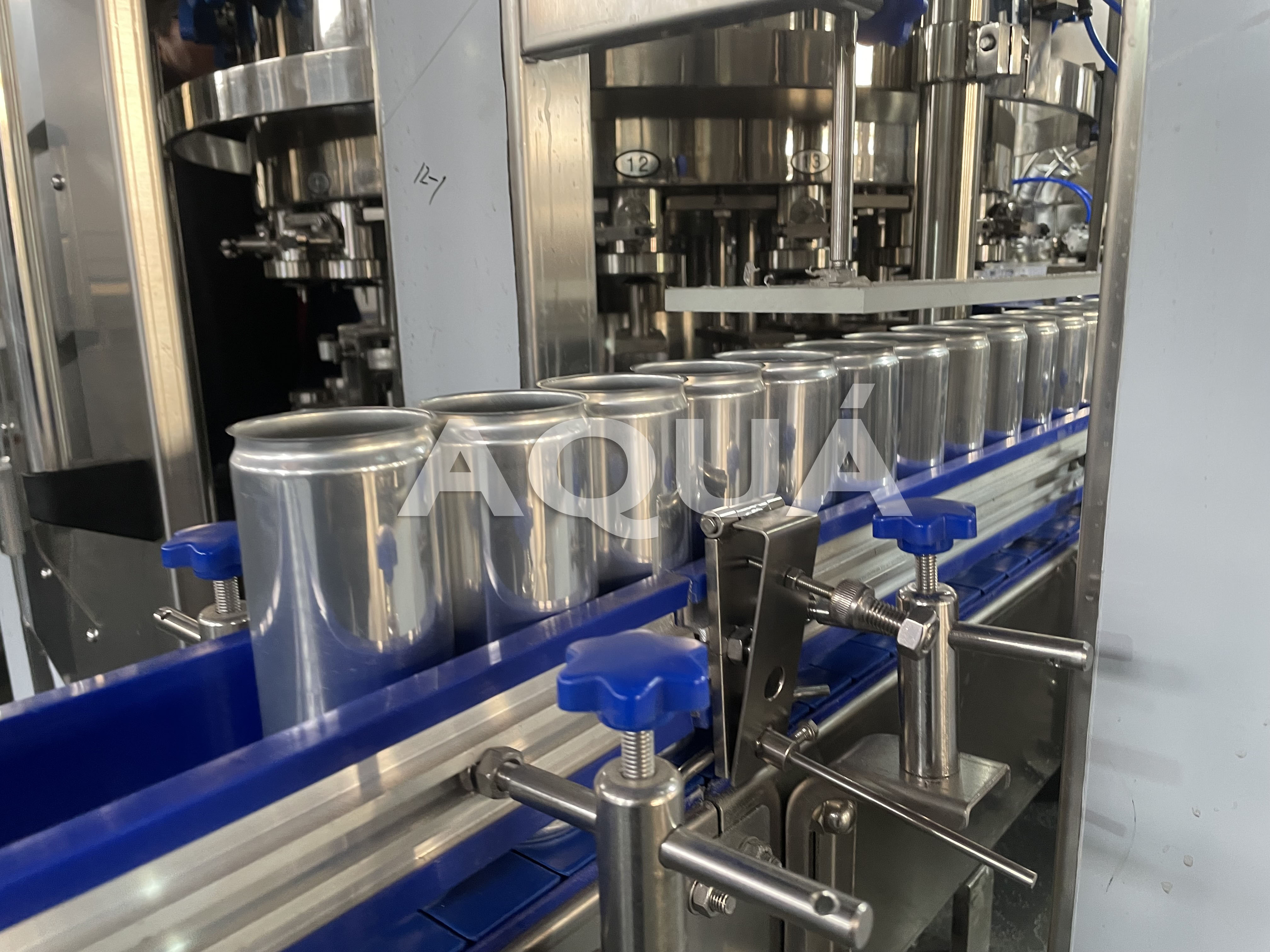

Can Feeding Conveyor

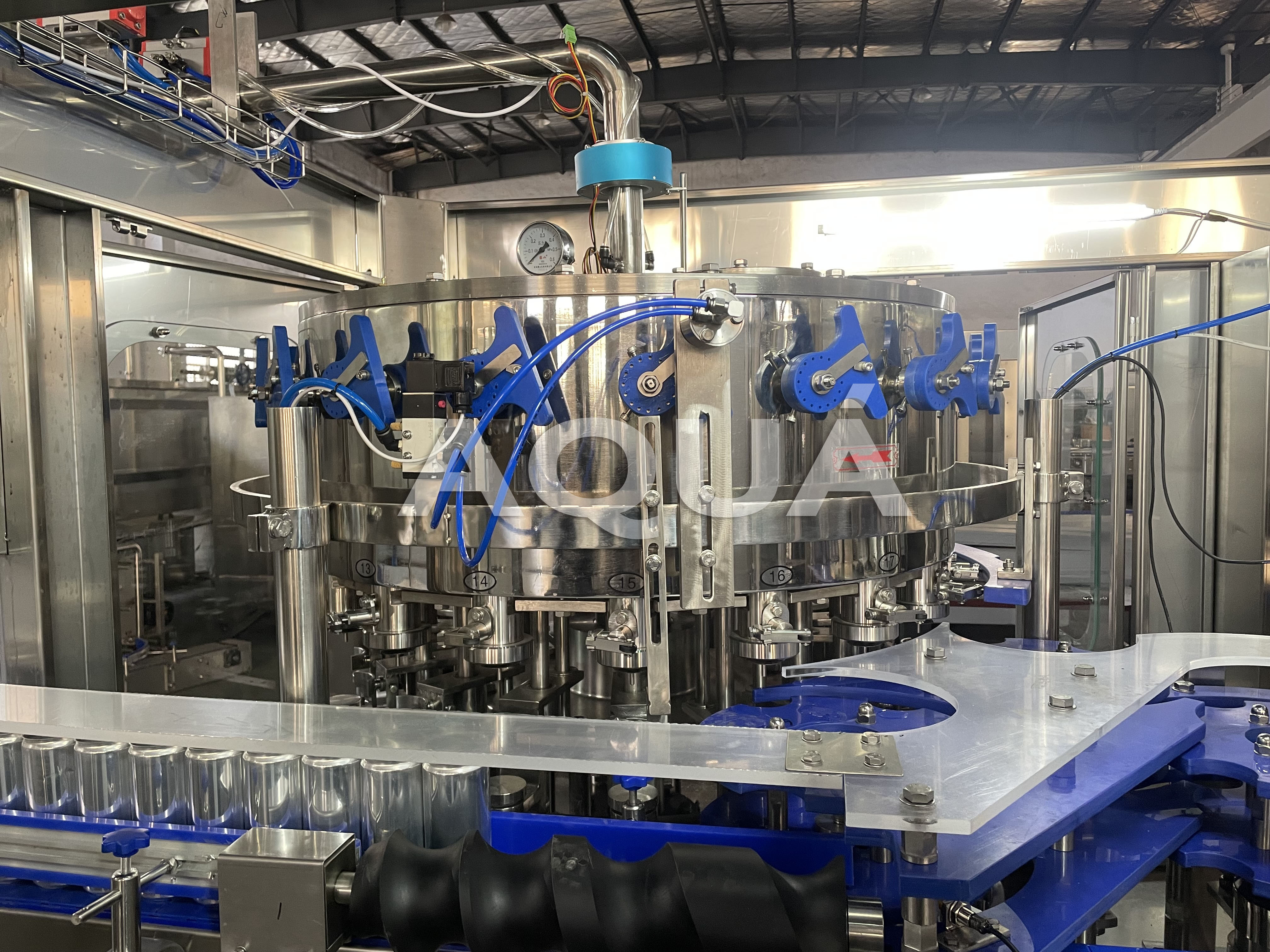

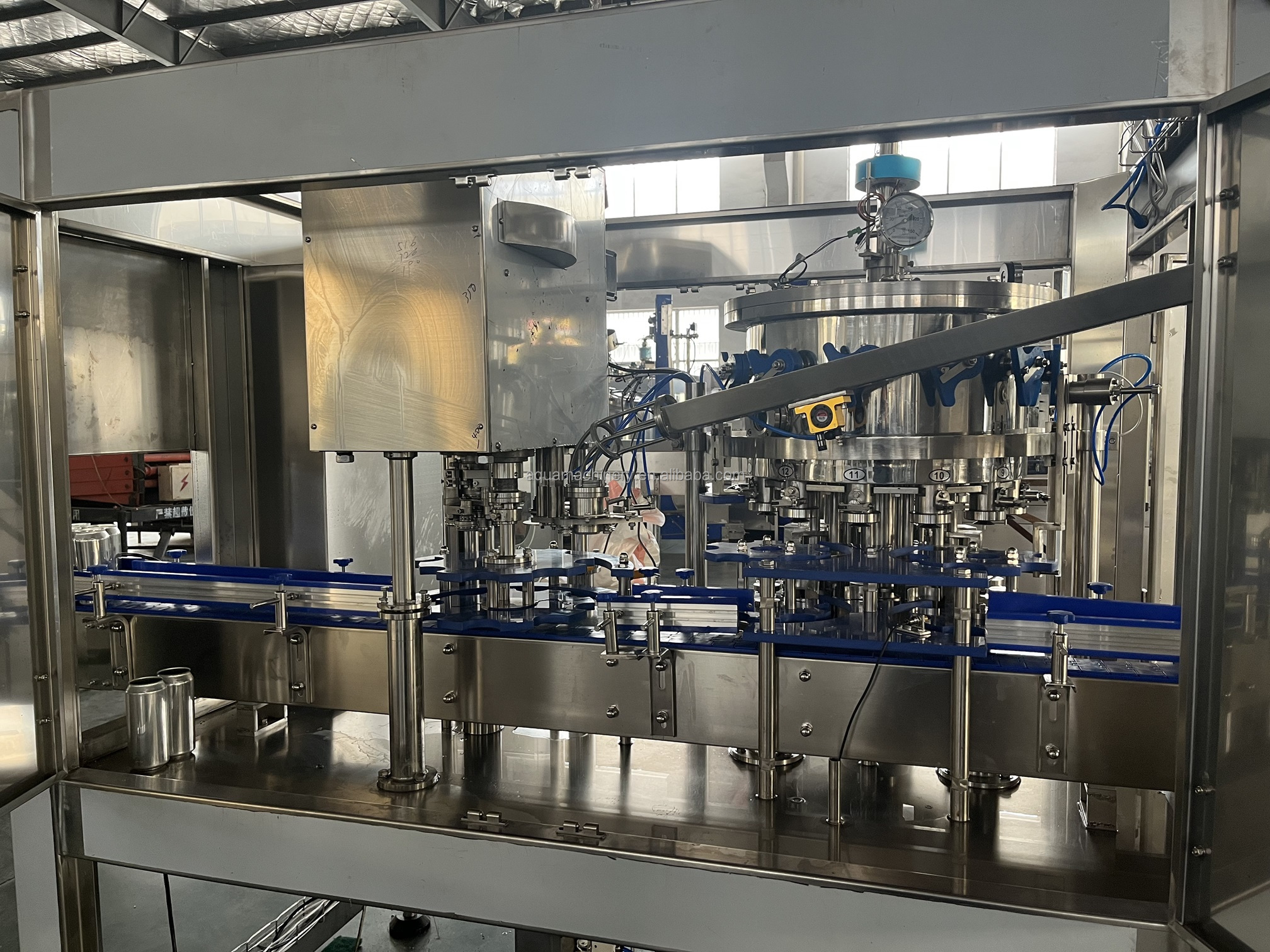

Can Filler Part

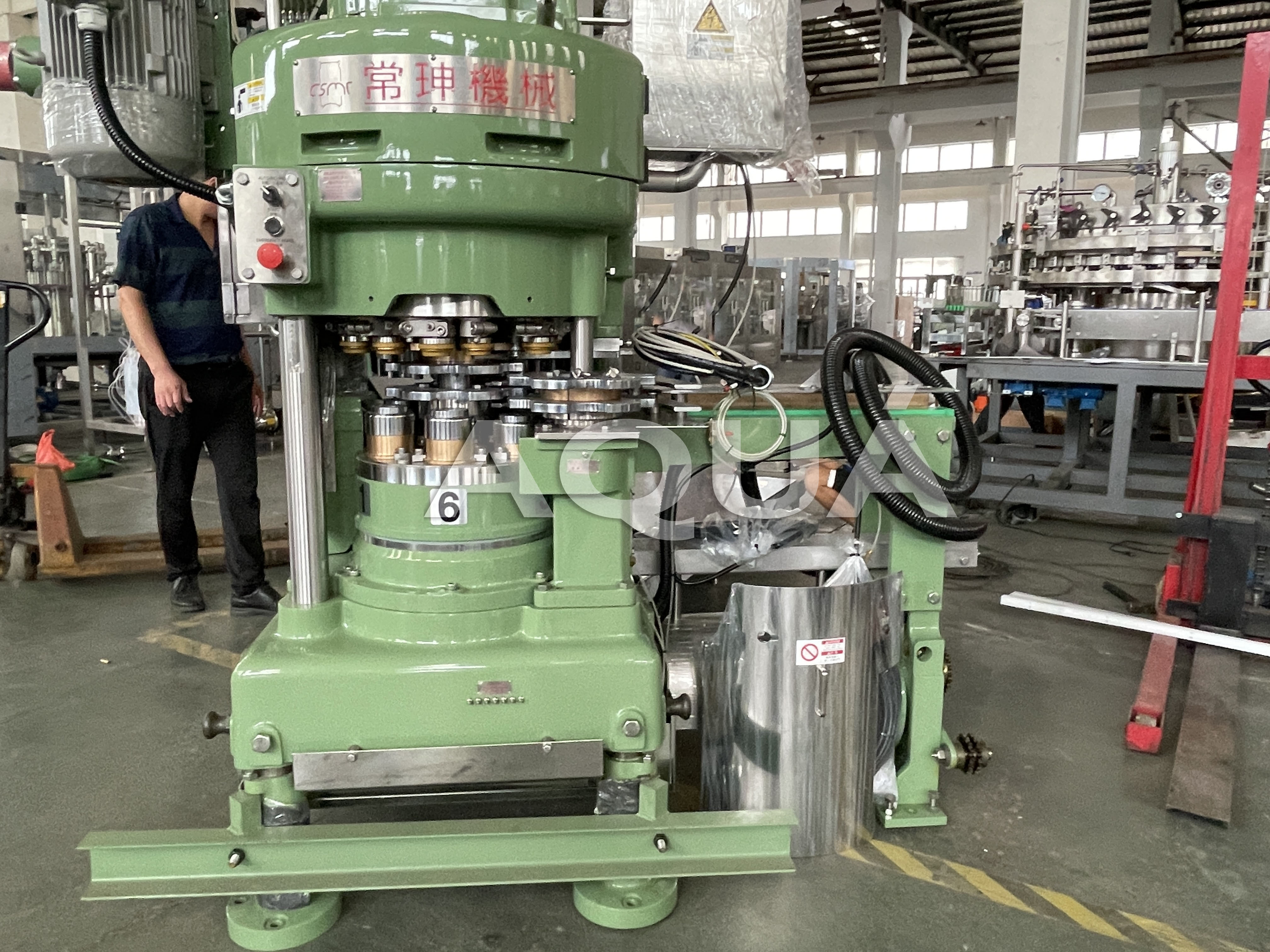

Can Sealer Part

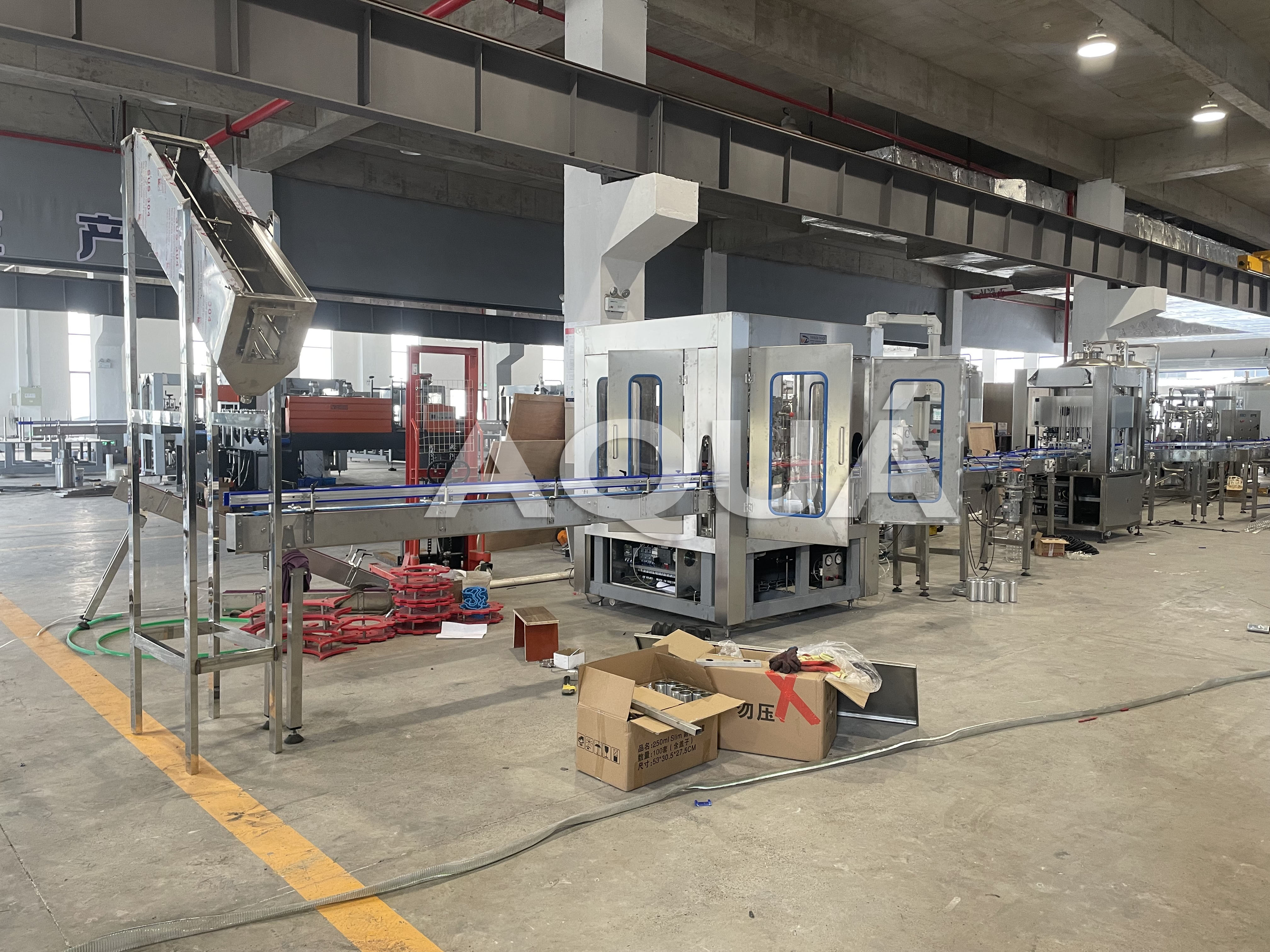

Complete Line Solution

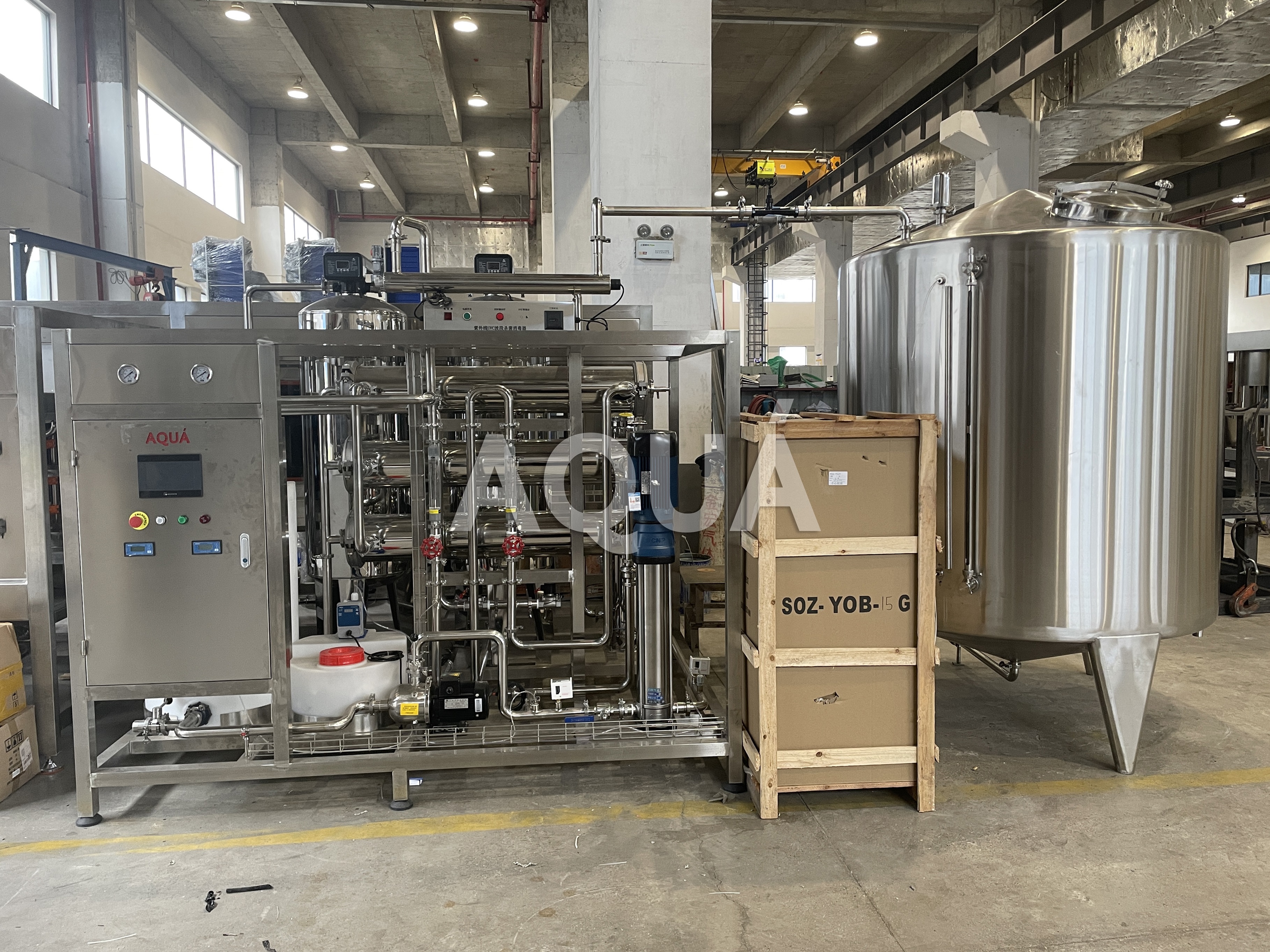

Water Treatment System

1/ According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.

2/ There has Reverse Osmosis System/ Hollow Fiber Filter System

3/ We also supply Alkaline Water System which make drinking water to be PH7-PH10.

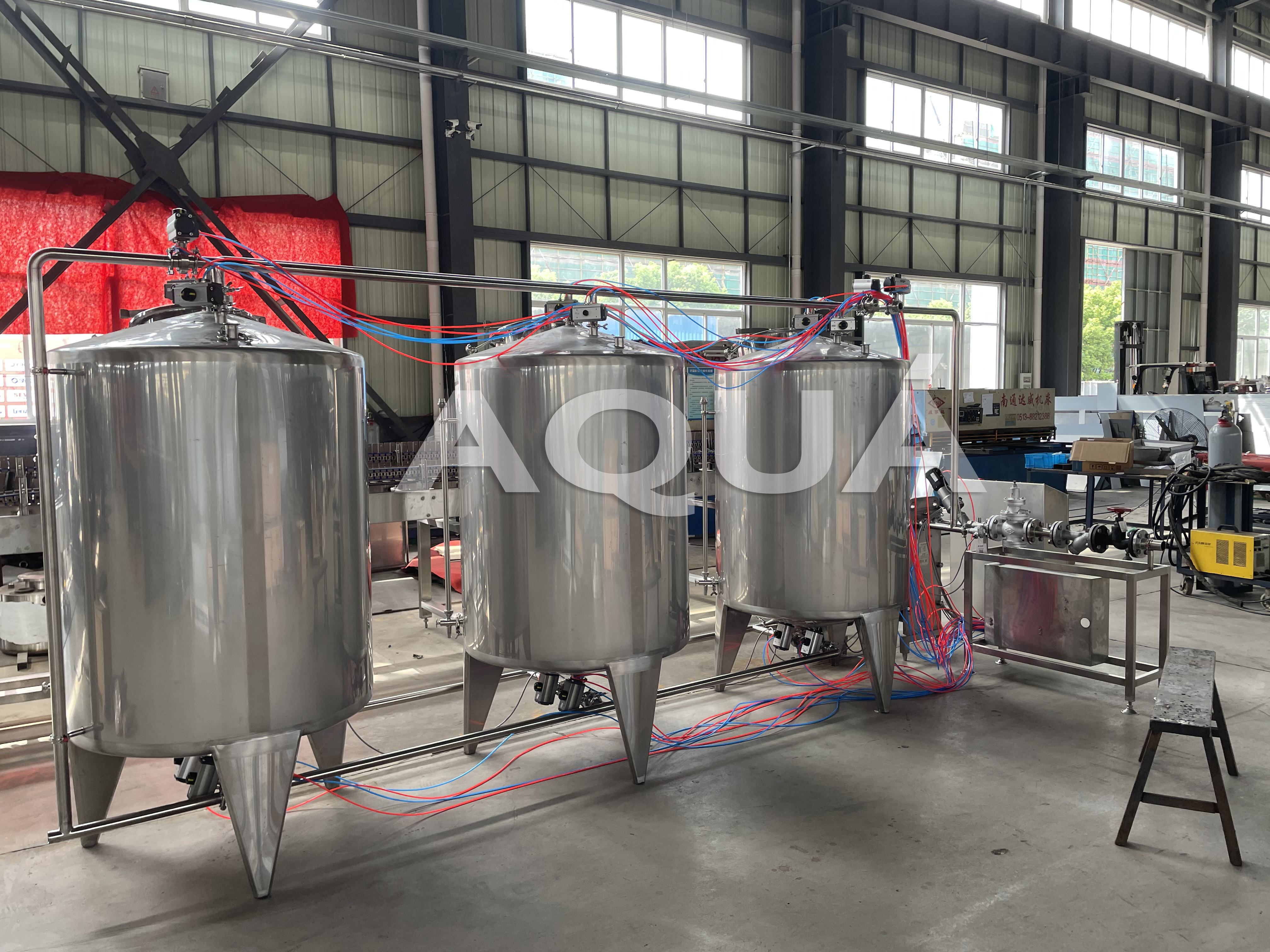

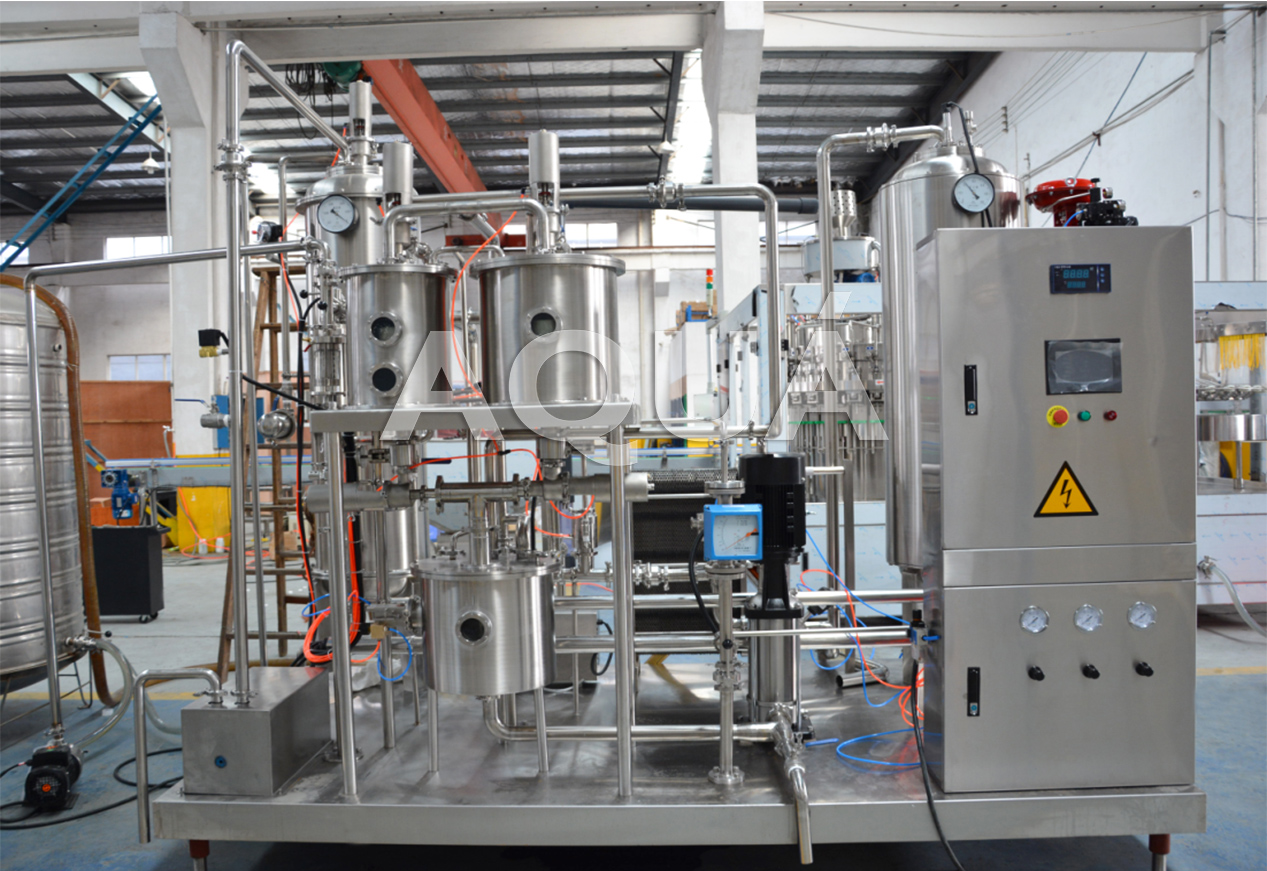

Carbonated Drink Mixing System

1/ Syrup melting system

2/ Beveage blending system

3/ Homogenizer & sterilizer

4/ Carbonation system

5/ Cip cleaning system

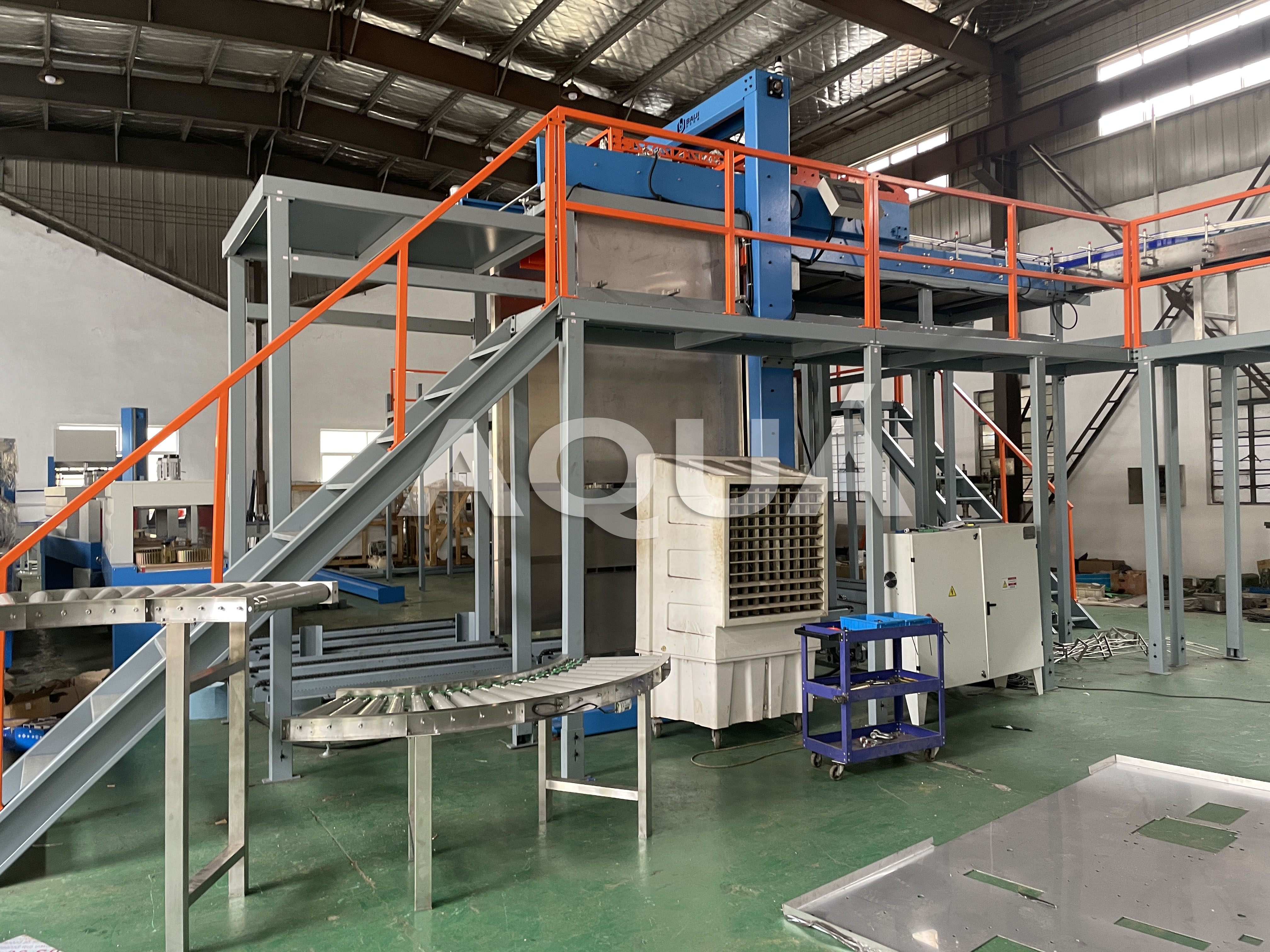

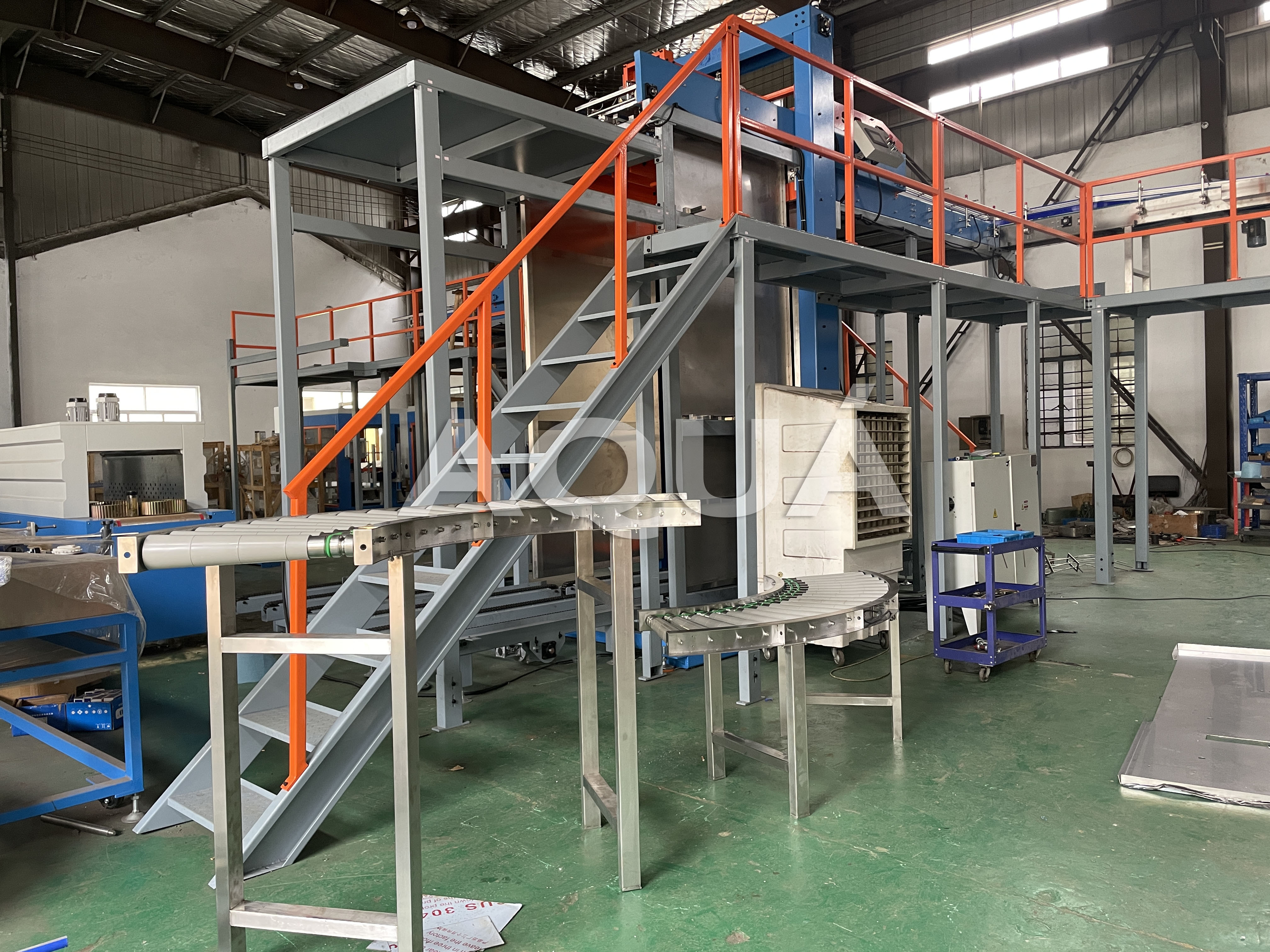

Can Depalltizier
1 - PLC control of the whole machine, fully automatic operation2 - Adapt to various stack types and bottle types, easy to adjust
3 - Segmented transmission with high-quality conveyor chain, the output section can be arbitrarily lengthened
4 - Using 304 material, the whole machine is beautiful and elegant

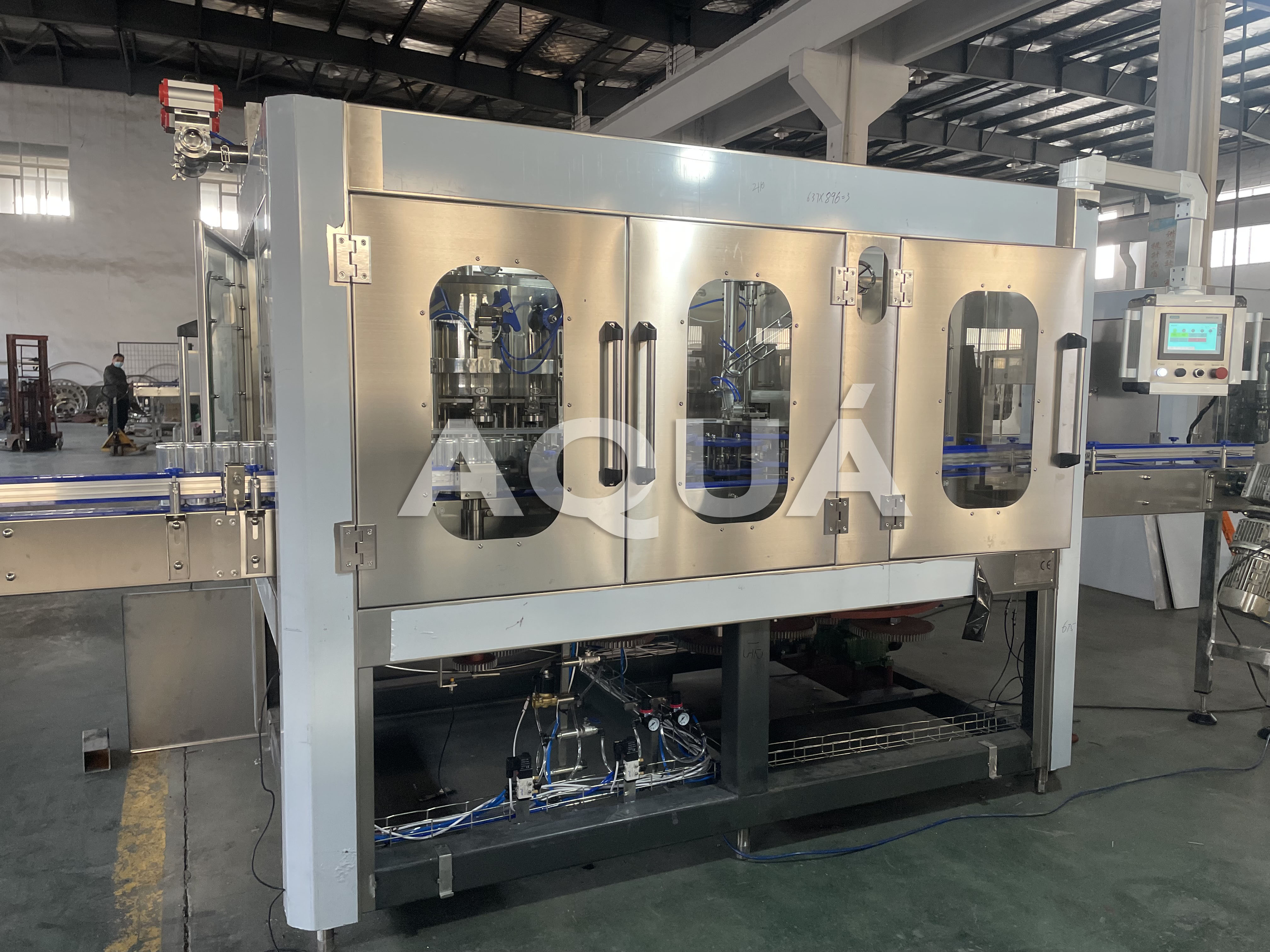

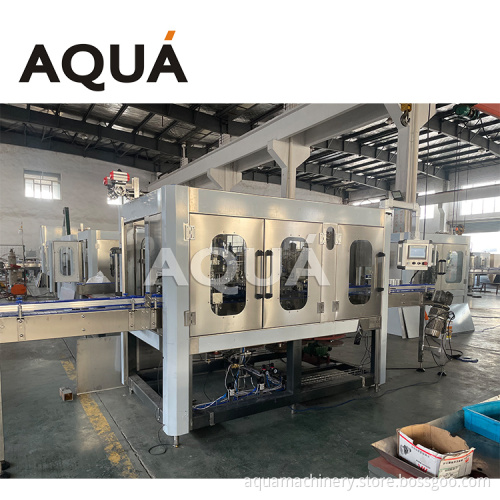

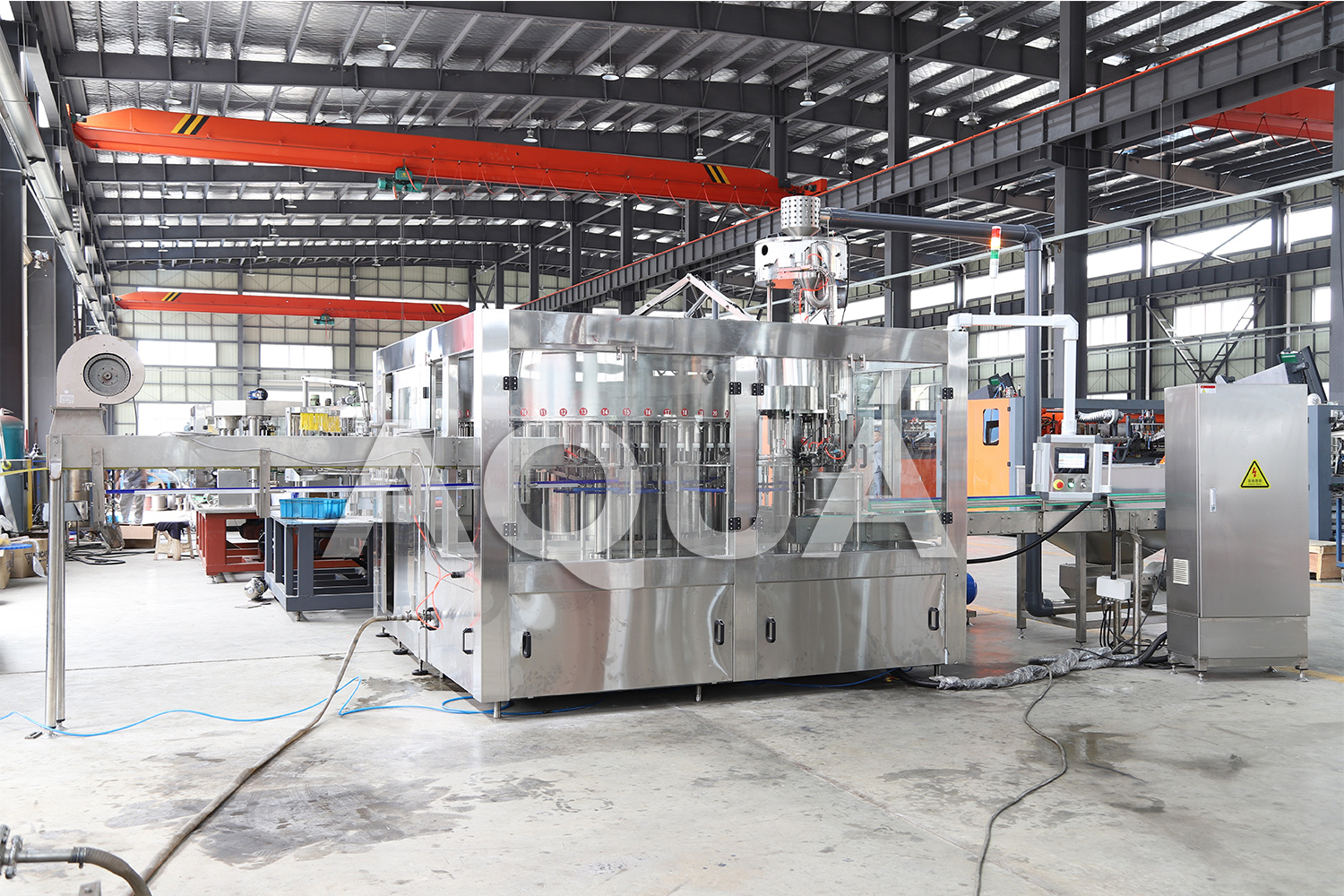

Aluminum Can Filler Sealer Machine / Beer Canning Machine

1/ Include feeding conveyor - washer filler capper - filled can out conveyor

2/ Fill from 200ml-550ml Cans with same neck size

3/ Filling temperature 3-5 degree

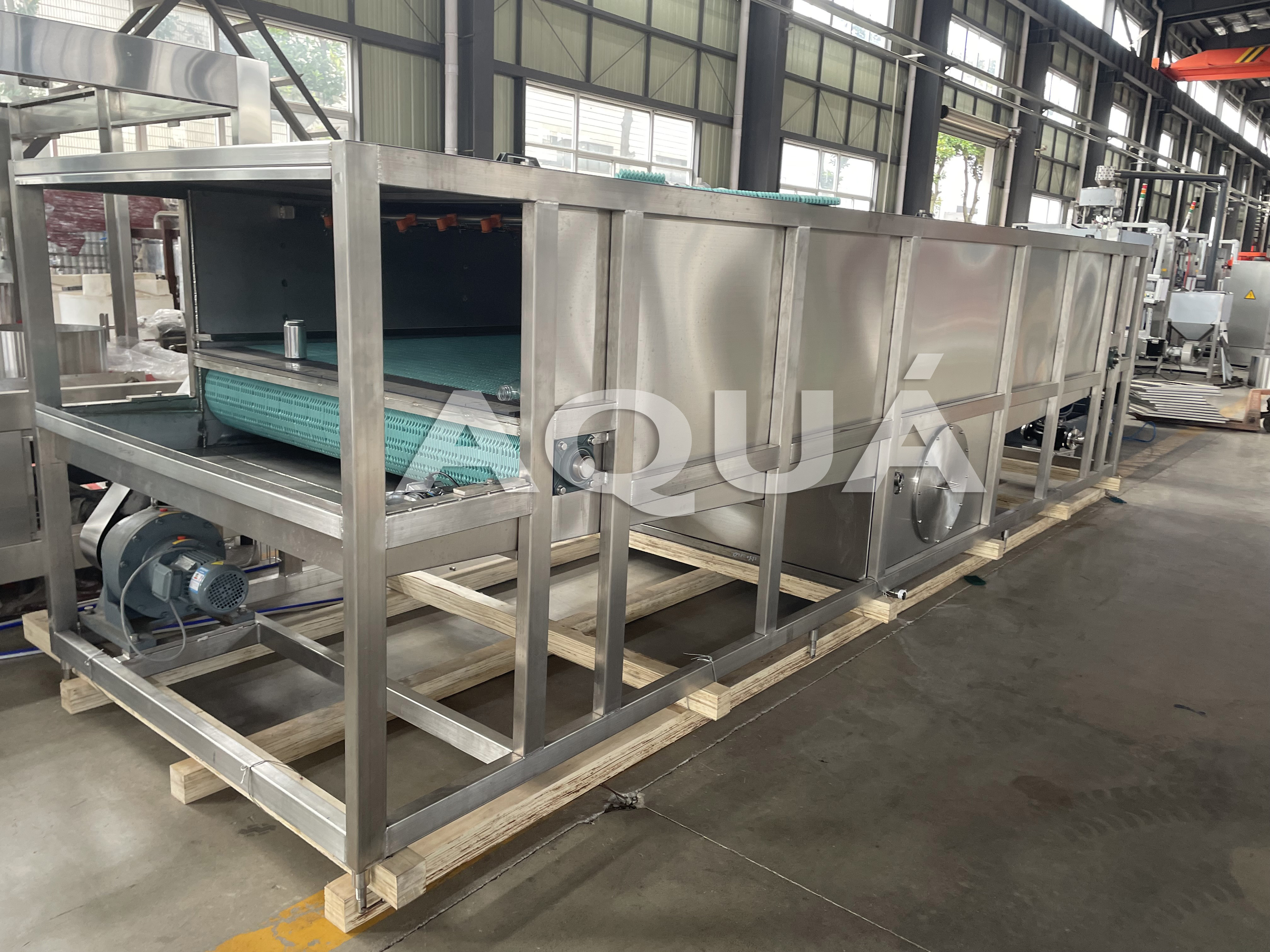

Spraying Warm Tunnel 1/ after filling sealing the beverage temperature is 3-5 degree, which easy happen water drop outside of bottle, it needs spraying warming tunnel to lift beverage temperature to be room temperature

2/ there has 2 temperature control area to get beverage be 35 degree

3/ this is necessary machine for soft drink line, which good for following labeling and packing.
