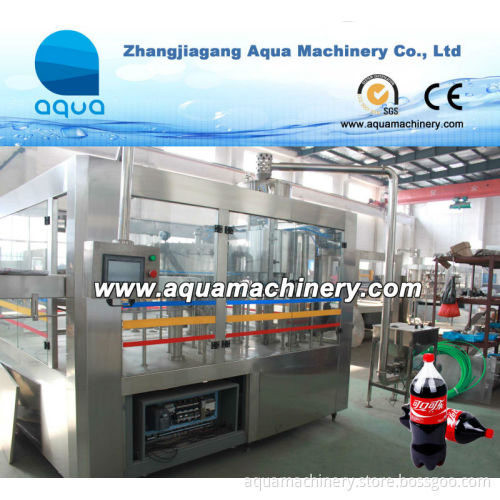

Automatic Carbonated Soft Drink Filling Machine For PET Bottles

Our Company Workshop 1. This is our filling machine workshop, it is mainly manufactured water /juice/ carbonated/edible oil filling machine/beverage mixing system,etc
This workshop is almost 1000m2 , you will see that there are many filling machine in it, so our manufacture time is within 30 working days if we received customers' payment, bottle and cap samples. workshop 2 This workshop is mainly used to manufactured 5 gallon water filling machine, water treatment, packing machine and our warehouse.
The workshop space is almost 1000m2. office This is our international trading office, our team is a clear division of labors, 7 sales for international  business, 1 person for after -service, 1 person for technician. the last for our equip delivery. Product Description 1. The wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3. The  machine specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Model	CGFD16-12-6	CGFD18-18-6	CGFD24-24-8	CGFD32-32-10	CGFD40-40-12
Capacity	2000BPH	3000BPH	6000BPH	10000BPH	12000BPH
Bottle Dates	300ML-2000ML PET BOTTLE  Diameter: 50-100mm      Height: 100-320mm
Cap Type	Plastic Screw Cap
Power	2.5kw	3.8kw	4.5kw	6.5kw	7.8kw
Machine Size	2.1*1.9*2.2M	2.1*2.0*2.4M	2.4*2.2*2.4M	3.0*2.6*2.4M	3.6*3.2*2.4M
Weight	2800KG	3500KG	4500KG	5500KG	7000KG

Detailed Images
Name: Water Treatment System  Brand: AQUA  Material: SUS304 Used for treatment raw water to be clean and drinking,the system incudes water pump/silica sand filter/active carbon filter/softner/precision filter/RO or Hollow fiber filter/Ozone sterilizer/UV Sterilizer/water tank.  Name: PET Bottle Blowing Machine
Brand: AQUA
Capacity: 2000-30000BPH
Main for blowing pet preforms to be PET Bottle,it includes air compressor/air tank/air dryer/water chiller/mould to make water bottles with automatic working. The machine can connect with filling machine by air conveyor. After blowed bottles will into filling machine directly.
Name: Carbonated drinks premixing system
Brand: AQUA
Material: SUS304
The system is for blending and mixing the syrup/water/additives/co2 together to make carbonated drinks to fill.
Name: Carbonated drinks mixing machine
Brand: AQUA
Original: SUS304
Carbonation Co2 with water and syrup with high level gas contain to reach standard.After this part,the drinks can be filled.
Name: 3 in 1 filling machine
Brand: AQUA
Original: SUS304
Washing filling capping 3 in 1 unit with automatic working,the empty bottles will be transferred to filling machine by air conveyor,then into 3 stations for working,the mixed carbonated drinks will be into filling tank by pipe for fill. All machine is automatic controlled by PLC and Operate Screen.
Name: sleeve labeling machine
Brand: AQUA
Original: SUS304
Put the PVC labels on the bottle automatic, then shrinking the label through shrink tunnel. the steam generator is used to supply steam to shrink tunnel
Name: PE film shrink wrapping machine Brand: AQUA
Original: SUS 304
Packing filled bottles by pe film to 4*6/3*4/2*3 type,after this machine,the bottles can be storaged for sale. If you wanna packing by carton box,there has carton box packing machine which is expensive.
Customer Visiting Machine Manufacture Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Packing & Delivery

Packaging
Size	20GP/40GP/40HQ/LCL
Weight	BY ORDER
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
