Small Scale Soft Drink Water Filling Machine For Soda Water

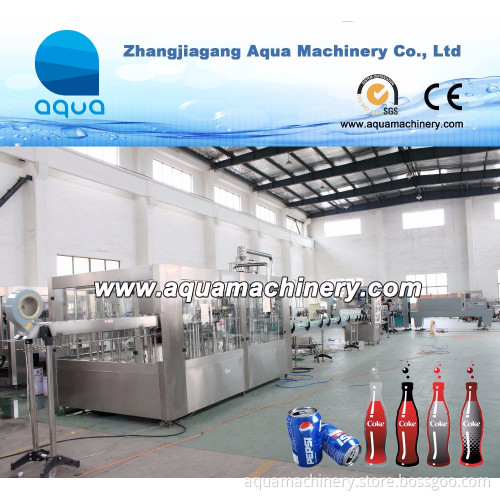

Our Company Workshop 1. This is our filling machine workshop, it is mainly manufactured water /juice/ carbonated/edible oil filling machine/beverage mixing system,etc
This workshop is almost 1000m2 , you will see that there are many filling machine in it, so our manufacture time is within 30 working days if we received customers' payment, bottle and cap samples. workshop 2 This workshop is mainly used to manufactured 5 gallon water filling machine, water treatment, packing machine and our warehouse.
The workshop space is almost 1000m2. office This is our international trading office, our team is a clear division of labors, 7 sales for international  business, 1 person for after -service, 1 person for technician. the last for our equip delivery. Machine Manufacture Product Description 1).Used to fill PET bottle carbonated beverage such as Coca-Cola, Pepsi-Cola,Sprite, Seven-Up, gas containing alcohol/juice and so on.

2). This Filling Machine has the functions of bottle washing, carbonated beverage filling, and bottle capping. This design reduce the time of liquid contact with outside. It improve the sanitation condition, increase the production capacity and economic efficiency.

3). It adopts hanging type conveying bottle structure to make changing different bottle sizes with less time and more convenient.

4).It uses high quality food grade stainless steel material. All the material contact with liquid is Stainless Steel 304 (& stainless steel 316L according to customer's demands).

5).The whole machine is equipped with advanced PLC controlling system. Key electric elements is from international well-known brand such as MITSUBISHI, OMRON,SCHNEIDER.

6). This Filling Machine series can fill carbonated beverage from 1000bph to 20000bph.

Model	CGFD16-12-6	CGFD18-18-6	CGFD24-24-8	CGFD32-32-10	CGFD40-40-12
Capacity	2000BPH	3000BPH	6000BPH	10000BPH	12000BPH
Bottle Dates	300ML-2000ML PET BOTTLE  Diameter: 50-100mm      Height: 100-320mm
Cap Type	Plastic Screw Cap
Power	2.5kw	3.8kw	4.5kw	6.5kw	7.8kw
Machine Size	2.1*1.9*2.2M	2.1*2.0*2.4M	2.4*2.2*2.4M	3.0*2.6*2.4M	3.6*3.2*2.4M
Weight	2800KG	3500KG	4500KG	5500KG	7000KG

Detailed Images
Name: Water Treatment System  Brand: AQUA  Material: SUS304 Used for treatment raw water to be clean and drinking,the system incudes water pump/silica sand filter/active carbon filter/softner/precision filter/RO or Hollow fiber filter/Ozone sterilizer/UV Sterilizer/water tank.  Name: PET Bottle Blowing Machine
Brand: AQUA
Capacity: 2000-30000BPH
Main for blowing pet preforms to be PET Bottle,it includes air compressor/air tank/air dryer/water chiller/mould to make water bottles with automatic working. The machine can connect with filling machine by air conveyor. After blowed bottles will into filling machine directly.
Name: Carbonated drinks premixing system
Brand: AQUA
Material: SUS304
The system is for blending and mixing the syrup/water/additives/co2 together to make carbonated drinks to fill.
Name: Carbonated drinks mixing machine
Brand: AQUA
Original: SUS304
Carbonation Co2 with water and syrup with high level gas contain to reach standard.After this part,the drinks can be filled.
Name: 3 in 1 filling machine
Brand: AQUA
Original: SUS304
Washing filling capping 3 in 1 unit with automatic working,the empty bottles will be transferred to filling machine by air conveyor,then into 3 stations for working,the mixed carbonated drinks will be into filling tank by pipe for fill. All machine is automatic controlled by PLC and Operate Screen.
Name: sleeve labeling machine
Brand: AQUA
Original: SUS304
Put the PVC labels on the bottle automatic, then shrinking the label through shrink tunnel. the steam generator is used to supply steam to shrink tunnel
Name: PE film shrink wrapping machine Brand: AQUA
Original: SUS 304
Packing filled bottles by pe film to 4*6/3*4/2*3 type,after this machine,the bottles can be storaged for sale. If you wanna packing by carton box,there has carton box packing machine which is expensive.
Customer Visiting Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Packing & Delivery Related Products Bottled Water Filling Machine 91.8% Response Rate 5 Gallon Water Filling Machine 91.8% Response Rate Cup Water Filler Sealer Machine 91.8% Response Rate
