Maquinas Automáticas de Llenado de Agua y Botellas de Agua

maquina automtica de llenado de agua / maquinas de botellas de agua

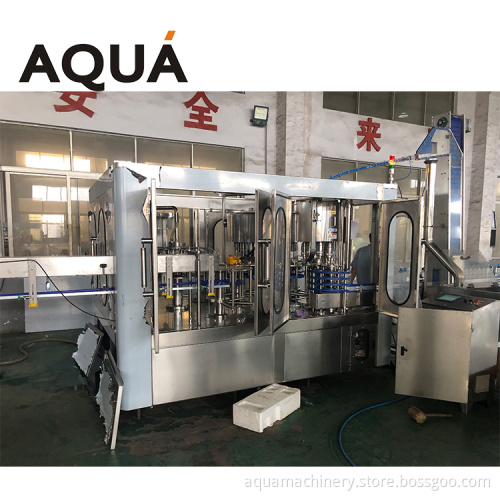

maquina automtica de llenado de agua / maquinas de botellas de agua  --  working process

1.Using the wind sent access and move wheel in the bottle directly connected technology;Canceled screw and conveyor chains,this enable the change the bottle-shaped become easier.

2.Bottles transmission adopt clip bottleneck technology,bottle-shaped transform not need to adjust the equipment level,only change relater the curved plate,wheel and nylon parts is enough.

3.The specially designed stainless steel bottle washing machine clip is solid and durable,no touch with the screw location of bottle mouth to avoid secondary pollution.

4.High-speed large gravity flow valve filling valve,filling fast,filling accurate and no liquid lose.

5.Spiraling decline when output bottle,transform bottle shape shape no need to adjust the height of conveyor chains.

6.Host adopt advanced PLC automatic control technology,the key electrical components from famous company such as Japan,France Schneider

Washing Part

-- Empty bottles are conveyed to the bottle washing machine with air conveying system through bottle entering spider .

-- The bottle will turn up 180 ---washing bottle ----dropping water –bottle turn up 180 ,the bottle mouth is upward .

-- The liquid contact parts all use SUS304 material

Filling Part

-- The bottle is carried to the filling machine through transferring spider and settle down at the part of bayonet of bottle mouth of the filling machine .

-- And it switches with the filling valve. If there is a bottle ,the filling begins .If there is not a bottle , the valve closes.

-- No bottle no filling

Capping Part

-- After the filling ends, the filled bottle is carried to the cap screwing machine through the transferring spider of the work table of the cap screwing machine .

-- The capped bottle is conveyed to the next process (equipment) with the bottle exiting spider through the exhaust bottle belt.

-- No bottle no capping

Cap Loader with control cabinet

Flow Chart of maquina automtica de llenado de agua / maquinas de botellas de agua

Water Purification Plant

 PET Bottle Blowing Machine

-- Blowing PET preform to be empty PET bottle for filling

Automatic Labeling Machine

-- PVC Shrink Labeling Machine / adhesive labeling machine / bopp hot glue labeling machine

 Automatic PE Film Shrink Wrapping Machine
