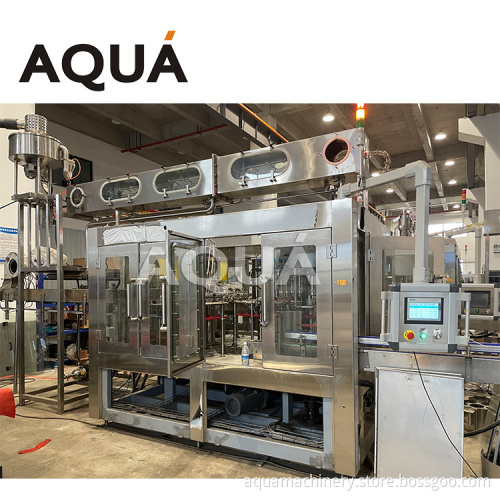

1L 750ml 600ml Mineral Water Bottled Filling Machine

Description of 1L 750ml 600ml Mineral Water Bottled Filling Machine

1. filling production: 1000-35000 bottles per hour.

2. bottle range 300-2000ml, 5-10L. 15-20L, will be different machine.

3. we supply complete line from

a.bottle blowing machine

( 99% filling machine supplier got from other factory, but we make it by ourselves, it is our advantage)

b.water purification system,

c.3 in1 filling machine,

d.labeling machine,

e.printer,

f. shrink wrapping machine / carton packing,

g. palletizer,

some of them are also purchasing from other supplier, we will be honeset to customers,

Technician parametesr of 1L 750ml 600ml Mineral Water Bottled Filling Machine

Model	DCGF 8-8-3	DCGF 18-18-6	DCGF24-24-8	DCGF32-32-10	DCGF 40-40-12	DCGF 50-50-15
Rinsing nozzles	8	18	24	32	40	50
Filling nozzles	8	18	24	32	40	50
Capping nozzles	3	6	8	10	12	15
Output(@500ml)	1000BPH	3000BPH	5000BPH	8000BPH	12000BPH	15000BPH
Applicable bottle size	Diameter=50~108mm, H=170~340mm, 330~2250ml
Pressure of air source	0.7MPa	0.7MPa	0.7MPa	0.7MPa	0.7MPa	0.7MPa
Air Consumption	0.25M3/min	0.8	0.8	0.8	0.8	1
Pressure of spraying water	0.2-0.25MPa
Consumption of rinsing water	1T/H	1.2T/H	1.2T/H	2T/H	2.2T/H	2.5T/H
Pressure of filling	0.2-0.3MPa
Power consumption	2.5kw	3.5kw	4kw	5.5kw	6.5kw	8kw
Machine body	SS304
Machine size(LWH,mm)	210018002400	230022002400	300022002800	400026002800	470029002800	510048003000
Machine weight(kg)	2500	3000	4000	5000	6000	7500
PLC	Japan Mitsubishi
