Small Factory Aseptic Mineral Water Filling Machine Proudction Plant

Our Company COMPANY PROFILE:  Located in Zhangjiagang City of Suzhou, It is nearby to shanghai port and wuxi airport, it is eary to ship and customers visiting.
AQUA-Filling provides various technical services to help users design equipment layout, answer users' consultation, train users' staff and provide practical operation guidance.

Product Description Product Application 1. Our machine is used to package juice or tea or other hot drinks.the filling temperature is normally 80-85 degree, most of machines are suitable for 300-2000ml PET bottle . 2.Our factory can supply 1000-30000 bottles per hour, customers can choose according this. 3.The machine adopts  PLC control and all of the electric are famous brand, such as Siemens, Omron, Schneider etc.

Parameters：
Model	CGF 8-8-3
Capacity	2000 bottles per hour
Bottle type	PET bottle-screw cap
Bottle Diameter	Φ50~Φ90mm
Bottle Height	150~310mm
Suitable bottle specification	150-2000ml avaliable with one machine
Washing pressure	3-7 kg/cm2
Motor power	2.2kw
Size	1950*1650*2100 mm
Weight	2000kg

Main Features 1. The  filling machine is automatic.It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.
2. Washing part in the bottle water machine is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
3. Filling part in the water filling machine is composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.
4. Capping part in this water filling machine is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Detailed Images A.Machine parts Name: washing part  Brand: Aqua Original: China 1.  All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
2. 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
3. 304 stainless steel washing pumps
B. Machine Parts Name: Filling Part
Brand: Aqua
Original: China
1.Filling temperature is adjustable.
2.Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.
3.All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4.No bottle no filling
C.Machine Parts Name: capping part
Brand: Aqua
Original:  China
1.Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2.All 304stainless steel construction
3.No bottle no capping,
4.Automatic stop when lack of caps
D. Machine Parts Name: Conveyor
Brand: Aqua
Original: China
The conveyor used to delivery the bottled drink to sleeve labeling machine. the exact length depends on customers' factory size. Our Service Our service .  • Well-trained & experienced staff are to answer all your inquiries in English and Chinese
4 hours for engineer response (all services part 5days in customer hand by Intl' courier).
• 12 Months guarantee and life-long technical support.
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions
Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	we use wooden case package outside, PE film package inside, standard exported package, or based on customer's requirement.

Related Products Sleeve labeling machine 91.8% Response Rate shrink wrapping machine 91.8% Response Rate semi-automatic blwoing machine 91.8% Response Rate FAQ 1) Can your factory provide the whole plant from A to Z?

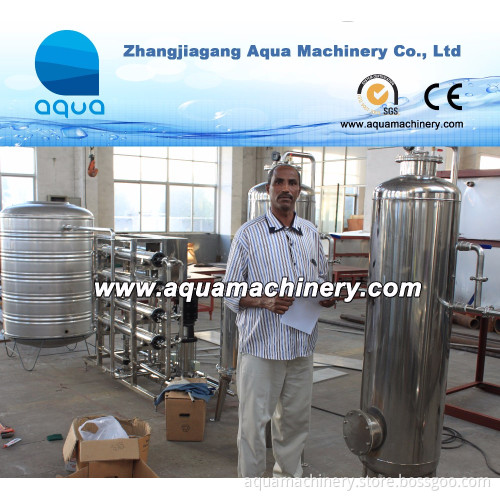

A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.
3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.

4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect

5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)

6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.
