Automatic machine for drinking water plant

Product Description Automatic machine for drinking water plant
The full line includes water treatment system to treat raw water to be cleaning and drinking, then filling labeling and packing filled bottles for sale. Whole line will be worked by automatic control system. It can fill from 300ml-2000ml pet bottle with 2000bph-36000bph.

Model	Capacity (500ML)	Suitable bottle diameter	Motor Power (kw)
CGF12-12-5	4000BPH	φ=50-108 MM   H=170-340 MM  330ml-2.25L	0.75KW
CGF18-18-6	6000BPH		1.1KW
CGF24-24-8	8000BPH-10000BPH		1.5KW
CGF32-32-10	12000BPH		2.2KW

Main Features 1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Detailed Images
Name: Water Treatment System  Brand: AQUA  Material: SUS304/SUS316  The water treatment system includes HF filter and Reverse Osmosis System, which used for treatment customer raw water to be cleaning and drinking, The system includes raw water pump/active carbon filter/silca sand filter/soft exchanger/Hollow fiber filter or Reverse osmosis system/precision filter/UV or Ozoner sterilizer / Water tank

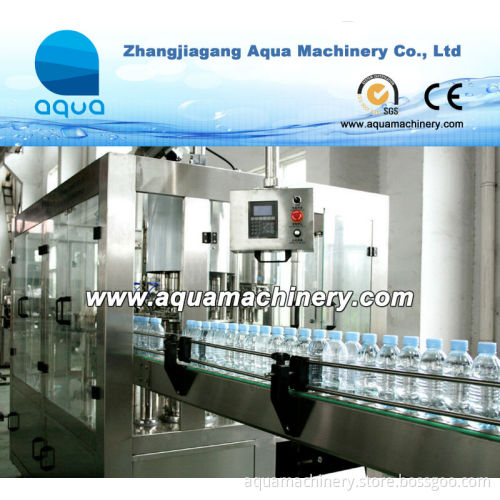

Name: Automatic Washing Filling Capping Machine
Brand: AQUA
Capacity: 2000BPH-30000BPH
The machine includes washer filler capper 3 functions to fill drinking water into pet bottles. It includes empty bottle air conveyor/washer filler capper/filled bottle out flat conveyor/Cap loader. It;s main for filling drinking water. The machine was controled by Touch Screen with good brand PLC.

Name: Automatic PVC Shrink Labeling Machine
Brand: AQUA
Capacity: 5000BPH-10000BPH
The machine will connect with filling machine,after filled water,the bottle will be through this machine to shrink pvc labels on bottle body by steam generator. The machine includes shrink machine/shrink tunnel/steam generator. The machine will cut the label with right position.

Name: Automatic PE Film Shrink Wrapping Machine
Brand: AQUA
Capacity: 0-10 Pakage/Minute
After shrink the label on bottles,the bottles will get here for packing by PE film to be 4*6/3*4 etc packer. The machine includes bottle unscrambler/main machine/Control table/shrink oven. The machine connect with all machines by conveyor.
Our Company Workshop 1 : Bottled Water Filling And Packing Line Workshop 2: 3-5 Gallon Water Filling Line
Welcome To Zhangjiagang Aqua Machinery Co., LtdZhangjiagang Aqua Machinery Co., Ltd is specialized in bottled beverage production and packing equipment . We are one of the companies engaged in manufacturing liquid filling and packing equipment in China. We can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.
Aqua-Machinery main business are : Bottled Liquid Filling Machine(Water/Juice/Carbonated Drinks/Edible Oil/Milk/Alcohol Drinks). Barrel Water Filling Equipment(3-5 Gallon).Shrink Labeling Machine/Stick Labeling Machine/Hot Glue BOPP Labeling Machine.PE Film Shrink Wrapping Machine. Bottle Blow Moulding Machine/ Preform Cap Injection Machine/ Water Treatment System Etc Filling And Packing Production Line.

Now our machines are exported to overseas with good feedback, we will do our best reach customer's requirement. Customer Satisfaction is our Service Purpose.
Custome Visit Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Packing & Delivery

Packaging
Size	20GP/40GP/40HQ By order
Weight	By order
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Workshop
Size	1500-1800M2
Workers	15-20
Supply	1/ Quote by customer requirements 2/ Pick up customer from airport 3/ Visiting our facotry 4/ Negotiation for price by customer detail requirements for machines 5/ Sign Contract 6/ Producing machines 7/ Invite customer come for testing 8/ Shipping after tested by customer
