ligne de production deau minerale

Product Description ligne de production deau minerale
The whole line used for filling mineral water into pet bottle,the whole line working process as below:
Raw water → Source water tank → Source water pump → Quartz sand → filter Active Carbon filter → PP sediment filter → RO main machine/Hollow fiber machine → Ozone sterilizer → Pure water tank →Filling System(lamp-checking+bottle dryer)→ Code printer → Bottle labeling machine →Bottle shrink packing machine The water treatment system will use SUS304 pipe to connect with filling machine for supplying water,after filling the conveyor will connect each machines to work. Whole line are automatic working. Main Features 1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Model	CGFA8-8-3	CGFA12-12-5	CGFA18-18-6	CGFA24-24-8	CGFA32-32-10
Washing Valves	8	12	18	24	32
Filling Valves	8	12	18	24	32
Capping Valves	3	5	6	8	10
Suitable Bottle Type	300ML-2000ML Round/Square PET Bottle
Bottle Diameter	Diameter 50-90mm Height 150-300mm
Washing Pressure	0.25
Air compressor	0.3-0.7
Voltage	380V/50HZ/3Phase Or By Order

Detailed Images
Name: Automatic Water Treatment System
Brand: AQUA
Material: SUS304
The unit is used for treatment raw water to be cleaning and drinking,it can be mineral water /pure water treatment system. The full filters includes:
Raw water pump-silica sand filter-active carbon filter-sodium exchange filter-precision filter-hollow fiber filter/Reverse osmosis system-UV sterilizer-Storage water tank.
Name: PET Bottle Blowing Machine
Brand: AQUA
Capacity: 800-10000BPH
The machine is used for blowing bottle preform to be empty pet bottles. It has semi-automatic and full automatic machines. It adopts Stretch Blowing System.

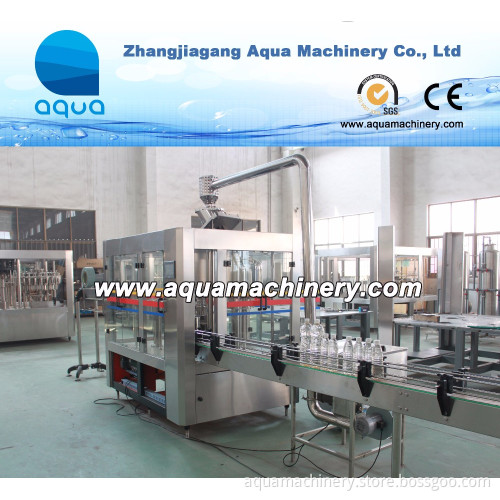

Name: ligne de production deau minerale Brand: AQUA  Capacity: 2000-30000BPH The machine includes washer filler capper 3 functions to fill drinking water into pet bottles. It includes empty bottle air conveyor/washer filler capper/filled bottle out flat conveyor/Cap loader. It;s main for filling drinking water. The machine was controled by Touch Screen with good brand PLC.

Name: Automatic PVC Shrink Labeling Machine
Brand: AQUA
Capacity: 4000-30000BPH
The machine will connect with filling machine,after filled water,the bottle will be through this machine to shrink pvc labels on bottle body by steam generator. The machine includes shrink machine/shrink tunnel/steam generator. The machine will cut the label with right position.

Name: Automatic PE Film Shrink Wrapping Machine
Brand: AQUA
Capacity: 0-20bag/min After shrink the label on bottles,the bottles will get here for packing by PE film to be 4*6/3*4 etc packer. The machine includes bottle unscrambler/main machine/Control table/shrink oven. The machine connect with all machines by conveyor.

Name: Buffer Conveyor
Brand: AQUA
Transfer Speed: As Filling Capacity
The flat conveyor is used for transfer filled bottles into labeling machine and packing machine,the conveyor type and meters will be mades as your factory layout,it can be 90 degree conveyor/2 lines conveyor etc. 2 Meters has one motor.
Factory Side Workshop 1 : Bottled Water Filling Packing Line Workshop 2: 5 Gallon Water  Filling Packing Line Customer Visiting Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Packing & Delivery

Packaging
Size	20GP/40GP/40HQ
Weight	BY ORDER
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
