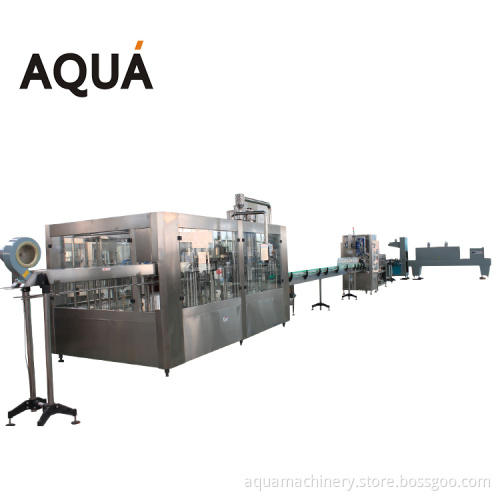

Turnkey Project: Ice Tea Processing and Hot Drink Filling Machine

Turnkey Project Ice Tea Processing Hot Drink Filling Machine

The whoe line can fill Juice/Tea into PET bottle/Glass bottle with automaticly working, it can fill from 300m-2000ml bottle with same cap diameter, the filling machine adopt hot filling type (85-90 degree).  The complete line includes:

A. Automatic Water Treatment System ( Reverse Osmosis System For Pure Water/Hollow Fiber Filter For Mineral Water)

B. Automatic PET Bottle Blowing Machine ( Blowing PET Prefroms to be empty PET Bottle)

C. Automatic Juice Pre-Mixing System (Pre-mixing and sterilizer syrup/co2/water and other additives)

D. Automatic 3 in 1 Juice Filling Machine ( Rinsing Filling Capping 3 in 1 into functions in one machine)

E. Automatic PVC Shrink Labeling Machine ( Shrink PVC Labels on bottles)

F. Automatic Ink Jet Printer (Put  date/time on bottle)

G. Automatic PE Film Shrink Wrapping Machine ( Packing filled bottles to be 4*6/4*5/3*4 etc by PE Film)

The following pictures are Complete Layout which for your reference :

Introducing - ice tea processing machine

Automatic Water Treatment System

-- All adopt food grade SUS304 material to manufacture,need customer supply raw water quality report

-- Includes Raw water tank/raw water pump/silica sand filter/active carbon filter/inhibitor dosing unit/precision filter/RO or Hollow fiber filter/UV Sterilizer/Ozone sterilizer/Ozone tower/Storage water tank/Pipe and Valves.

Automatic PET Bottle Blowing Machine

-- Used for blow pet prefroms to be empty PET bottle for filling.

-- We can make bottle mould as your bottle design(bottle layout)

-- Bottle blowing main machine/auto preform loader/high pressure and lower pressure air compressor/air tank/cooling dryer/air filter/bottle mould

Automatic Juice Pre-mixing System

-- The machine is used for mixing juice with syrup/water together, it 's necessary machine for making carbonated drinks.

-- The system includes many machines to mixing syrup/water/other additives,each machines connected by SUS pipe to supply mixed juice drinks to filling machine for fill.

Automatic 3 in 1 Juice Filling Machine

-- Rinser Filler Capper 3 functions in one unit (different capacity with different filler valves) with hot temperature 85-90 degree.

-- Includes empty bottle feeding air conveyor/rinser filler capper/auto cap loader/filled bottle out conveyor/PLC programe/Touch screen

Automatic PVC Shrink Labeling Machine

-- Main for Shrink PVC labels on bottle by steam.

-- Includes bottles transfer feeding conveyor/shrink labeling machine/shrink heat tunnel/steam generator/out conveyor

Automatic PE Film Shrink Wrapping Machine

-- Used for packing filled bottles to be 4*6/3*4/2*3 packer by PE film

Buffer Conveyor

-- In casef bottles overturned due to high capacity,it needs buffer conveyor for connect whole line

-- The buffer conveyor is confirmed by customer's factory layout (L*W*H)

                                                                               Welcome Zhangjiagang Aqua Machinery Co.,Ltd

Aqua Machinery is specialized in bottled beverage producton filling and packing machines,we supply turnkey project from A to Z type. We're one of the companies engaged in manufacturing liquid filling and packing equipment i China. We can provide turnkey services for customers from plant layout,equipment manufacture and production line setup to operator traning.

Aqua Machinery main business includes: Bottled liquid filling machine ( water/juice/carbonated drinks/edible oil/milk/alcohol drinks). 1-5Gallon Water filling machine. Shrink Labeling machine/hot glue labeling machine/sticker labeling machine. PE Film Shrink wrapping Machine. Bottle Blow Molding Machine. Prefrom Cap Injection Machine. Water Treatment System

One of part for our customers from overseas come our factory for visiting and testing their lines.

The parts of our workshop,our factory with 3800M2 area ( includes spare parts zone/processing zone/raw materials zone/finished products zone ) All materials we adopt is SUS304/SUS316 as customer required. The workers all with over 3 years skills.
