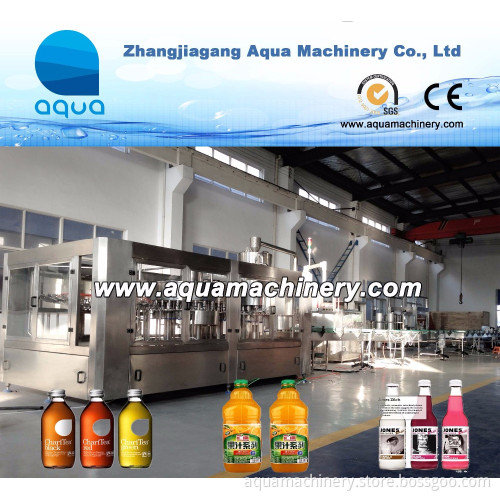

Top Quality Bottled Juice Filling Production Line For Hot Drinks Plant

Company Profile Workshop 1 : Bottled Water Filling And Packing Line Workshp 2 : 3-5 Gallon Water Filling Line Zhangjiagang Aqua Machinery Co., Ltd is specialized in bottled beverage production and packing equipment . We are one of the companies engaged in manufacturing liquid filling and packing equipment in China. We can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.

Aqua-Machinery main business are : Bottled Liquid Filling Machine(Water/Juice/Carbonated Drinks/Edible Oil/Milk/Alcohol Drinks). Barrel Water Filling Equipment(3-5 Gallon).Shrink Labeling Machine/Stick Labeling Machine/Hot Glue BOPP Labeling Machine.PE Film Shrink Wrapping Machine. Bottle Blow Moulding Machine/ Preform Cap Injection Machine/ Water Treatment System Etc Filling And Packing Production Line.

Now our machines are exported to overseas with good feedback, we will do our best reach customer's requirement. Customer Satisfaction is our Service Purpose.
Product Description Main Feature hot filling system(filling temperature can be 85-90degree). It adopts juice powder mixing with water/syrup then filling. The customer can choose wheather need hot filling system,if just common mixing with common temperature,the filling machine can be like water machine. If with sterilizer after mixing,the filling machine will be hot filling machine.

Technical Dates
Model	Capacity	Bottle Dates	Motor Power	Voltage	Filling Temp
CGFR12-12-5	4000BPH	Diameter=50-108 MM Height=170-340 MM Size = 330ml-2000ml	0.75KW	380V/50HZ 220V/50HZ 3 Phase	85 Degree
CGFR18-18-6	6000BPH		1.1KW
CGFR24-24-8	8000-10000BPH		1.5KW
CGFR32-32-10	12000BPH		2.5KW

Detailed Images Name: Reverse Osmosis System
Brand: AQUA  Material: SUS304
Treatment raw water to be cleaning and drinking by RO system.the full set system use SUS304 material with food grade. It includes water pump/silica sand filter/active carbon filter/Sotner/precision filter/RO/Ozone Sterilizer/UV sterilizer/water storage tank.
Name: Juice Pre-mixing System
Brand: AQUA
Material: SUS304 Pre-mixing juice powder with syrup/water/additives by blending tank/sterilizer. The mixing system with high temperature sterilizer to filling.
Name: 3 in 1 juice filling machine Brand: AQUA  Material: SUS304  The machine includes washer filler capper 3 functions to fill drinking juice into pet bottles. It includes empty bottle air conveyor/washer filler capper/filled bottle out flat conveyor/Cap loader. It;s main for filling drinking water. The machine was controled by Touch Screen with good brand PLC.
Name: PVC Shrink Labeling Machine
Brand: AQUA
Material: SUS304
Shrink PVC labels on bottle by steam,the machine with shrink tunnel and steam generator.
Name: PE Film Shrink Wrapping Machine Brand: AQUA
Capacity: 8-25packer/min
Shrink filled bottles by pe film to be 4*6/3*4/2*3 etc.
Name:reverse sterilizeing system
Brand: Aqua
Function: sterilize

The unit is used to sterilize the bacterial in the cap, as the juice filling is high temp filling, so it is still high temp after filling machine, we used to this machine sterilize the bottle  by the higher temp inside of the bottled juice.

Name:cooling and warming machine
Brand: Aqua
Function: sterilize

This machine is also used to sterilize by high temp, water water , cooling 3 steps, considering the bacterial will live in the different temp, so we used this machine to keep the juice life time.it is very important in the second sterilizing system. Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Packing & Delivery Related Products PVC Shrink Labeling Machine 91.8% Response Rate PE Film Wrapping Machine 91.8% Response Rate Semi Auto Bottle Blower Machine 91.8% Response Rate
