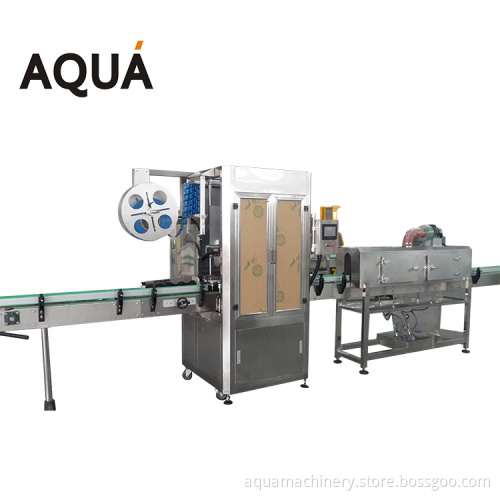

Automatic PVC Shrink Labeling Machine for Bottles/Cans/Jars/Cartons

 Automatic PVC Shrink Labeling Machine For Bottles/Cans/Jars/Cartons

1, the machine is made of stainless steel and high quality of aluminum alloy, the reasonable, intact frame, it is easy to adjust.
2, the feet bolt is not needed, easyto move suitable for different place.
3, the shrinkable film roll with adjustable locking gear, can be adjusted according to different roll 5’-10’
4, the applicable bottle is the machine square bottle and round bottle
5, without tools, the driven machinery can be adjusted to meet different bottle size
6, particular inserting label ways, i.e. inserting label, it is reasonable and convenient.
7, full automatic feeder, the flat shrinking and tension are adjusted together.
8, it is assured to low error that there is inspection of rolling label cut.
9, particular blade design, blade base can be change by free, changing blade quickly and conveniently.
10, it is easy to change the central clamping device without any tools.
11, oriental rolling label device can be lifting synchronal.
12, the separating bottle screw, oriental belt and conveyor are adjusted synchronal.
13, adopting ANCHUAN servo motor made in JAPAN and sensitive photo electricity, to insure the precision of cutting label.
14, stainless steel electric controller, adopting Mitsubishi PLC made in Japan
15, adopting advanced man-machine automatic controlling technology, main component adopts famous brand.

Technical parameters
Capacity :1000BPH~10000BPH (on the base label length :500ml)
Label size: Diameter 30-125mm
Bottle diameter :Diameter28-125mm
Label sleeve length: 30-250mm
Thickness :>0.035mm
Label material: PVC/ PET
Electrical power : 1.5KW (380V 50HZ)
Overall diameter : 2440*890*2200mm
Weight : Approximate 750KG Including the steam thermal shrink machine

Steam Generator and Heating Shrink Tunnel

Main Part
