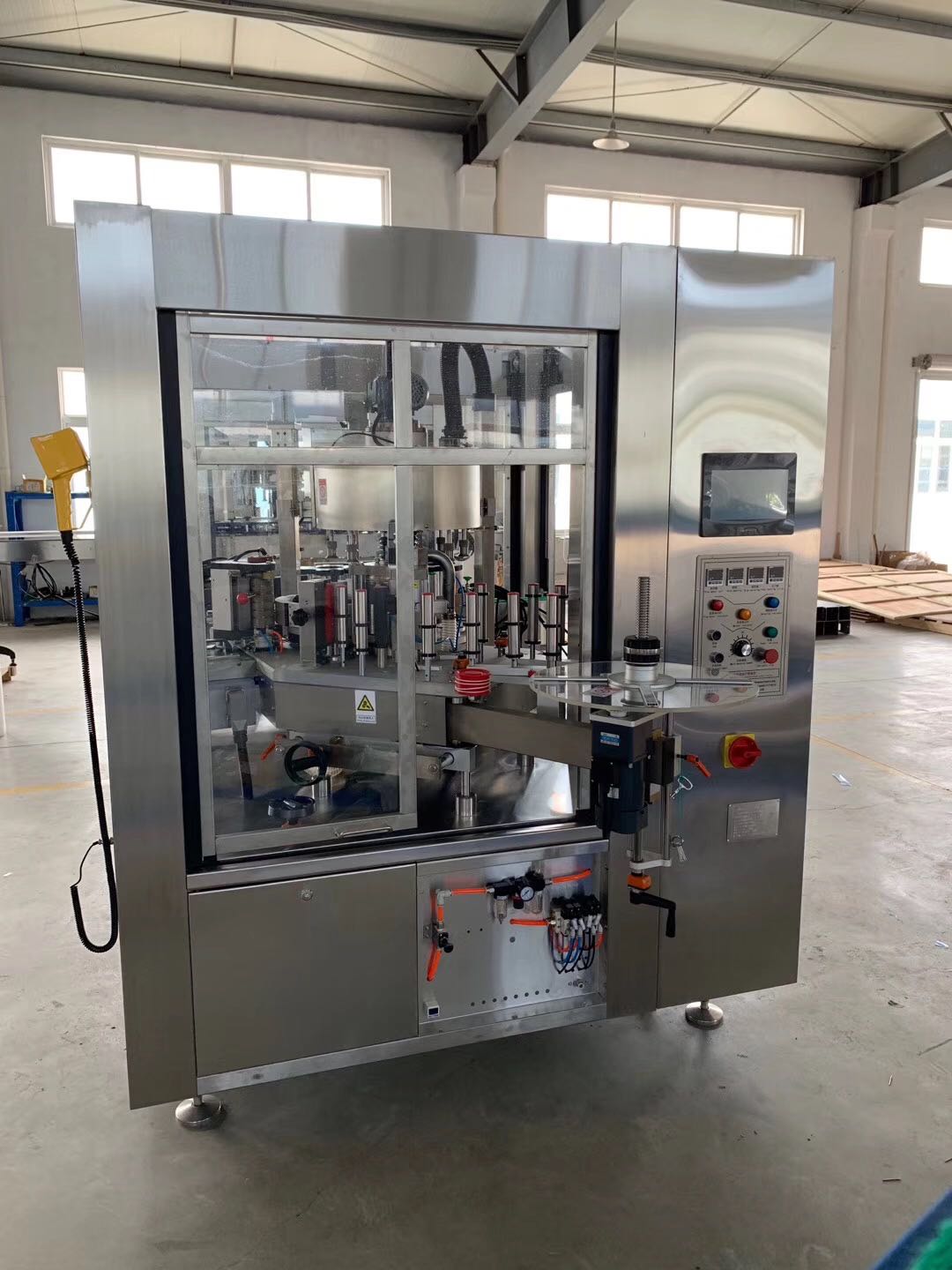

High Quality Automatic BOPP/OPP labeling machine hot melt glue applicator



This OPP labeler labeling machine, or hot melt adhesive labeler, is suitable for labeling OPP material labels, it is easy to operate, and convenient to change the mould. It's cable to work with filler, code printing machine, water treatment, and blow molding machine etc.

The labeling machines are also known as labeling systems, labeling equipment, labeling machines, labeler, labeling machinery, labelling machine, labellers, labelling equipment. Many Labelling machines are not only used to dispense or apply labels, but also to print labels. There is a wide range of Labelling machines available in the market, ranging from high–production units that allow for complete automation of the print and apply process to manual devices that provide for simple label dispensing.
High Quality Automatic BOPP/OPP labeling machine hot melt glue applicator

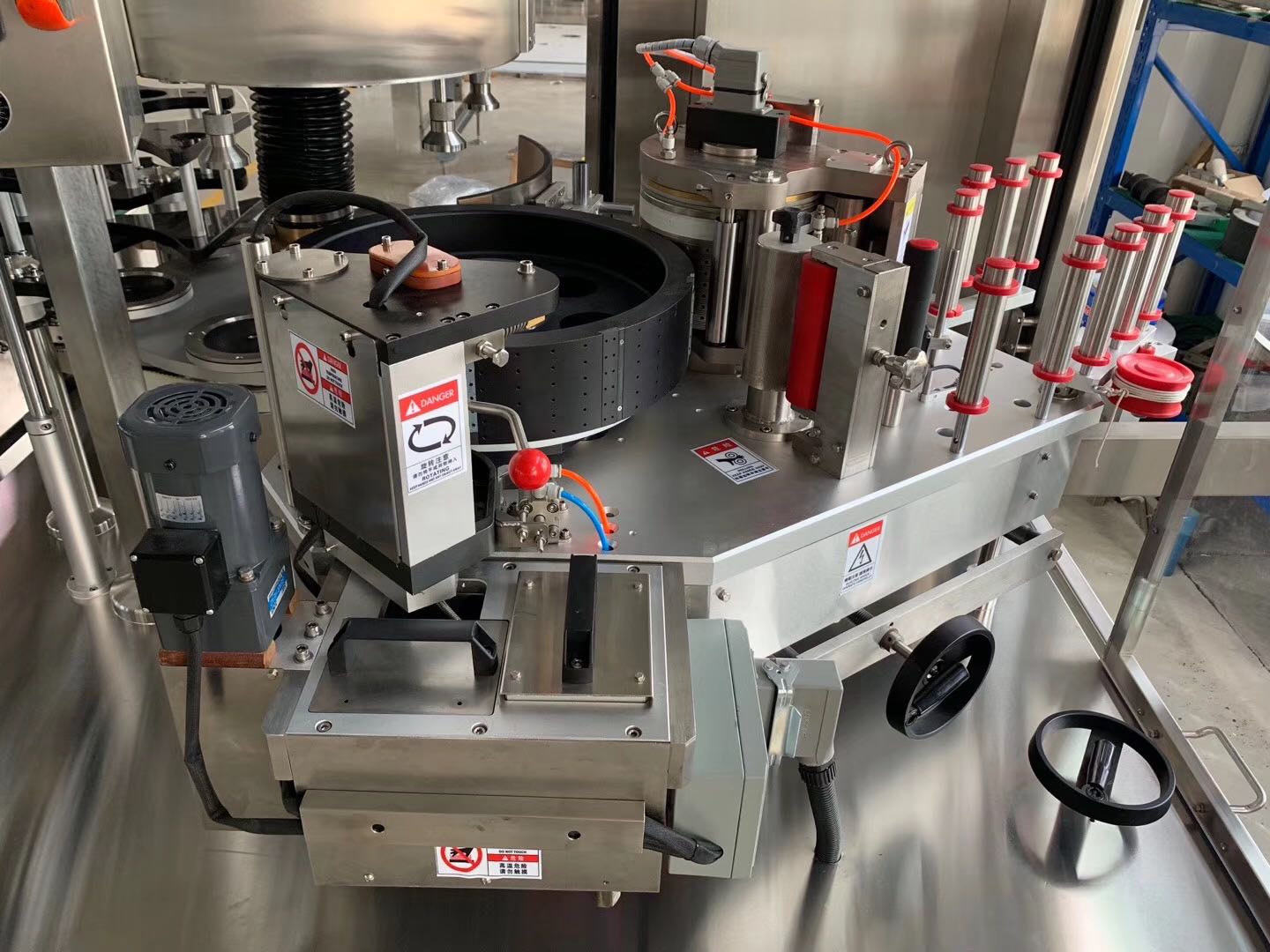

Working principles of OPP labeling machine

1. Adopts wheel type labeling.
2. Labels are fed with feeding wheel along guiding rail for labeling.
3. Sensor will detect automatically when label passing by the feeding wheel.
4. Once the position of Electric Eye is detected, demodulator will adjust speed of feeding wheel, and detect the cutting position precisely.
5. Label passing by the feeding wheel, and enters into cutting position for label cutting, then label is feeding into vacuum drum.
6. Senor sensing the labels in the vacuum drum, then feeds it into glue drum for glue painting.
7. Bottles feeding with conveyor, sorting by star wheel, having its first time labeling, then continue complete labeling process with synchronous belt.
High Quality Automatic BOPP/OPP labeling machine hot melt glue applicatorHigh Quality Automatic BOPP/OPP labeling machine hot melt glue applicator
Hot glue opp labeling machine
NO
Item
Parameter data
1
Voltage
380V
2
Frequency
50Hz
3
Power
8KW
4
Available bottle dimension
Diameter:40-105mm,
height=80-350MM
5
Label specification
Length:125-325mm,
Height:20-150mm
6
Gluing way
Roll painting(about 10mm, both label head and tail)
7
Capacity
9000-36000 bottles per hour
(500ml bottle)
8
Glue Consumption
l kg/ 100,000bolttle
(label height:50mm)
9
Compressed Air Pressure
MIN5.0bar MAX8.0bar
10
Consumption of Compressed Air
0.2M³/minute
11
Overall dimension
2500Kg
12
Total Weight
L=3150,W=1770,H=1800

Electric Configuration
