Automatic Small Beer Canning Machine / Beer Can Filling Sealing Machine

Automatic Small Beer Canning Machine / Beer Can Filling Sealing Machine

$18000.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,T/T,MoneyGram

Product Description

Product Overview

Automatic Small Beer Canning Machine / Beer Can Filling Sealing Machine

The beer canning machine mainly used for filling carbonated containing drink in tin cans, such as juice, soda water ,soft drink,sparkling water and so on. The filling way is Isobaric filling.

It adopts the automatic PLC touch screen control system, and the speed can be regulated forever as customer requirement within the scope.

It is set with 18 filling heads and 4 sealing heads. The filling valves are adopted special for filling juice and pulp.

It adopts the high quality of stainless steel 304 material, meets the requirements of food grade.

It is full automatic and advanced in construction, steadily in performance, safe in operation, easy in maintenance, high in production efficiency.

The filler is the ideal choice for drink factories of small and middle size.

Beer Canning Machine

Model: BGF18-4

Capacity: 6000CPH

Can Size: 330ml-500ml

Filling Temperature: 0~2°C

Function: Filler Sealer

CO2: 2~5 G/L

Material: SUS304/SUS316

Filling Method: Isobaric Filling

Control: PLC+Touch Screen

PRODUCT SPECIFICATIONS

Model	BGF12-1	BGF18-4
Filling Heads	12	18
Capping Heads	1	4
Capacity(CPH)	1000-2000(500ml)	6000-9000(500ml)
Available Can Size	Can Height: 80~180mm; Can Body Diameter:Φ50~Φ70mm	Can Height: 80~180mm; Can Body Diameter:Φ50~Φ70mm
Compressed Air Consumption	0.2M3/Min	0.4M3/Min
CO2 Consumption	25KG/1000L	32KG/1000L
Main Motor Power	2.2KW	4KW
Dimension	2150×1200×2250 mm	3200×2150×2320mm
Weight	2500KG	3270KG

Complete Line Solution

Can Washing Machine - Can Filler Sealer Machine - Can Warming Tunnel - Can Shrink Labeling Machine

Products Description

Can Depalletizer

The depalletizer is new style one which is researched and developed by absorbing advanced technology aboard. It is suitable for
different medium and large beer filling production line, some functions will be changed or added according to the customer’s
actual requirement.

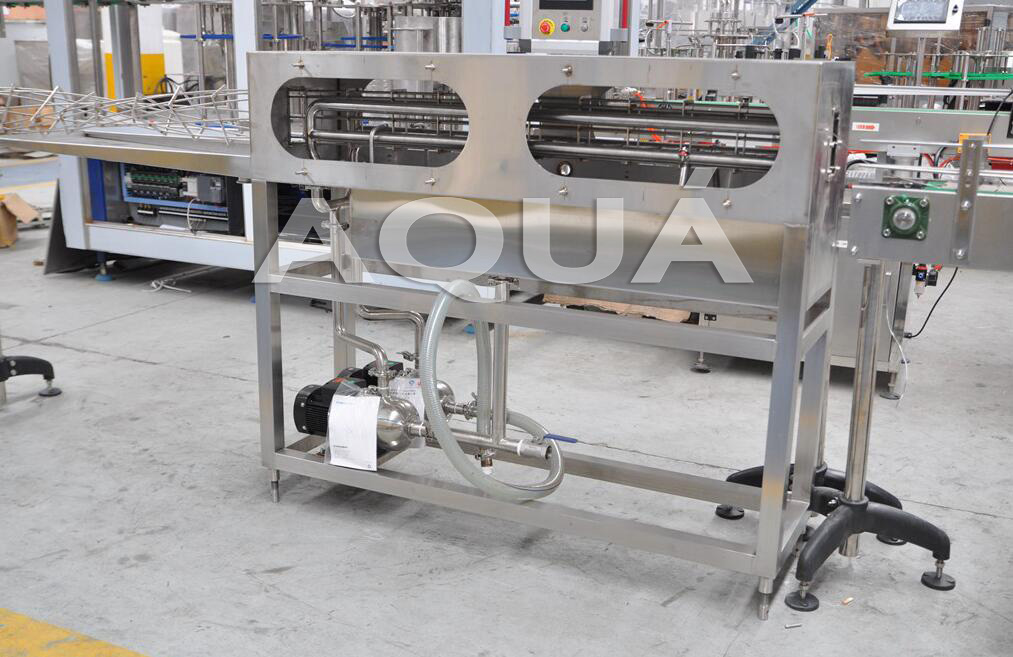

Can Washing

It automatically jets and sterilizes the inner and surface of the can. All the materials are made of stainless steel.When the tank
turned into the first tank after tank-cleaning ,and appearance under the temperature by a porous pipes with red spray, 0.5meters
can then rotate in order to achieve the purpose of cleaning ,and then turned the extension device can slide into the next chain
road.

Can Filling

-Large flow filling valve, filling flow up to 125ml/s
-When filling,ensure that the filling valve and the can are completely sealed, maintain the isobaric environment, ensure the liquid level is accurate
- 304/316 stainless steel filling pump
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean - Efficient spray nozzle rinse thoroughly and save water for flushing

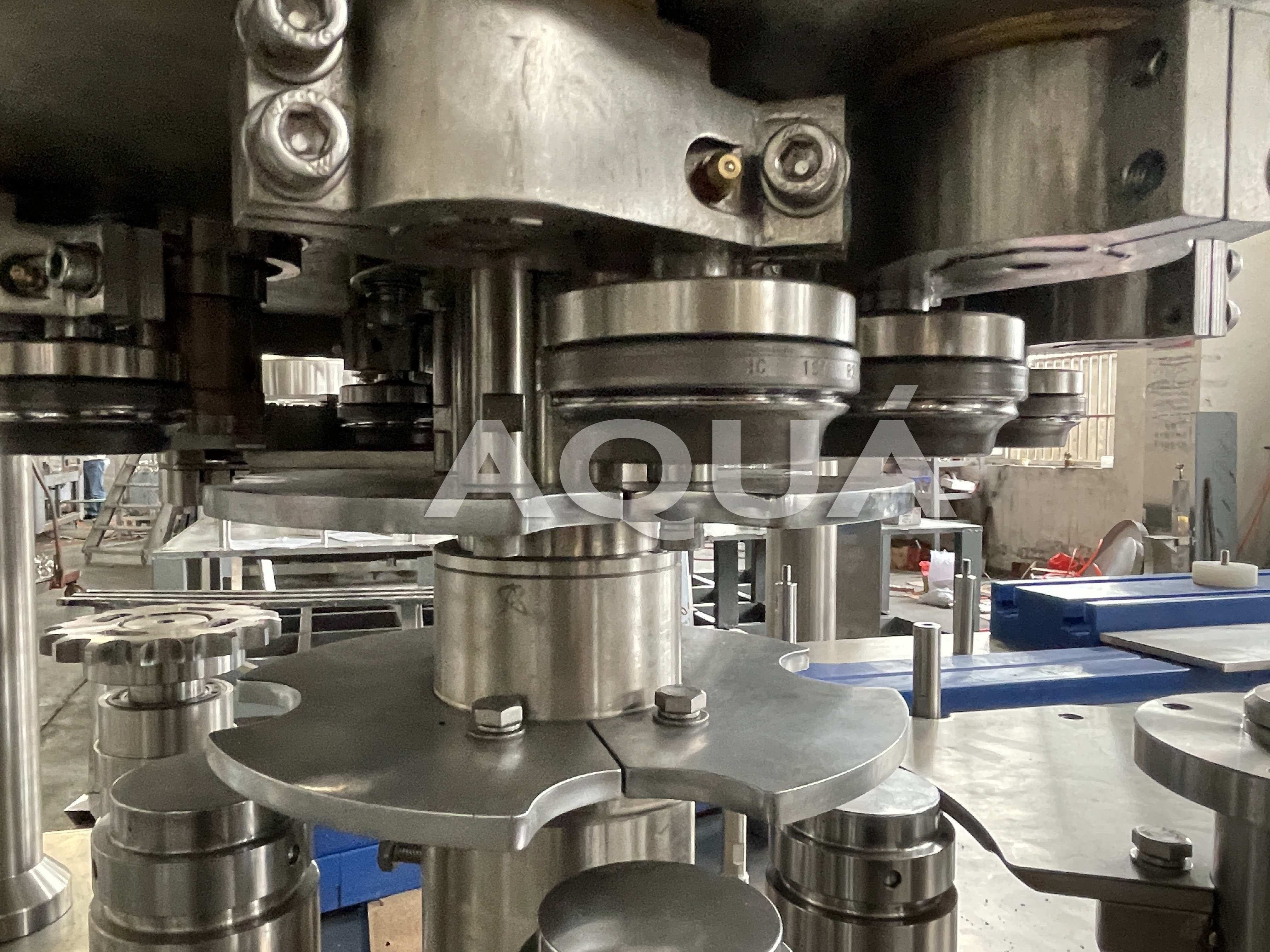

Can Seamer

- Capping effect is stable and reliable- Better sealing effect
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
