Basic Info

Product Description

Product Overview

Automatic beer canning production line / beer filling and canning machines / small beer canning machine

Zhangjiagang Aqua Machinery is a professional manufacturer of beverage machinery in China.

Our main products have:

Liquid Filling Line (Water / juice/ carbonated drink/ aerosol filling machine/ Beer /Dairy product /Edible oil etc.)

5-10L Big Bottle Filling line

3-5 Gallon Barrel Water Filling Line

Gallon bottle filling production line,

Aluminum can Filling line

Contact Coco Lee for more information !

Products Description

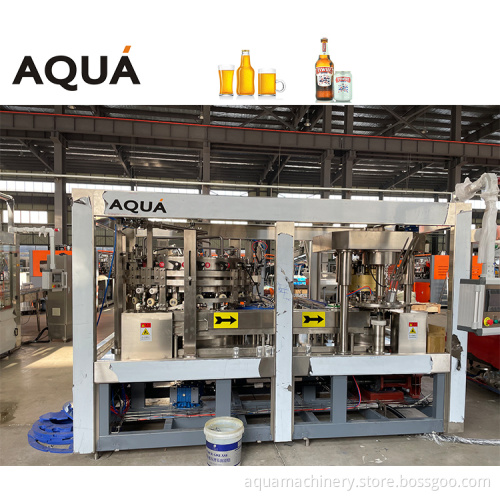

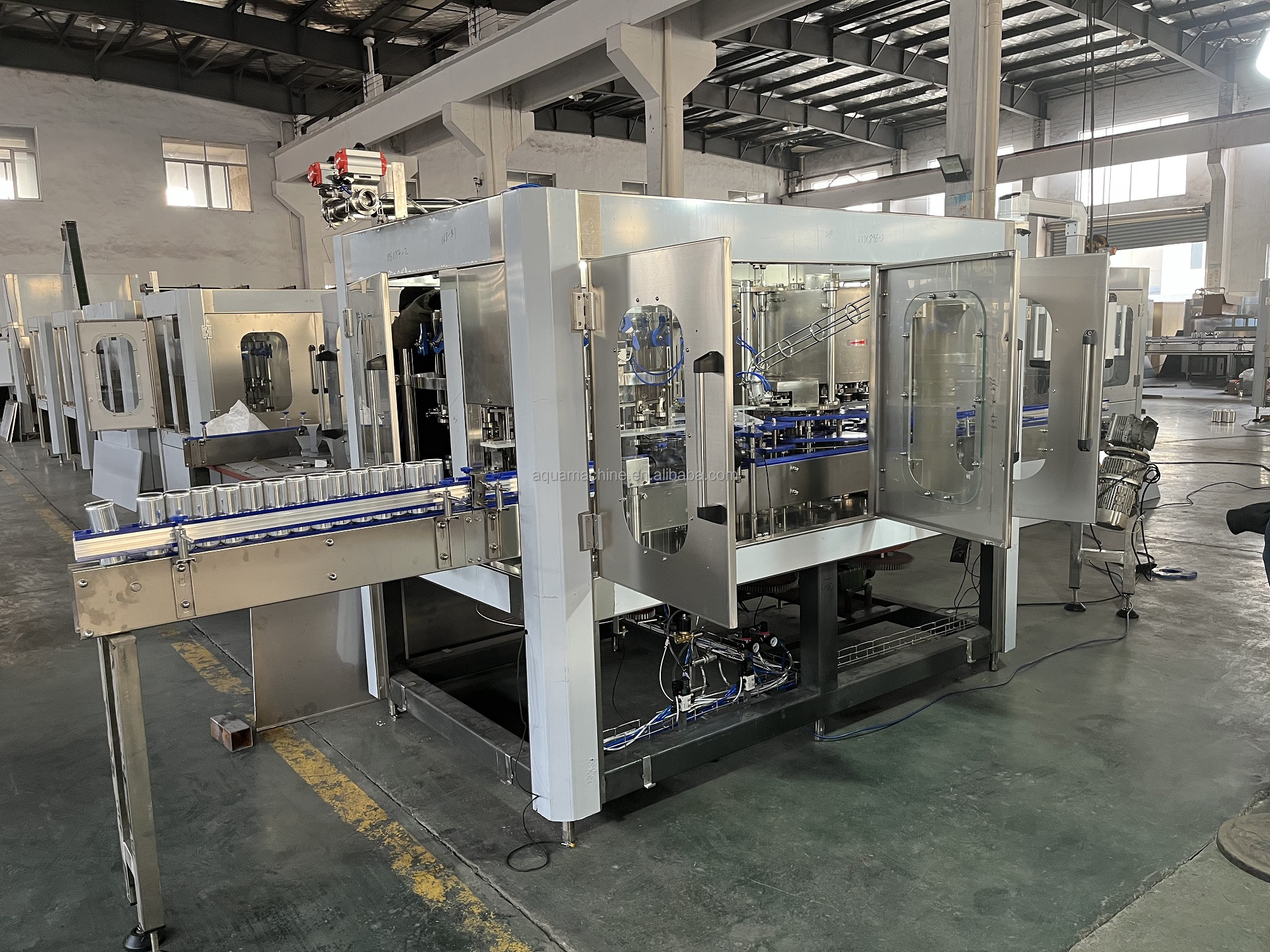

Beer Canning Machine ( 2 in 1 Type / Filling and sealing )

Function : Carbonated drink / beer can Filling sealing 2 in 1 machine.
Speed : 100cans/min
Advantages:
Can sealer is our flagship product with affordable price and stable equipment.
It is the result of continuous improvement of our engineers for more than 10 years. Our 6 head can sealer speed can be 500 cans /min at least.

can sealer in Taiwan

1/ Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during

capping

Speed : more than 500cans/min

Self made can sealer

2/ No bottle no capping
3/ Automatic stop when lack of bottle
4/ Capping effect is stable and reliable, Defective rate ≤0.2%

Speed Below 500can.min

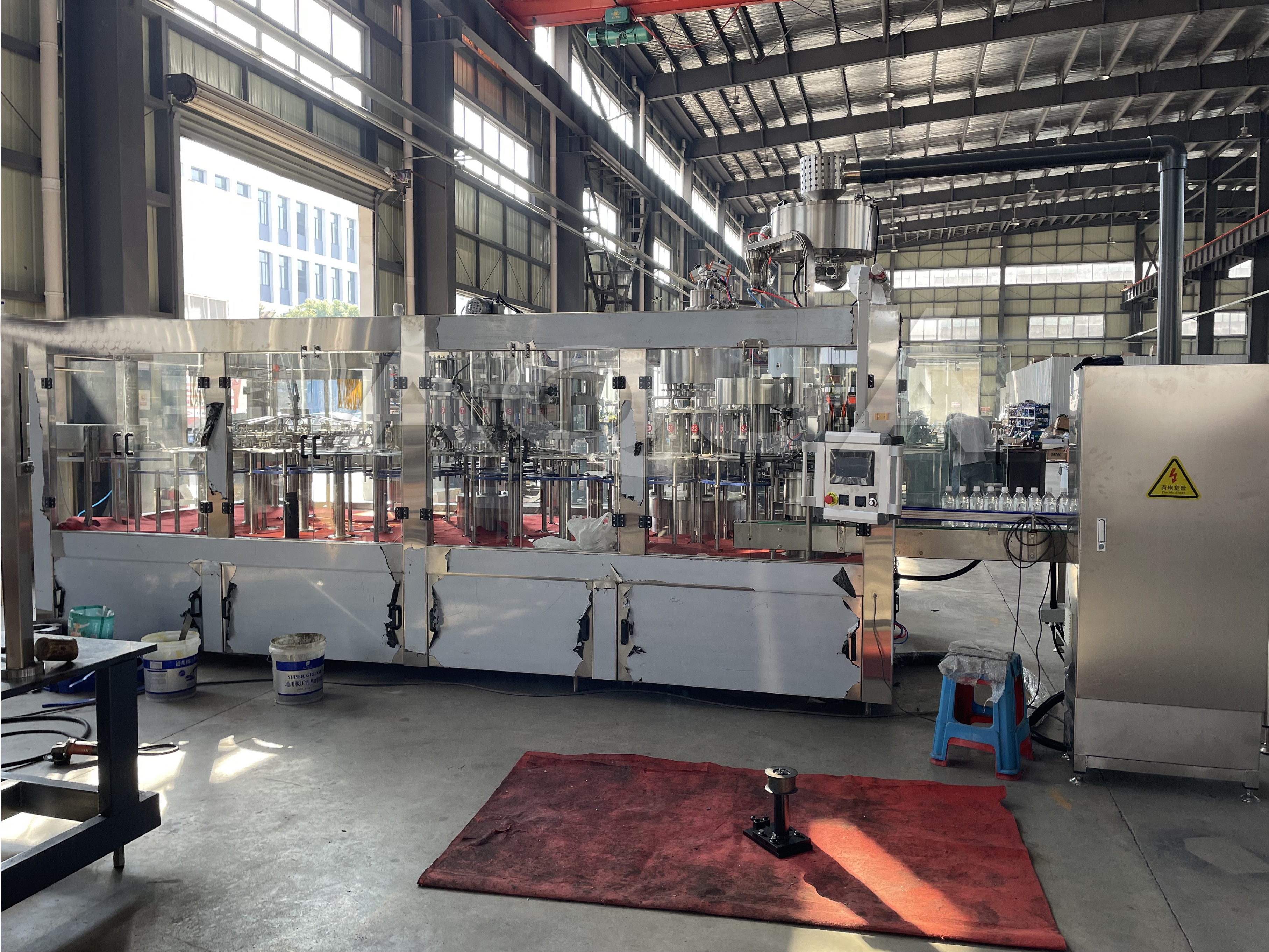

Filling Machine

1/ 304/316 Stainless steel high precision filling nozzle
3/ All 304/316 stainless steel contact parts & liquid tank, fine polish
4/ 304/316 stainless steel filling pump
5/ Efficient spray nozzle rinse thoroughly and save water for flushing

Online Can Washing Machine

1 - Scope of application: water spraying and drying on the slope of the tin can
2 - water spraying box made by stainless steel structure
3 - tank cage, by ￠article 8 mm stainless steel
4 - the support frame is composed of 50mm x 50mm x 2mm stainless steel square pipe

Can Depalltizier

1 - PLC control of the whole machine, fully automatic operation2 - Adapt to various stack types and bottle types, easy to adjust
3 - Segmented transmission with high-quality conveyor chain, the output section can be arbitrarily lengthened
4 - Using 304 material, the whole machine is beautiful and elegant

Bottle Cooler and Warmer System.

- Mainly for cooling and sterilization
- The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and
observation
- Nozzles are manufactured using U.S. technology and spray water evenly
- Conveyor belt adopts Rexnor technology, flat surface with small wear
- Smooth and reliable operation with low energy consumption

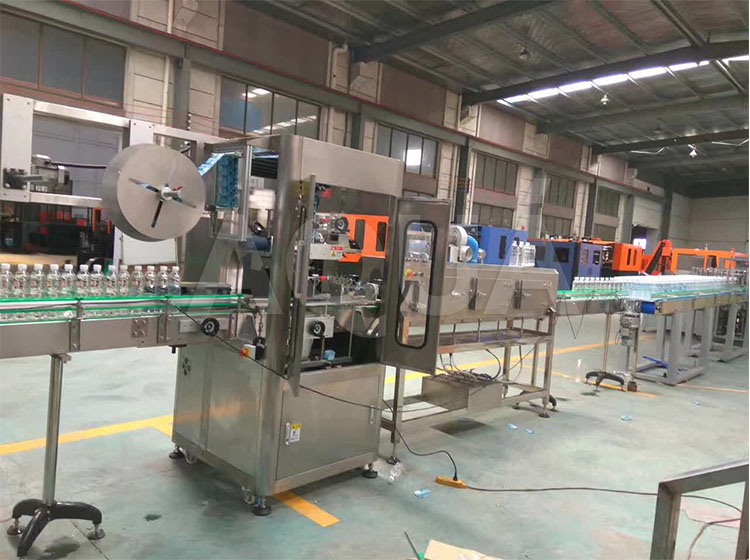

Beer Can Shrink Labeling Machine

Put pvc shrink label on beer cans, and shrinking by steam generator.

PRODUCT SPECIFICATIONS

Capacity	100can/min
Filling heads	18pcs
Seaming heads	4pcs
Filling method	Isobaric Filling
Filling temperature	0-4°C
Filling accuracy	±8ml (National Standard)
Chain space	171.4mm
Conveyor height	1200-1400mm
Size	3500×2300×2450mm
Weight	3000kg
Can diameter	45-70mm
Can height	80-175mm
Power	3.26KW
Compressed air	0.5Nm3h(0.6MPa)

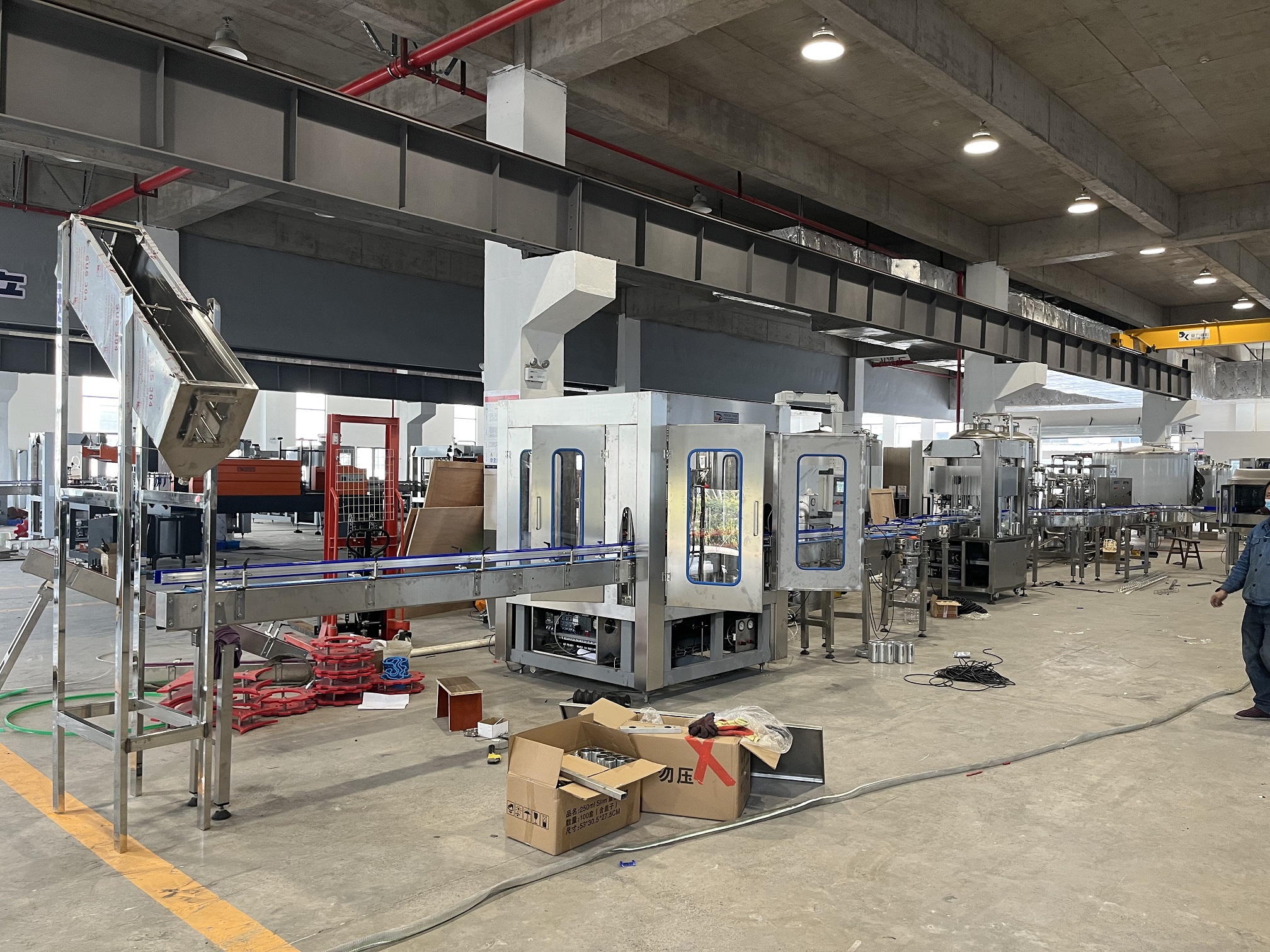

Successful Project

Project in Thailand

Project in Armenia

Project in Guinea-bissau

PRODUCT CONFIGURATION

Several important links of high quality

1.As a sales with more than 10 years , I think the electric configuration is the first step of to be good quality.

2.How to make the equipment achieve the best stability is not only about branding, but also requires engineers to constantly choose and try, which is a long-term and tiring process.

3.There are many brands on the market. When choosing which one to use, we will consider many factors, such as the country of the customer, the local temperature, and choosing the most suitable electrical appliance is also very important.

SIMILAR PRODUCTS

Carbonated Drink / Soft Drink Filler Line

Juice filling line

5-10L water filling machine

YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, Just contact us.
● The meaning of visiting supplier, because seeing is believing, AQUA Machine with own manufacture and developed& research team,we can send you engineers and make sure your after sales service.

HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● After the factory visit, You can ensure the facility of our bank account.

SEE AQUA MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.

THE AFTER-SALE SERVICE OF AQUA MACHINE!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools

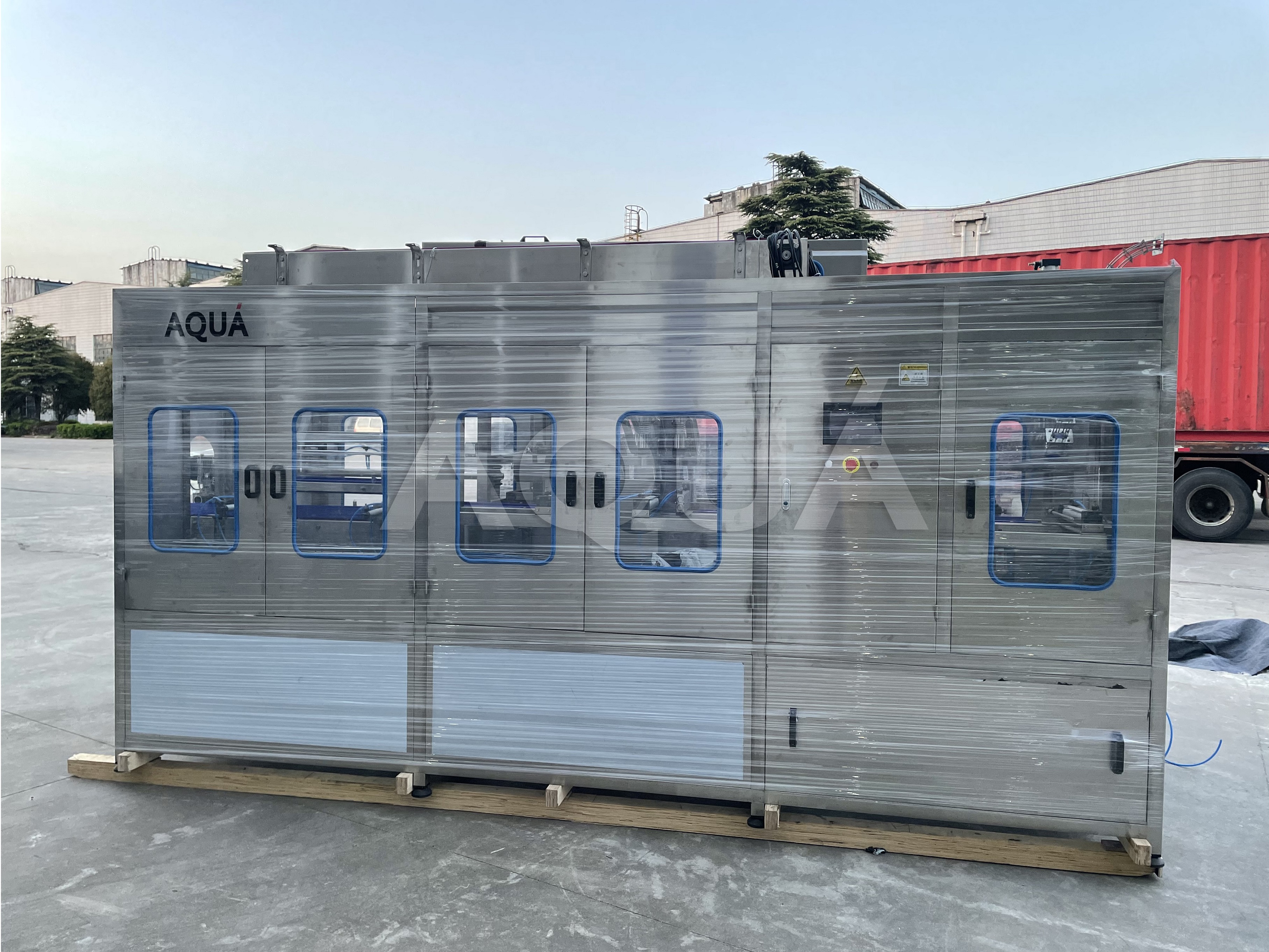

● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
