Ready to Ship 5 Lines South America 19Liter 5 Gallon Water Bottle Filling Machine
-
$12000.00≥1 set
- Min. Order:
- 1 set
- Min. Order:
- 1 set
Your message must be between 20 to 2000 characters
Contact Now

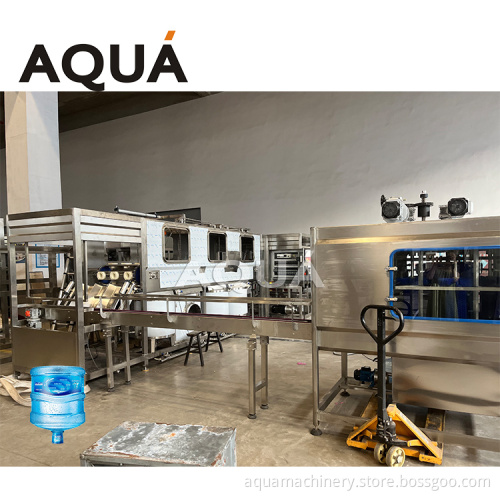

Ready To ship 5 Lines to South America 19Liter 5 Gallon Water Bottle Filling Machine
1. Filling production: 1000-35000 bottles per hour.
2. bottle range 300-2000ml, 5-10L. 15-20L, will be different machine.
3. we supply complete line from a to z. pls contact with us.
(water purification system, bottle moulding machine, water filling machine, labeling machine, packing machine and printer ,conveyors)
Technician parametesr of Ready To ship 5 Lines to South America 19Liter 5 Gallon Water Bottle Filling Machine:
| Model | CGF 8-8-3 | CGF 18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF 40-40-12 | CGF 50-50-15 |
| Rinsing nozzles | 8 | 18 | 24 | 32 | 40 | 50 |
| Filling nozzles | 8 | 18 | 24 | 32 | 40 | 50 |
| Capping nozzles | 3 | 6 | 8 | 10 | 12 | 15 |
| Output(@500ml) | 2000BPH | 6000BPH | 10000BPH | 15000BPH | 20000BPH | 28000BPH |
| Applicable bottle size | Diameter=50~108mm, H=170~340mm, 330~2250ml | |||||
| Pressure of air source | 0.7MPa | 0.7MPa | 0.7MPa | 0.7MPa | 0.7MPa | 0.7MPa |
| Air Consumption | 0.25M3/min | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
| Pressure of spraying water | 0.2-0.25MPa | |||||
| Consumption of rinsing water | 1T/H | 1.2T/H | 1.2T/H | 2T/H | 2.2T/H | 2.5T/H |
| Pressure of filling | 0.2-0.3MPa | |||||
| Power consumption | 2.5kw | 3.5kw | 4kw | 5.5kw | 6.5kw | 8kw |
| Machine body | SS304 | |||||
| Machine size(L*W*H,mm) | 2100*1800*2400 | 2300*2200*2400 | 3000*2200*2800 | 4000*2600*2800 | 4700*2900*2800 |
5100*4800*3000 |
| Machine weight(kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7500 |
| PLC | Japan Mitsubishi | |||||
Ready To ship 5 Lines to South America 19Liter 5 Gallon Water Bottle Filling Machine
1.RO water treatment system
Function: Used to Filter the water to be drinking
Membrane brand :Hydranautics ,Torry, DOW
2, Bottle Blowing machine
Fuction: To make PET bottles
3.Rinser filler capper with cap unscrambler system ---Water Filling machine
Details of mineral water production line
Rinse
Rinse:
Capper
Cap elevator
4. Labelig machine
Function: put the labels on the bottles.
Seelve labeling machine
Hot glue labeling machine
5.Packing Machine
This machine used to pack bottled water in a group, for example 3x4. 4x6 or 2x3 etc.
