mquina de lavadora de botellones de 20 litros/llenadora agua 19litros/water filler 19liters

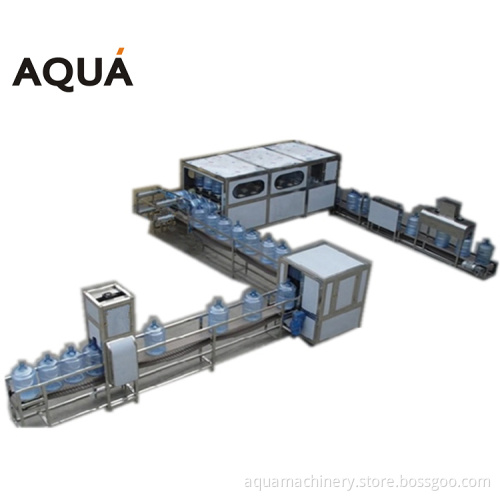

1. This 5 gallon water filling machine is main for filling drinking water into pet bottle from 3-5 gallon
2. The 5 gallon water filling machine includes sterilizeing, rinsing filling sealing multifuctions together.
3.Our factory supply 100-2500bottles per hour 5 gallon filling machine, but if you need newest type machine, the smallest type is 100 barrels per hour.

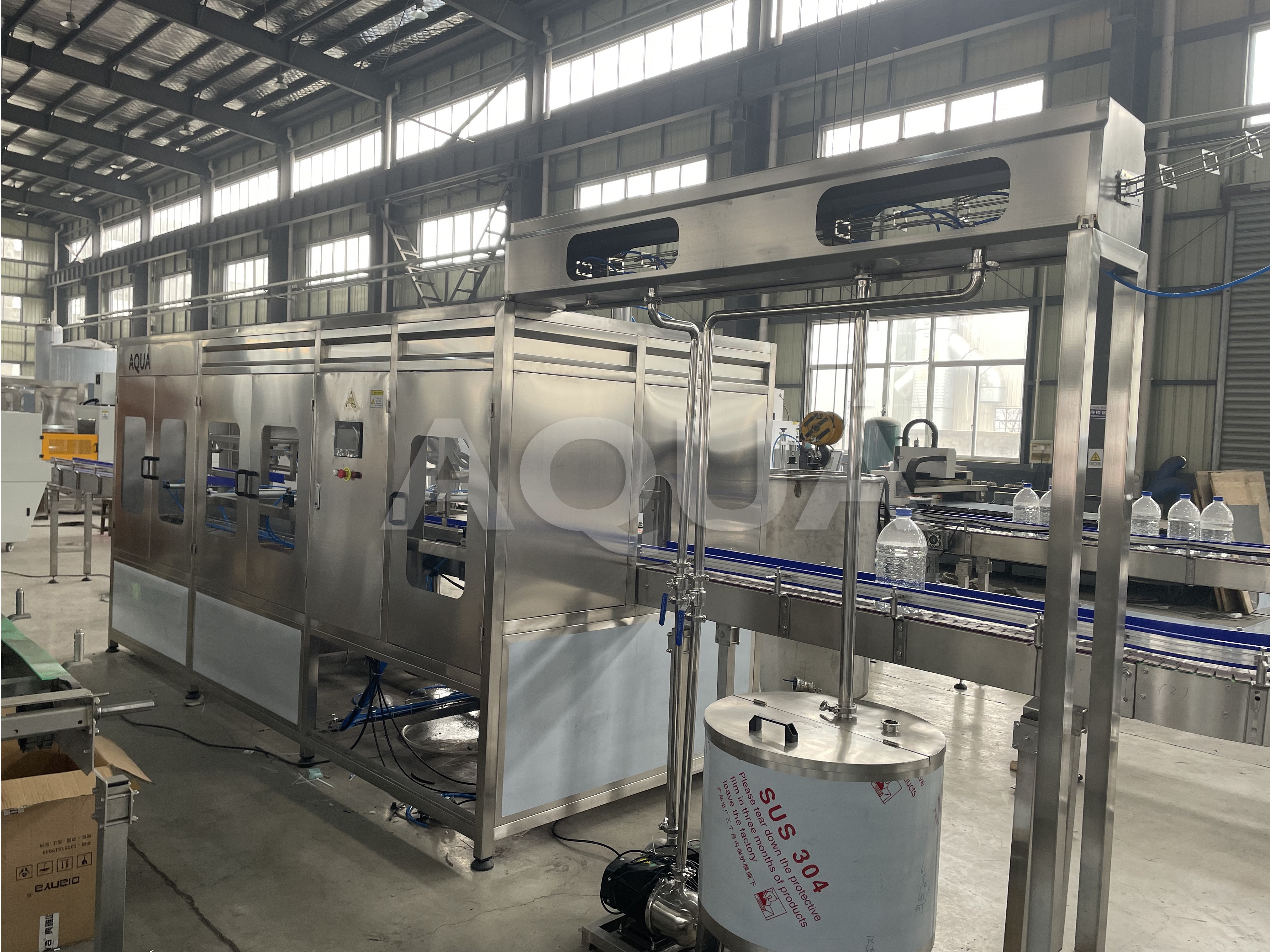

500BPH 5 Gallon Filling Line

Export to: Ecuador

Capacity: 500BPH 5Gallon

Voltage: 220V/60HZ/3Phase

Project: Decapper-Brusher-Wash Fill Seal- Cap shrink labeler

Inlet Water: Purified Water after RO system

Conveyor: 10.4M

Shipping Container: 40HQ

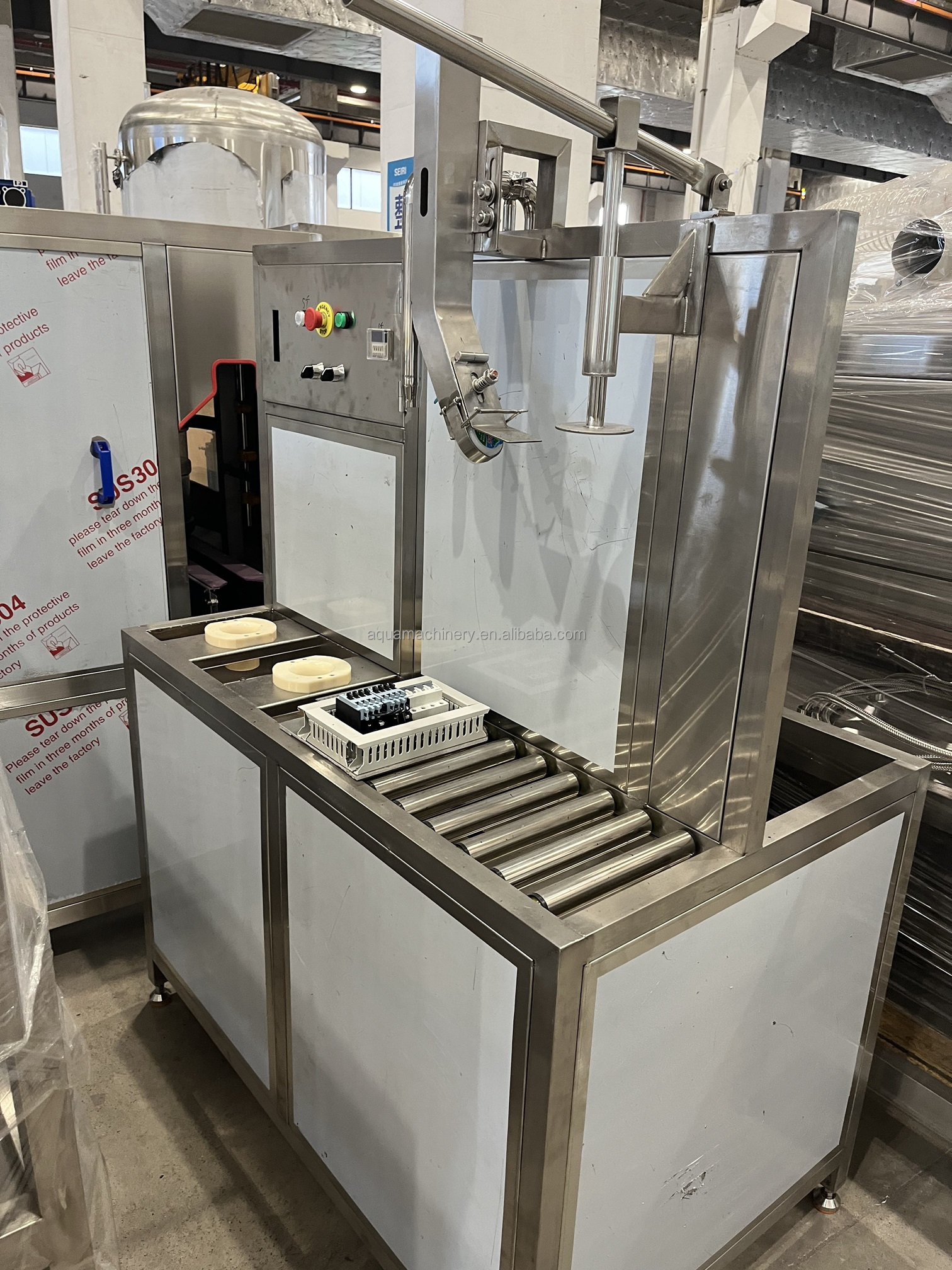

Following is Manual Washer Filler Capper Machine ( 50BPH)

PRODUCT SPECIFICATIONS

Model

QGF-120

QGF-300

QGF-450

QGF-600

QGF-900

QGF-1200

Application

Spring water / mineral water / pure water /Distilled water and so on

No. of Filling heads

Production Capacity(B/H)

100BPH

300BPH

450BPH

600BPH

900BPH

1200BPH

Filling capacity(L）

10~20L

Filling temperature

0~30℃ or customzied

Machine type

Linear type

Rotary type

Machine material

Food stage SS304 OR SS316

Control system

SIMENS PLC+ TOUCH SCREEN

Features

No Bottle No Filling No Bottle No Capping

Main Power

2.9kw

3.5kw

4.3kw

6.2kw

8.7kw

9.5kw

Power Supply

Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement

Overall dimensions (mm)

2600×650×1550

3900×1500×1700

3900×1775×1700

3900×2050×1700

4650x3200x3200

4987x3846x3200

Weight (kg)

800

1500

2000

2500

3000

3500

All machines could be customized , we could design and produce machines according to your request.

Complete Line Solution

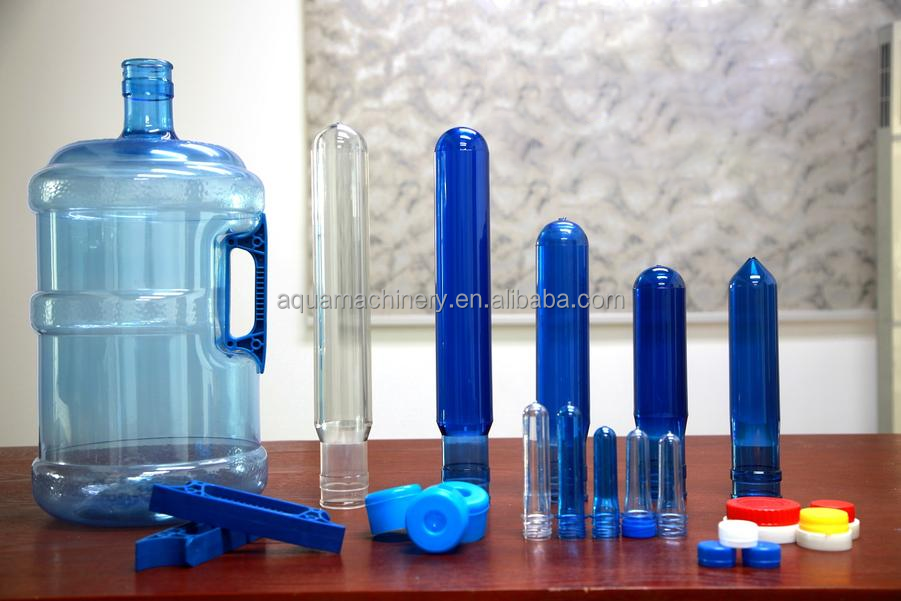

Raw Materials

PET Preform 700g/730g/750g

Cap: One time cap/ 3 pieces cap

Handle

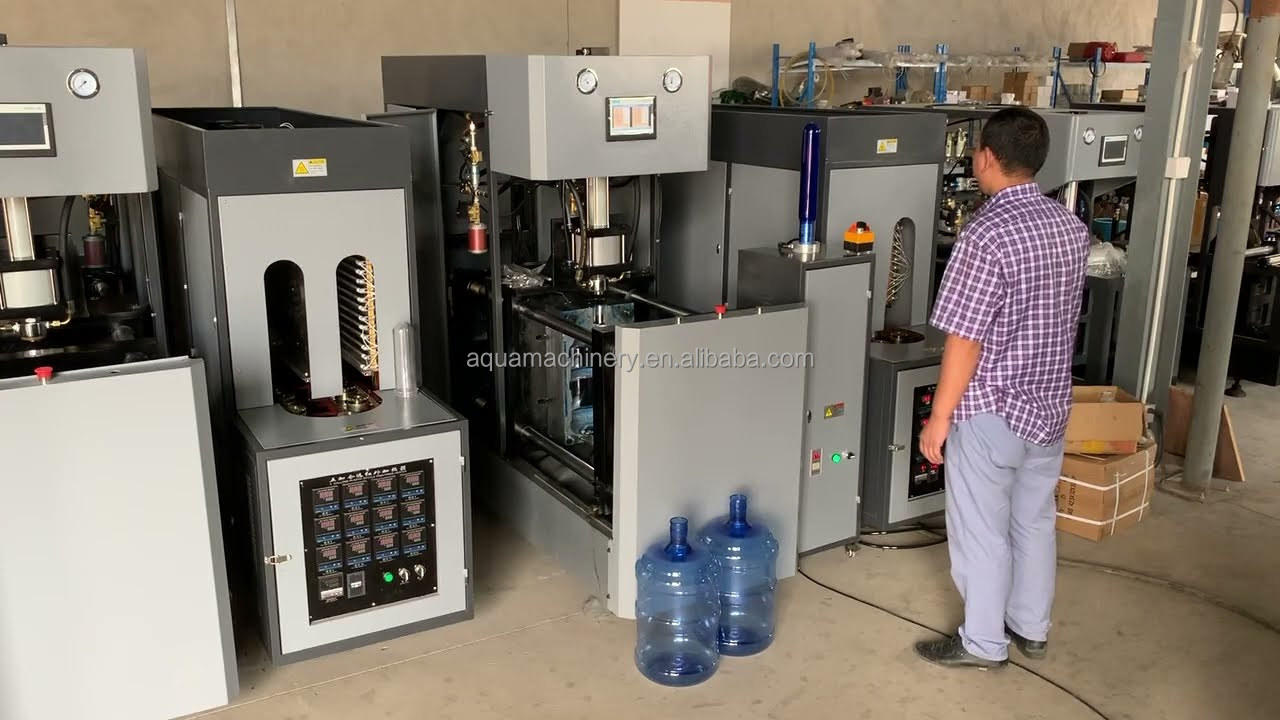

Semi Auto PET bottle Blowing Machine 19L Drum

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Automatic Decapper And Brush Machine

Remove caps then external brush 5 gallons before filling.

single PLC control/ easy operation

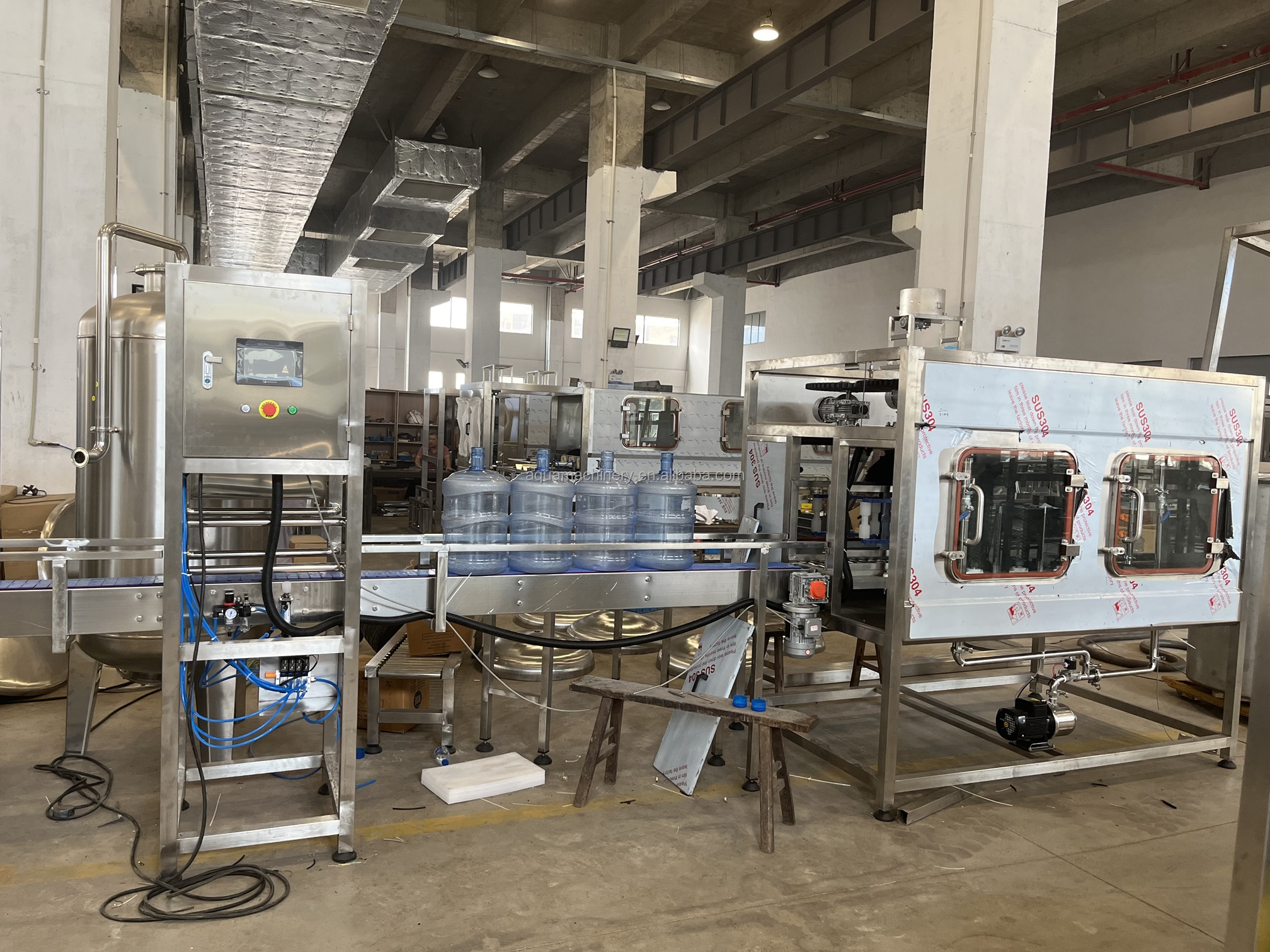

llenadora agua 19litros/water filler 19liters

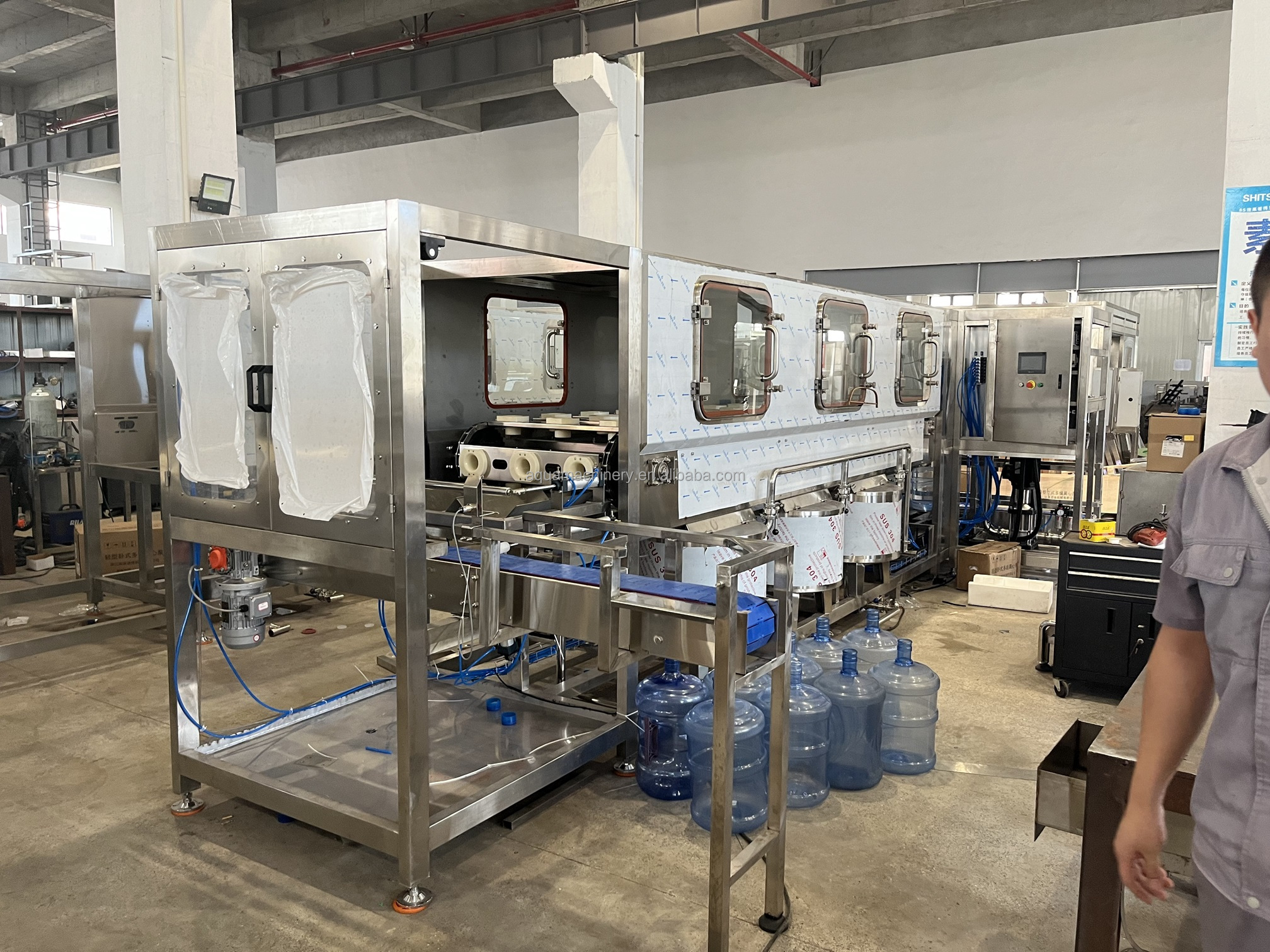

It integrateds bottle washing,filling and capping into one unit,in order to achieve the purpose of washing and sterilizing,The washing machine uses multi-washing liquid spray and thimerosal spray,the thimerosal can be used circularly,the capping machine can be cap barrel automatically

The line equips with water spraying device in order to ensure those caps sterile and clean ,it also can automatically carry out barrel,washing,steriizing,filling,capping,counting and products discharging.

With complete function,modern design and high degree of automation ,It is a new kind of barreled water auto producing line ,which integrates mechanism,electricity and pneumatics technologies together

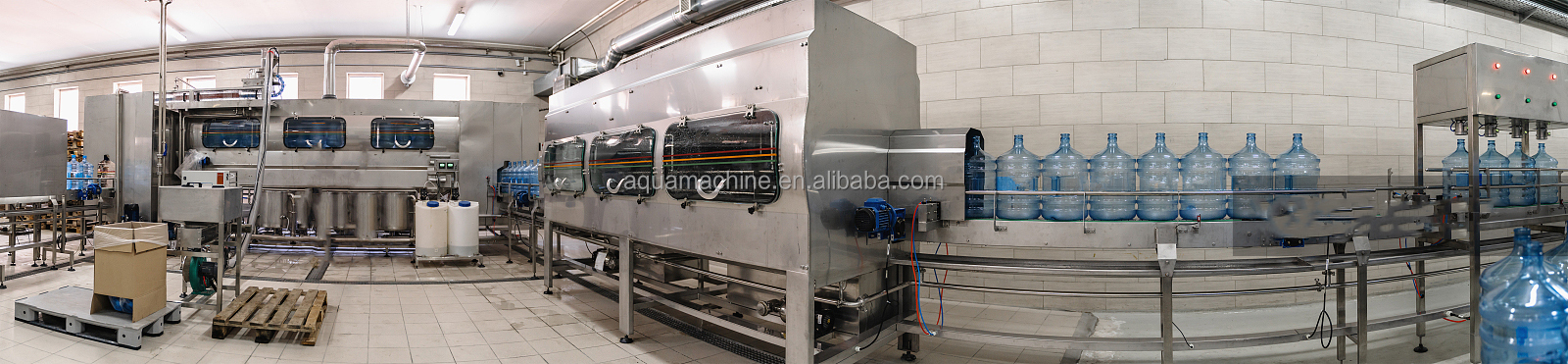

Successful Project

Project in Armenia

6000BPH 500ML Water Line

Project in Mongolia

600BPH 5L Water Line

Project in Hati

4000BPH 500ml Juice Line
