600BPH 10L Bottling Plant / Complete Line For Bottling Water in 10L and 5L Bottle

Project: Complete line for bottling water in 10L bottles.

Country: Mongolia

Capacity: 600BPH based on 5L. Also can fill from 3L-10L with same neck size.

Include: water treatment system, Blowing machine, washing, filling, closing, one-sided labeling (self-adhesive), handle installation.

PRODUCT SPECIFICATIONS

Model	Capacity	Washing heads	Filling heads	Sealing heads	Power(kw)	Dimension(mm)
XGF2-2-1	400BPH 5L	2	2	1	2.5	180011001800
XGF4-4-1	600BPH 5L	4	4	1	3.5	230011001800
XGF6-6-1	800BPH 5L	6	6	1	4.5	280011001800
XGF8-8-4	1200BPH 5L	8	8	4	5.5	268023002400
XGF12-12-4	2500BPH 5L	8	8	3	6.5	320025002400

Products Description

600BPH 10L Bottling Plant / Complete Line For Bottling Water in 10L and 5L Bottle

Filling Machine Benefits

1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime

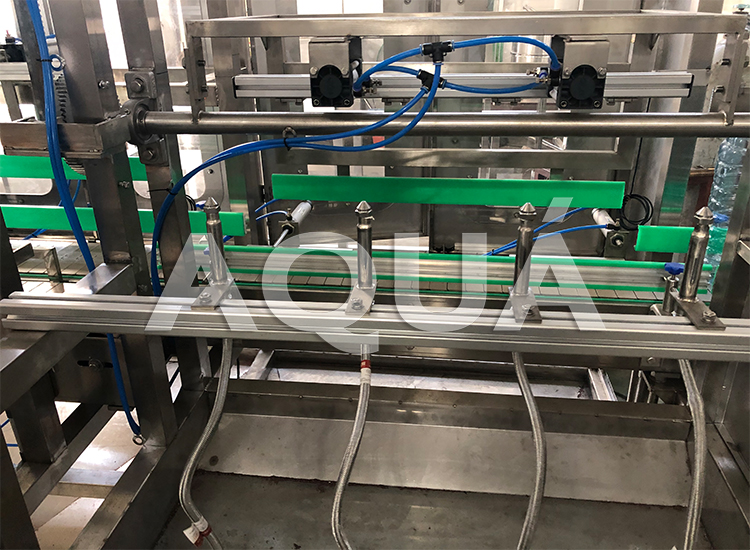

Washing machine

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

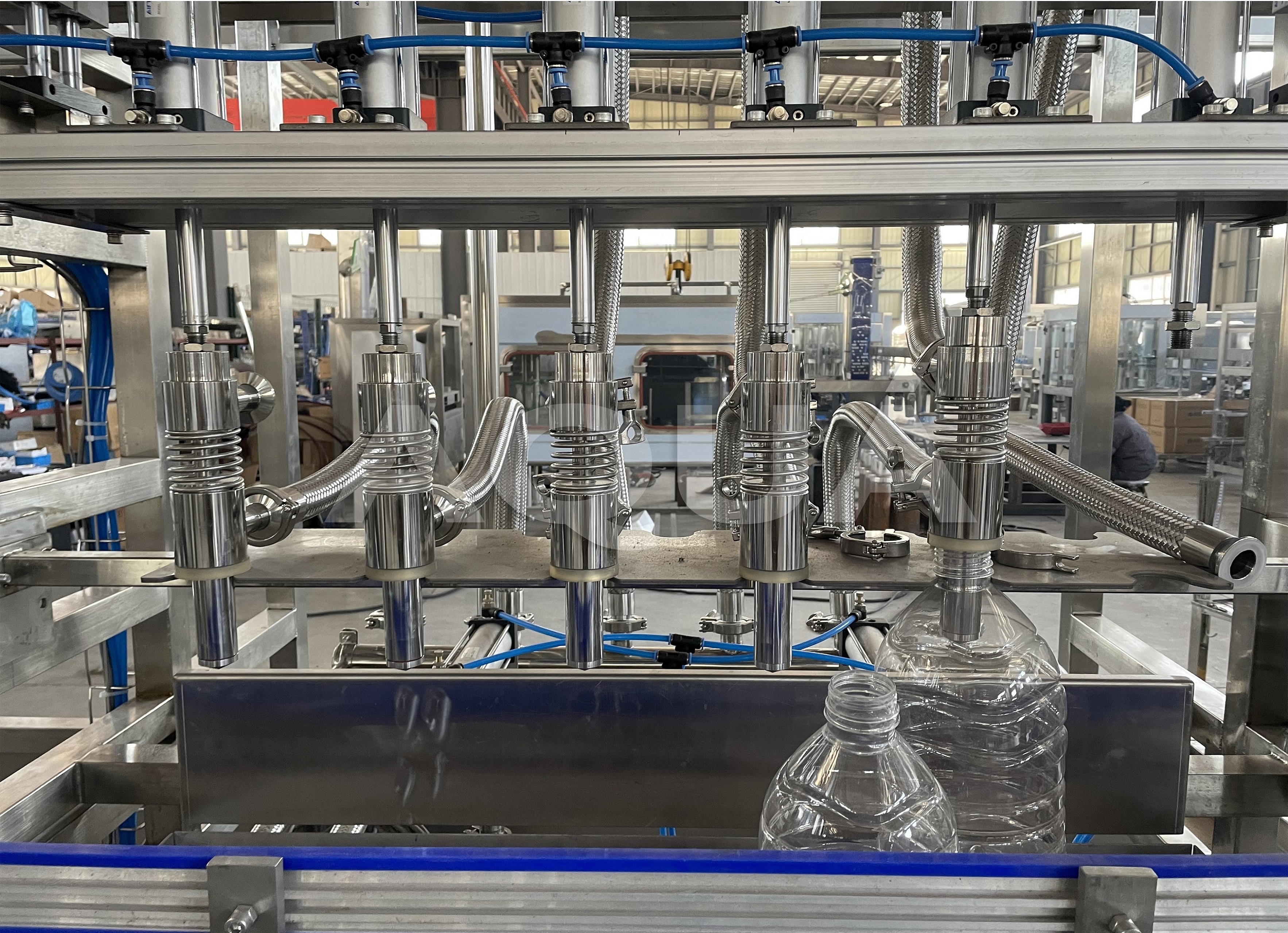

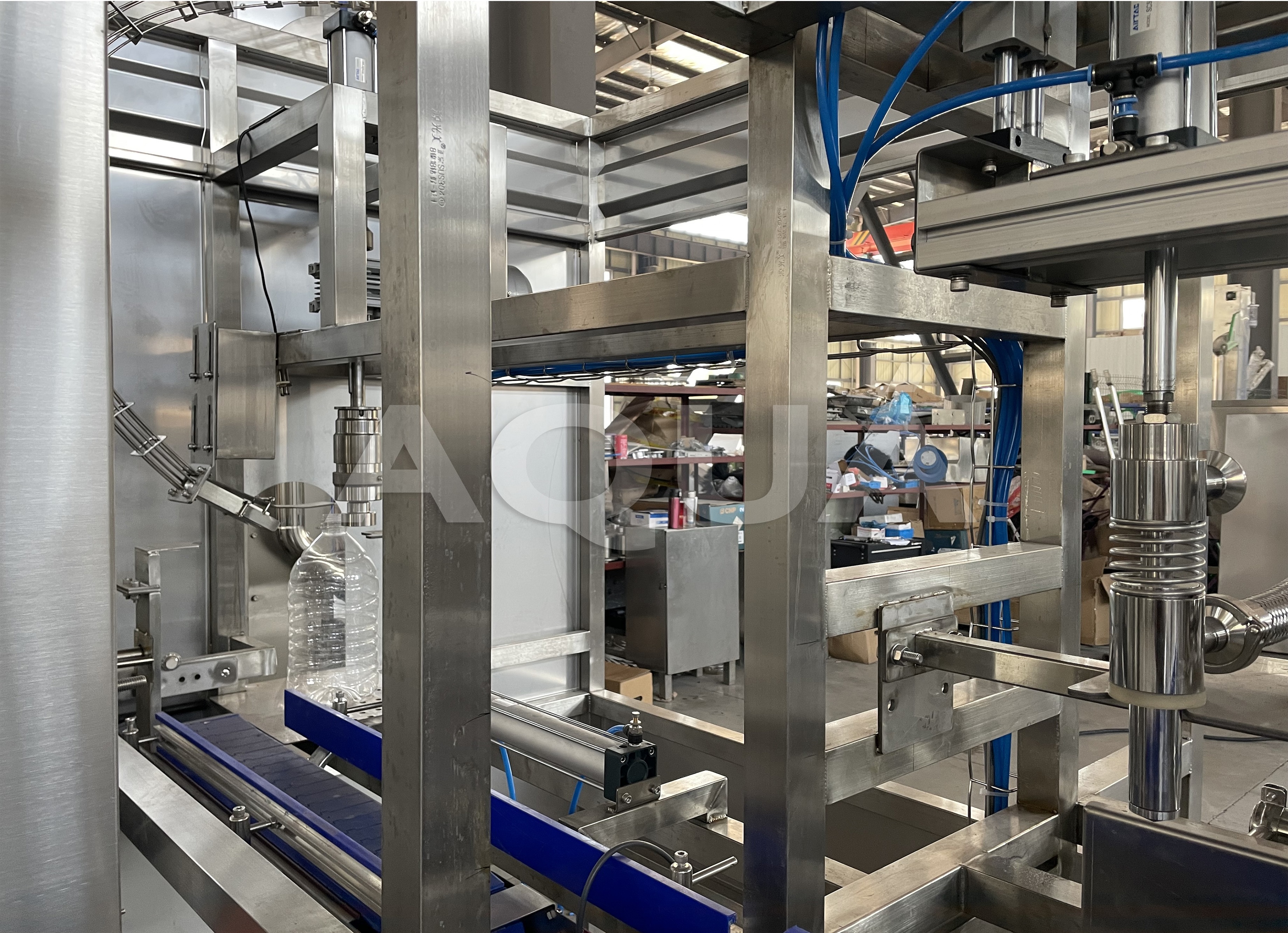

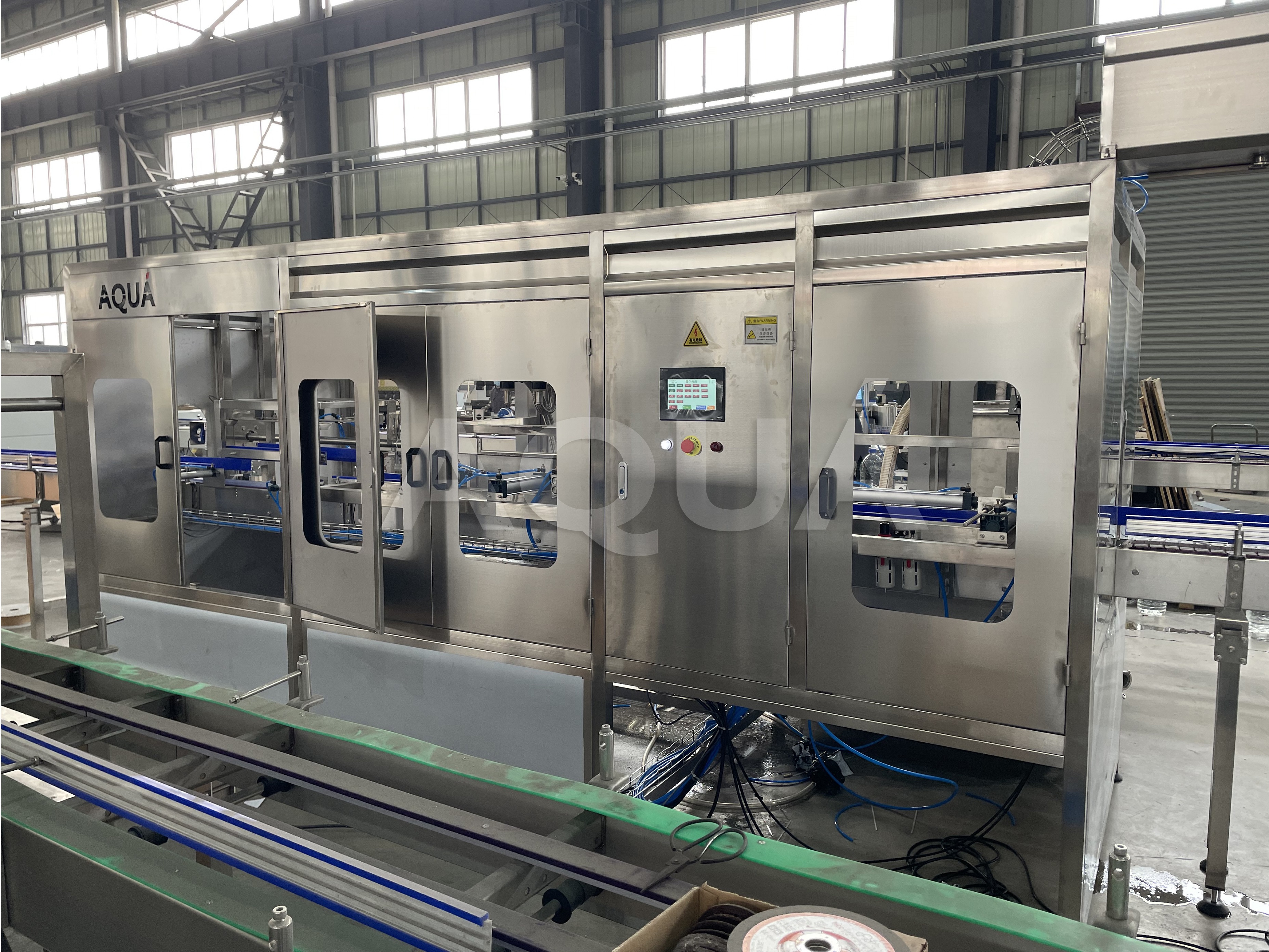

Filling machine

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

Cap closing machine

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

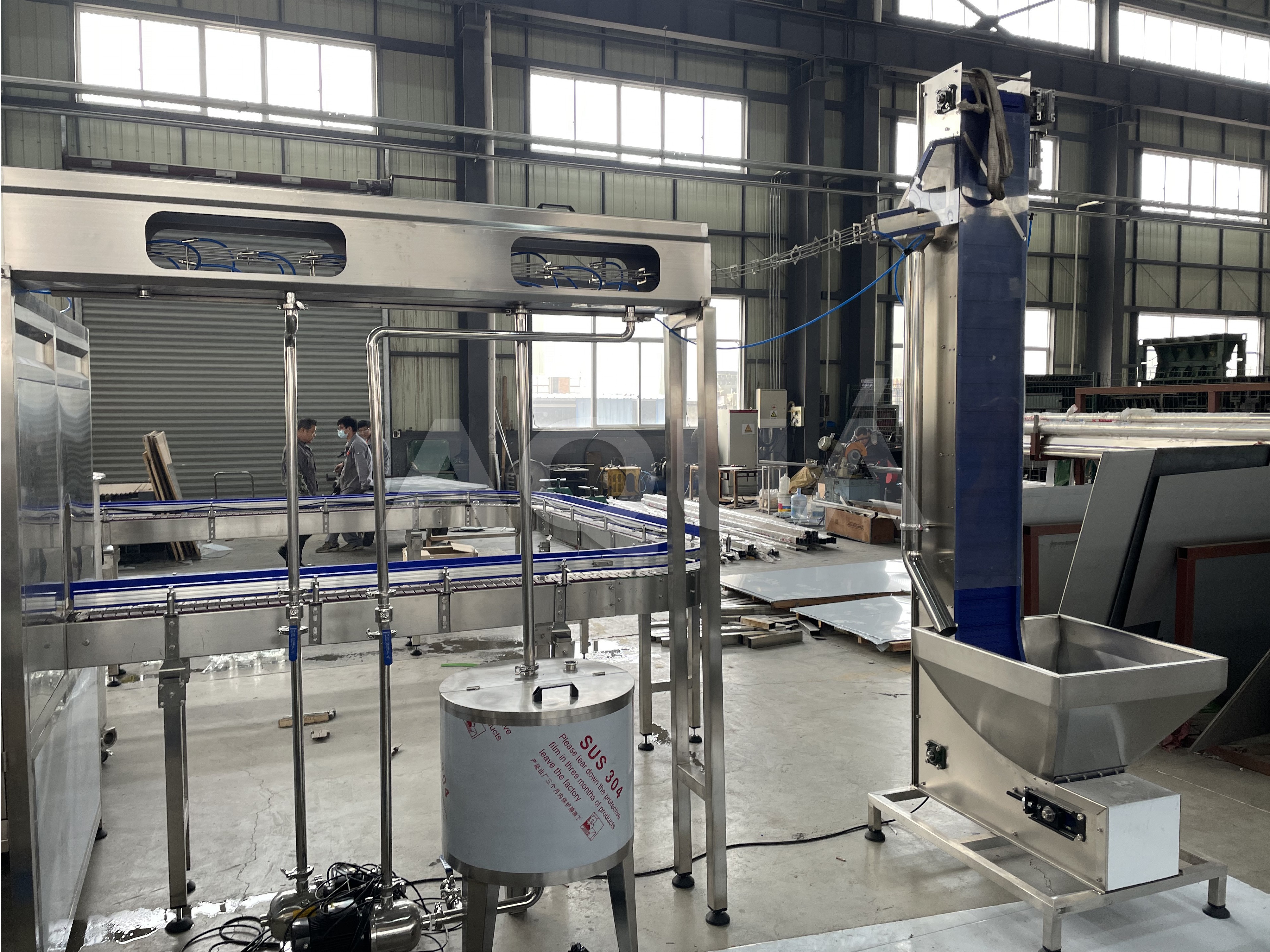

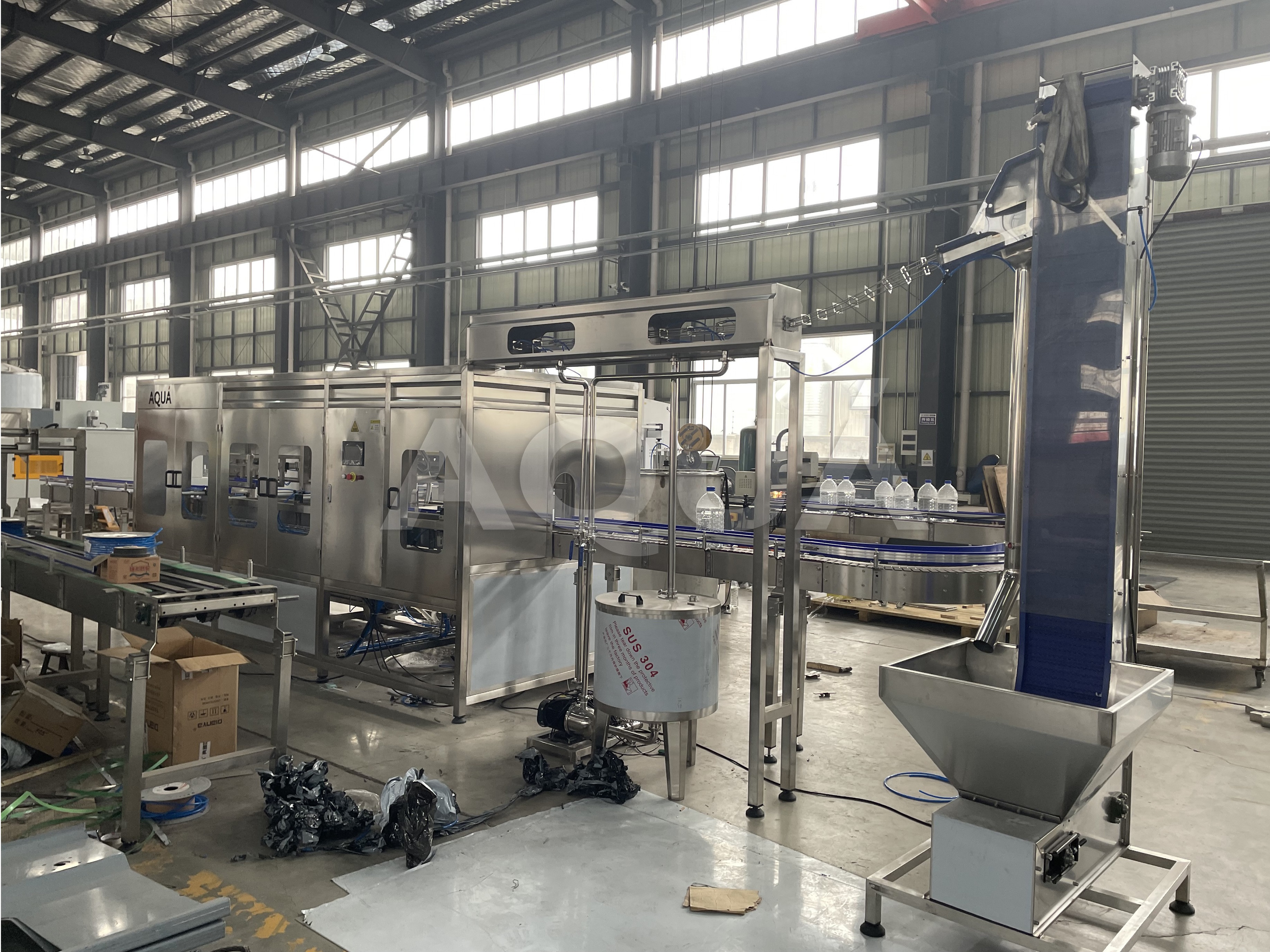

Automatic cap loader and cap on-line sterilize

-Automatic cap loader

-online cap washer with 1.8m

All SUS 304/316 Stainless steel construction

-no cap no working

Touch Screen

- Mitisubish PLC program

- Siemens Touch screen

- Easy operation

Complete Line Solution

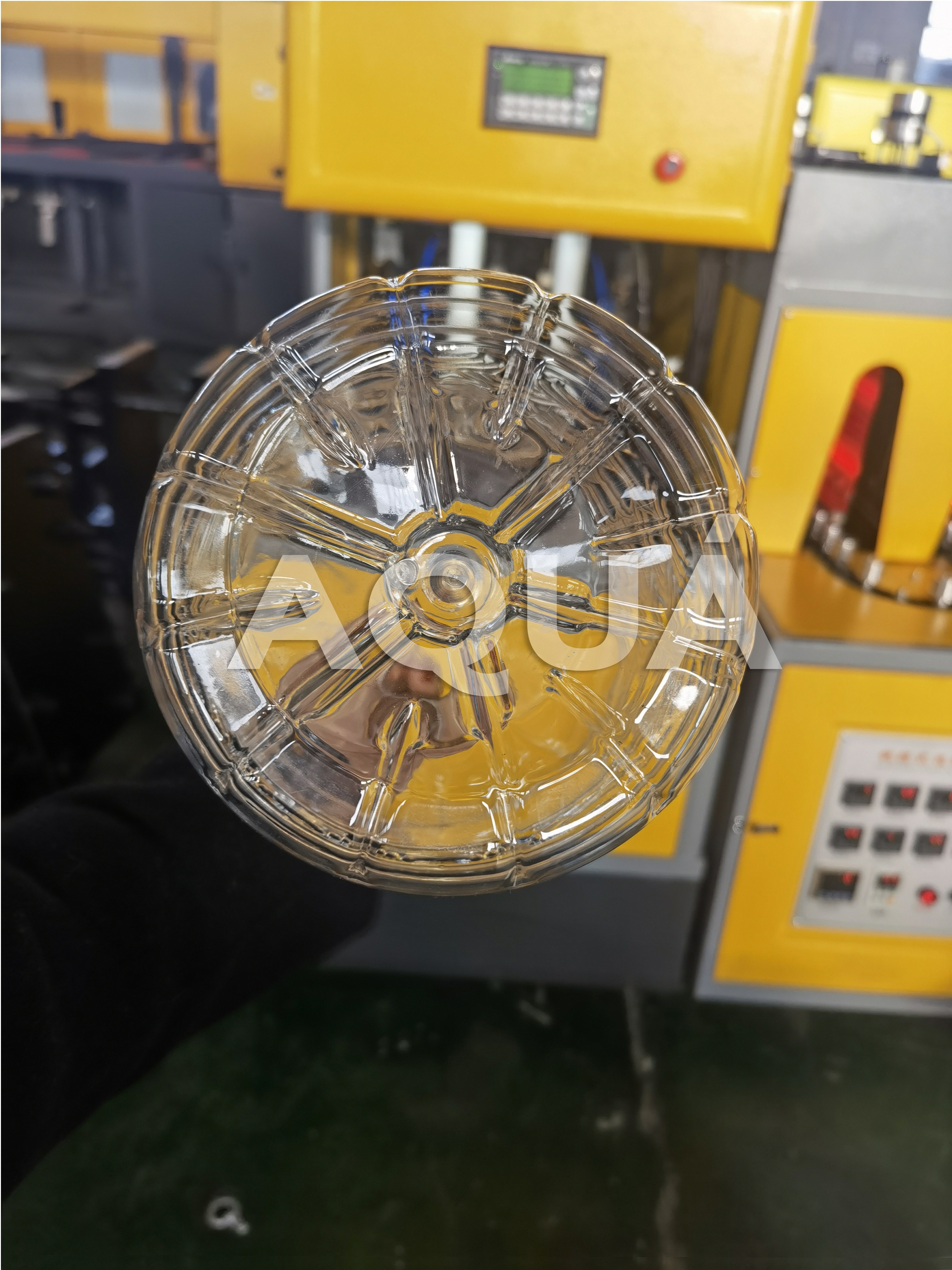

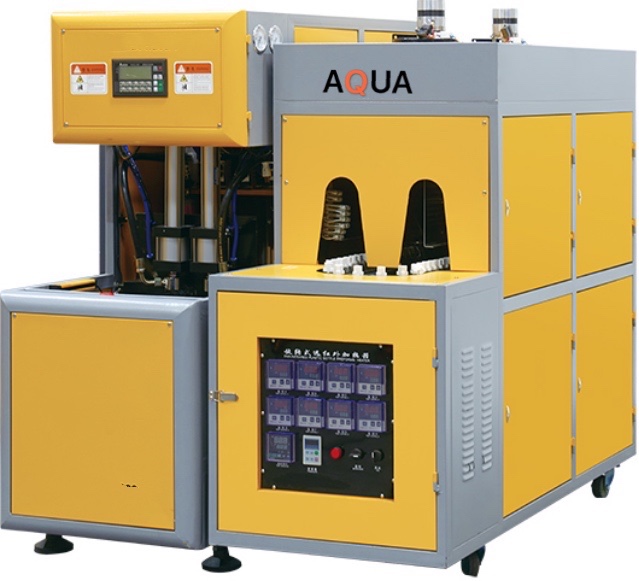

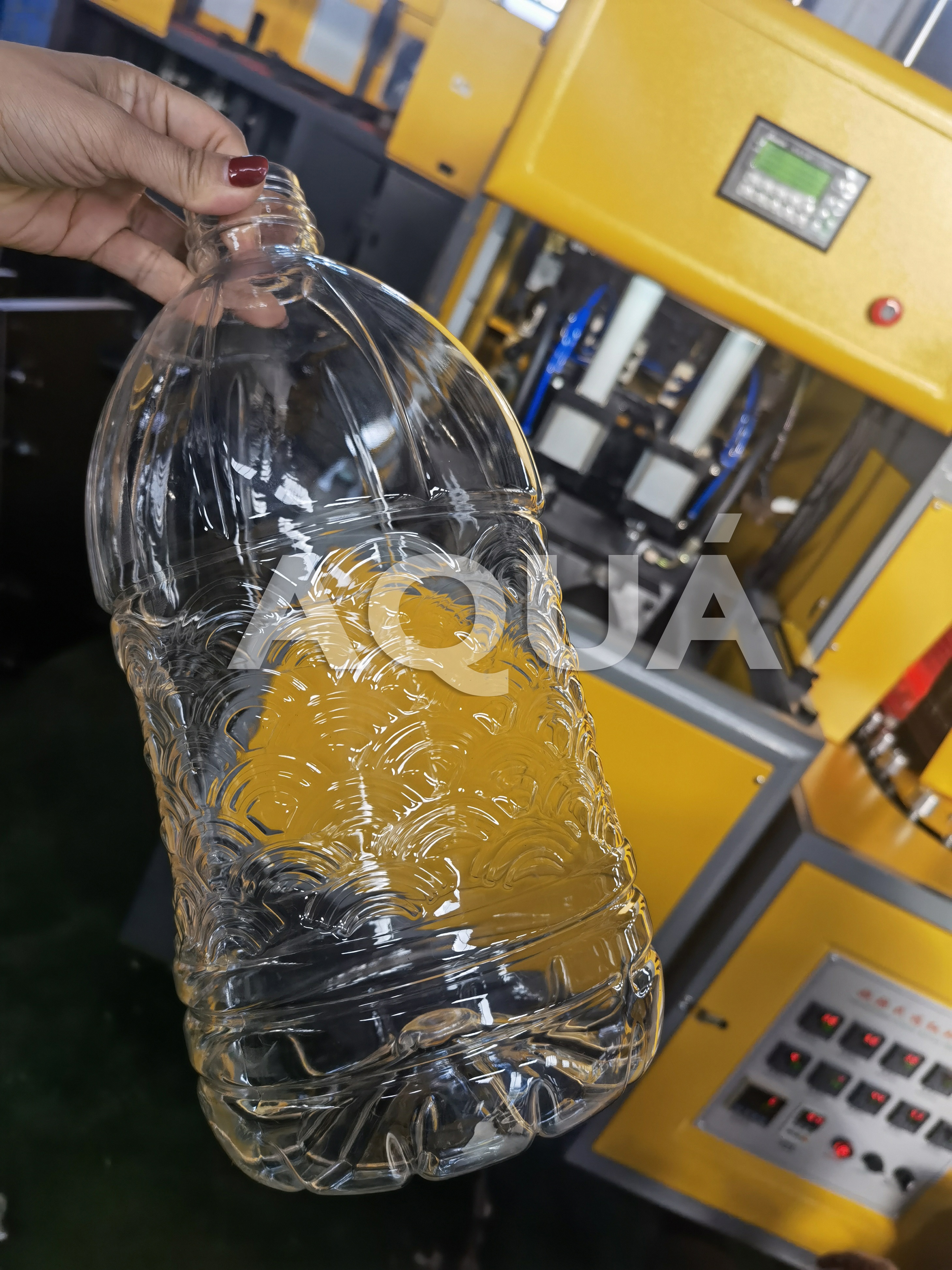

Semi automatic bottle Blowing machine

1. Production ：500-600pcs/h

2. Bottle volume : 5L-10L
3. Cavity of Mold : 2 cavities
4. Mold Material : Steel

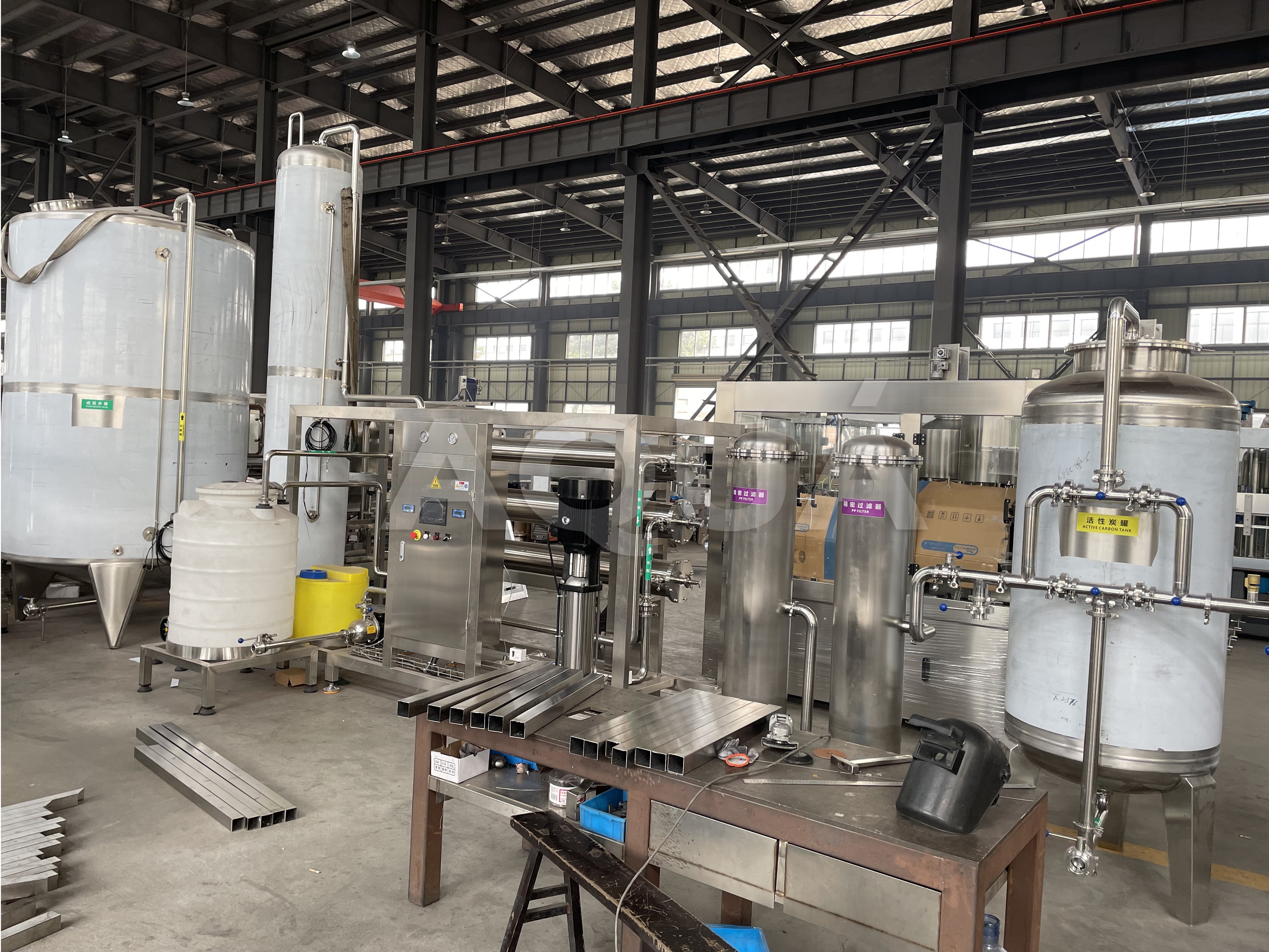

Water Treatment System

1. Capacity: 5000LPH

2. Material: SUS304

3. Filter type: RO System - DOW membrane

4. Complete water treatment system include ozone sterilizer and mixing tank

5. Storage water tank 3mm

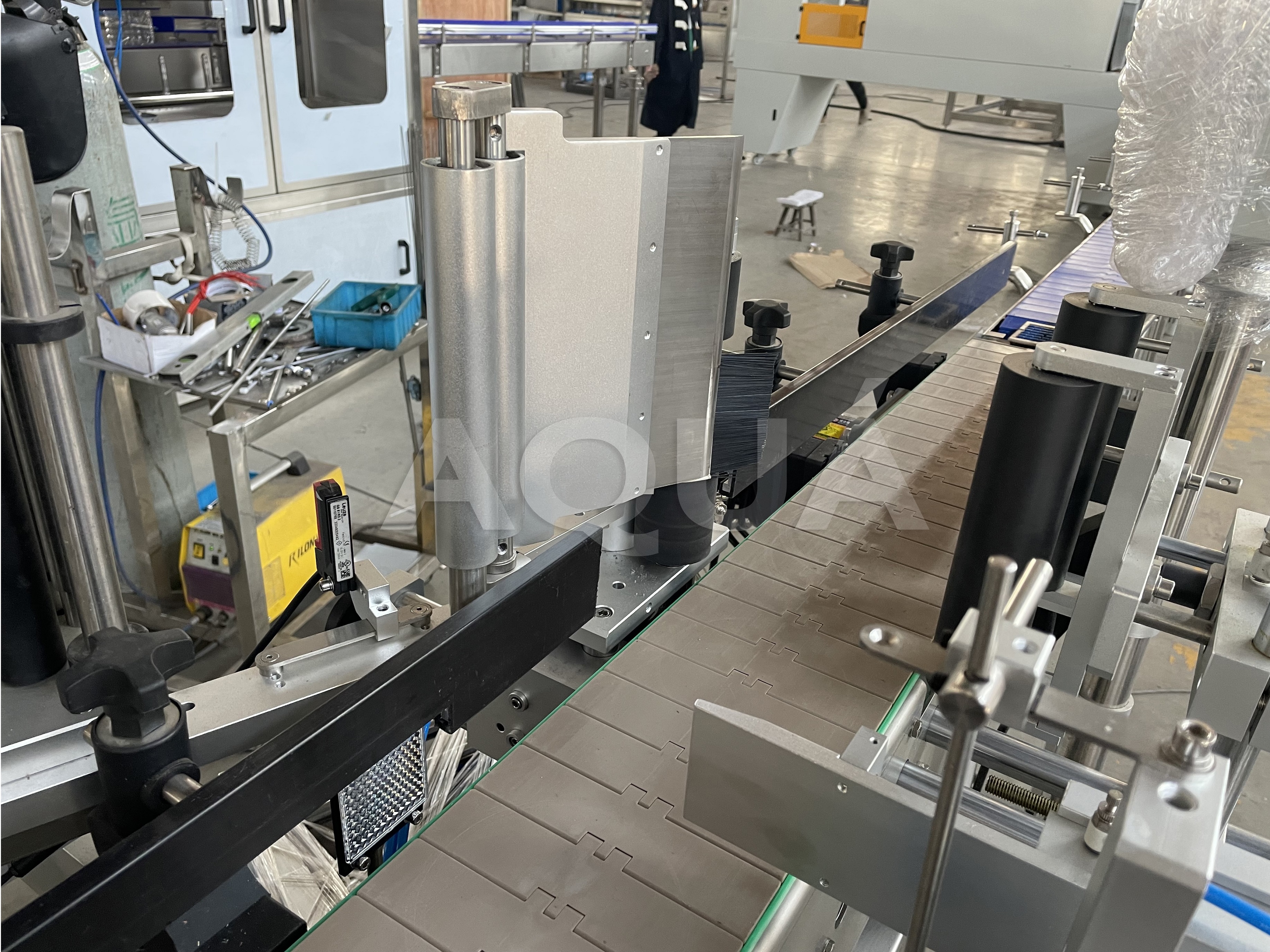

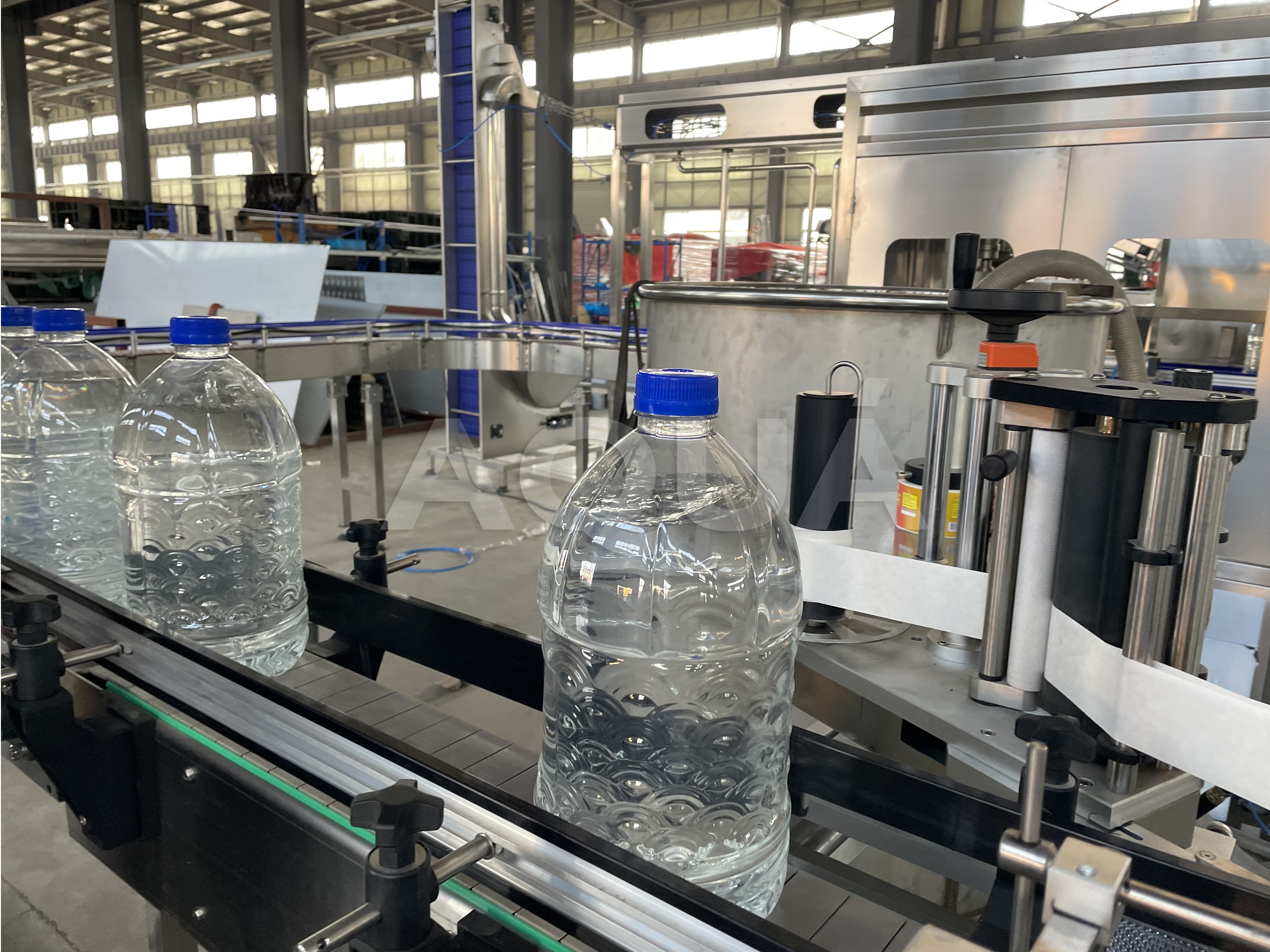

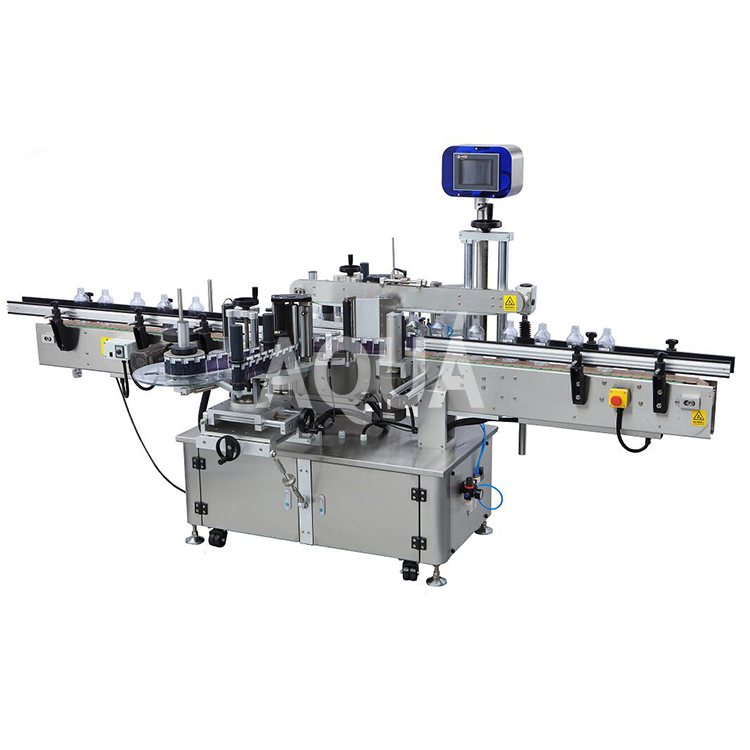

Stick Labeling machine

1. Put the stick labels on the bottle automatic.

2. According to the different requirements of customers, the labeling machine has positioning and non-positioning

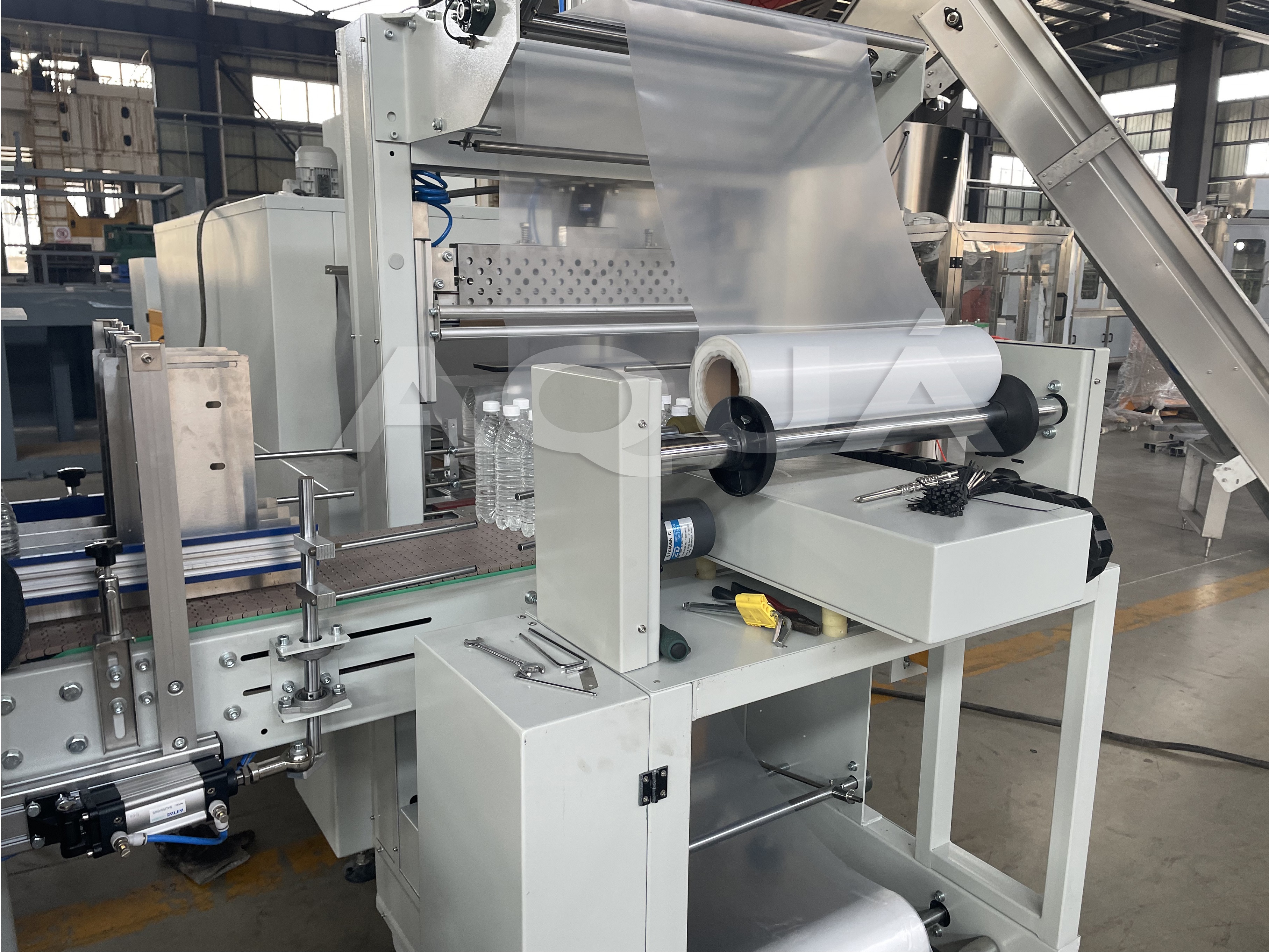

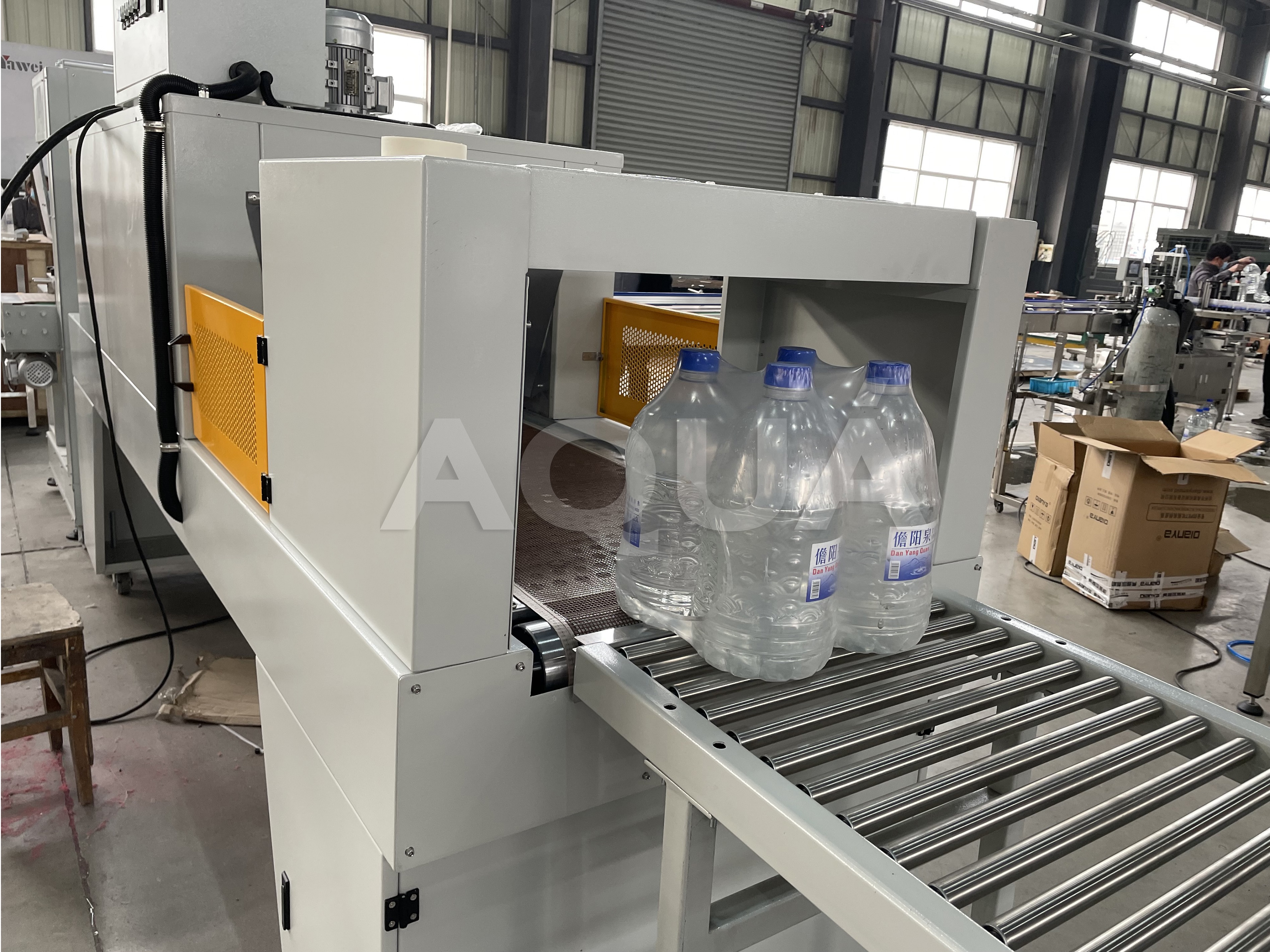

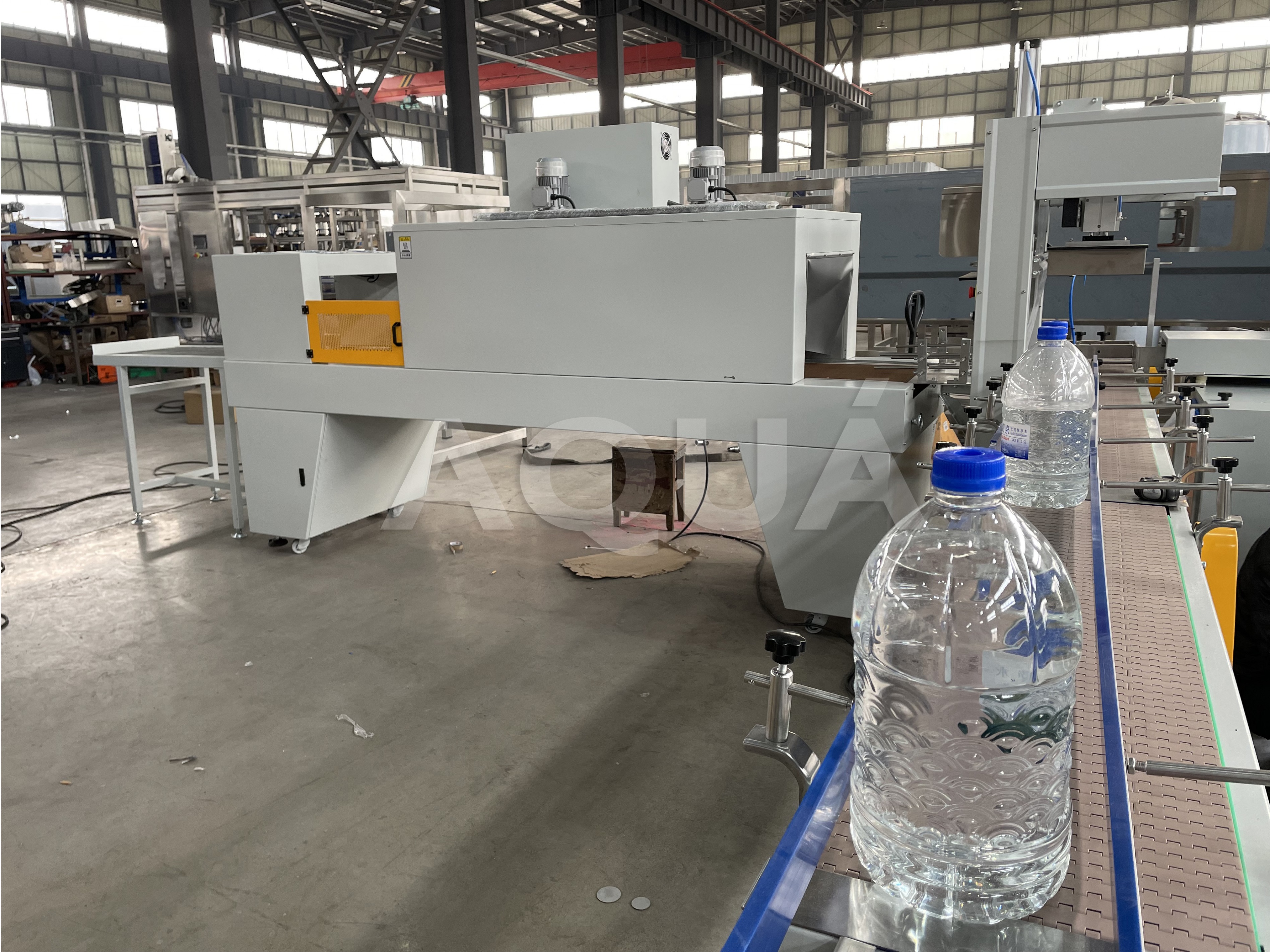

PE film wrapping machine

1. Production :5 -8 packages/min

2. Packing Type : 2x2 for 5L

Successful Project

Project in Mongolia

Project in Argentina

Project in Saudi Arabia

SIMILAR PRODUCTS

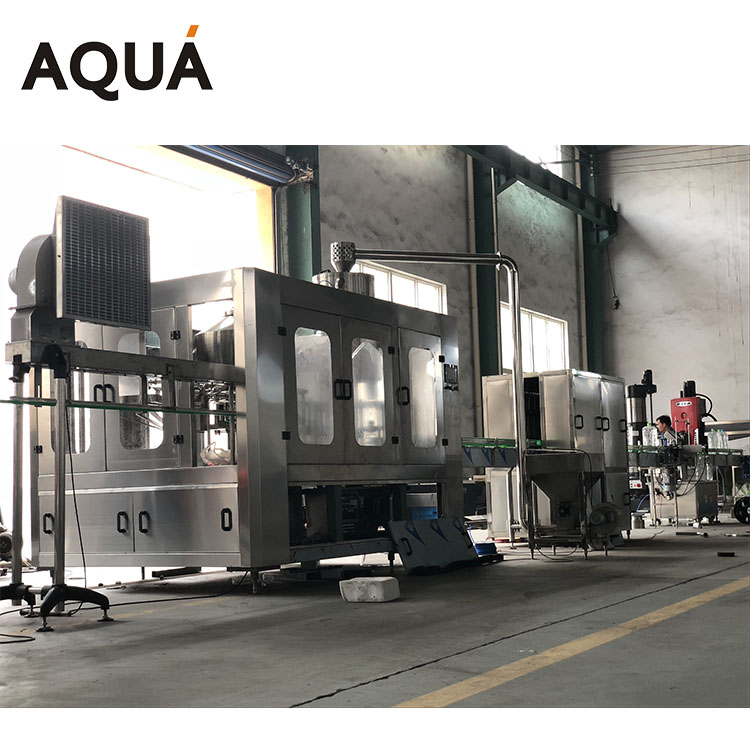

Small Bottle Filling machine

5 Gallon water filling machine

edible oil filling machine

Edible oil / cooking oil / vegetable oil /sunflower oil/ olive oil

Aluminum can drinking machine

Carbonated drinks / juice / beer/

YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.

● If we can fulfill your request and you interested in our products, you may pay a visit to King Machine site
● The meaning of visiting supplier, because seeing is believing, AQUA Machinery with own manufacture and developed& research team,
we can send you engineers and make sure your after sales service.

HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?

● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● After the factory visit, You can ensure the facility of our bank account.

SEE AQUA MACHINERY HOW TO ENSURE THE QUALITY!

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory

THE AFTER-SALE SERVICE OF AQUA MACHINERY !

● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
