Product Overview

Automatic Mineral Water Filling And Sealing Machine

We supply complete solution for the pure drinking mineral water PET bottle filling plant .

Including :

1.Water Filtration treatment system

2.PET Bottle Washing filling capping machine

3.Code sprayer

4. Automatic labeling machine

5.Automatic packing machine
6.Automatic palletizing system

7.Automatic film wrapping machine and son on

200-2000ml

5-10L

5 GALLON / 18.9L

PRODUCT SPECIFICATIONS

Technical parameter : Automatic Mineral Water Filling And Sealing Machine

Model

CGF8-8-3

CGF14-12-5

CGF18-18-6

CGF24-24-6

CGF32-32-8

CGF40-40-10

Capacity(for 500ml)

2000

3000-4000

6000-8000

8000-12000

13000-15000

16000-18000

Suitable bottle shapes

PET circular or square

Bottle diameter(mm)

Dia50-Dia115mm

Bottle height (mm)

160-320mm

Compressor air

0.3-0.7Mpa

Washing meidium

Aseptic water

Rinsing pressure

>0.06Mpa <0.2Mpa

Application

water bottling plant sale

Total power (KW)

4.4kw

5.2kw

6.2kw

7.8kw

Overall dimensions

2.3*1.9m

2.5*1.9m

2.8*2.15m

3.1*2.5m

3.8*2.8m

4.5*3.3m

Height

2.3m

2.5m

2.6m

Weight(kg)

2500kg

3200kg

4000kg

4500kg

6500kg

8000kg

Details Images

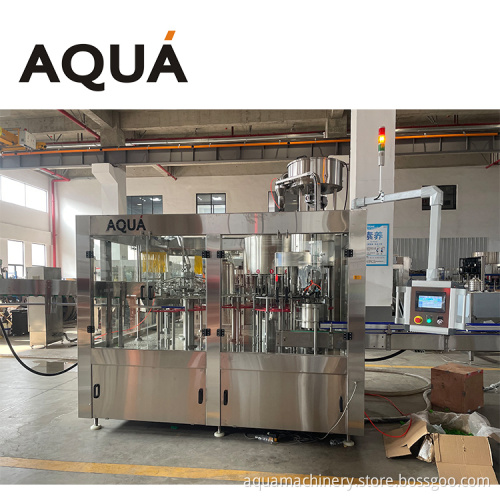

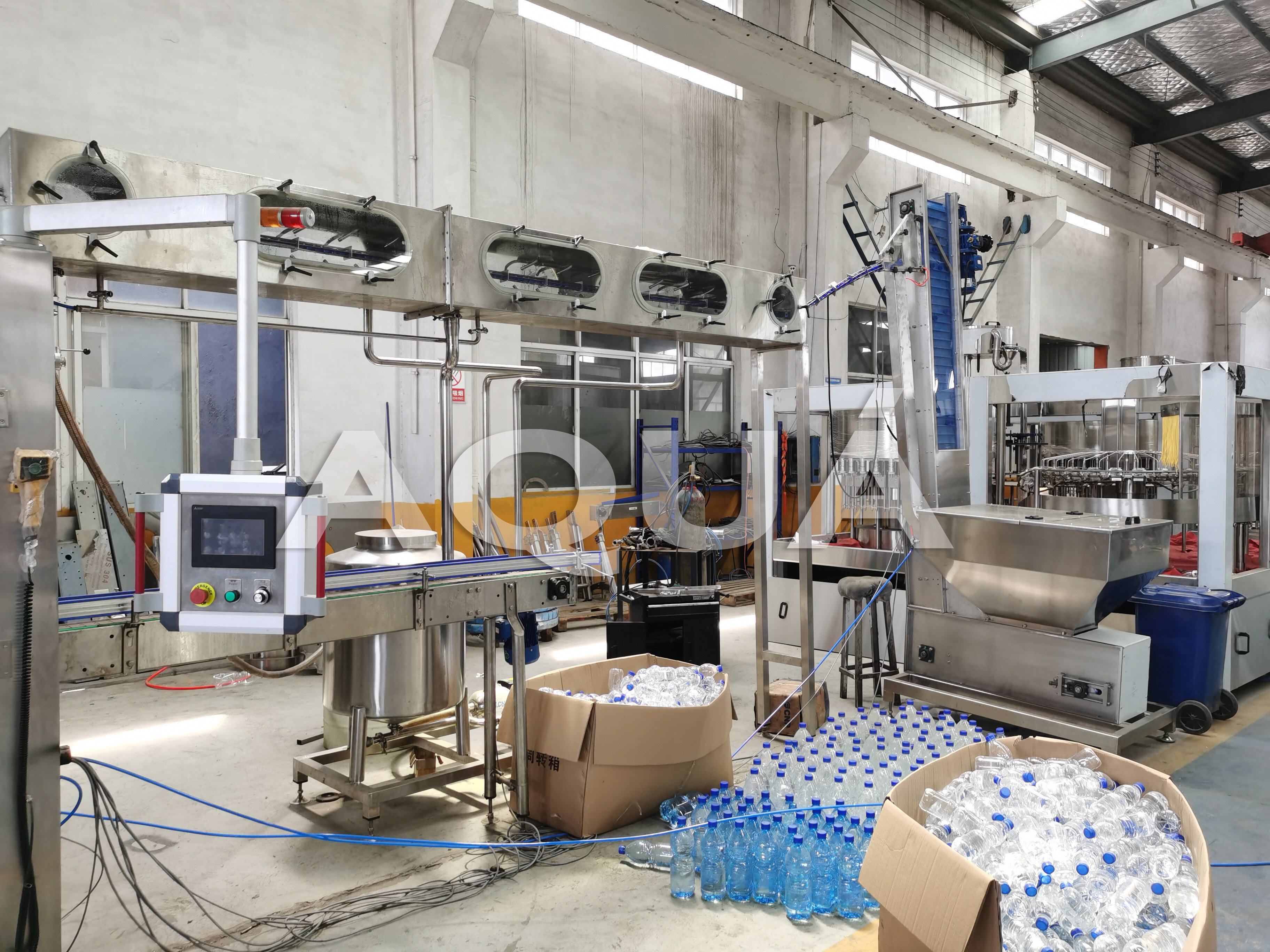

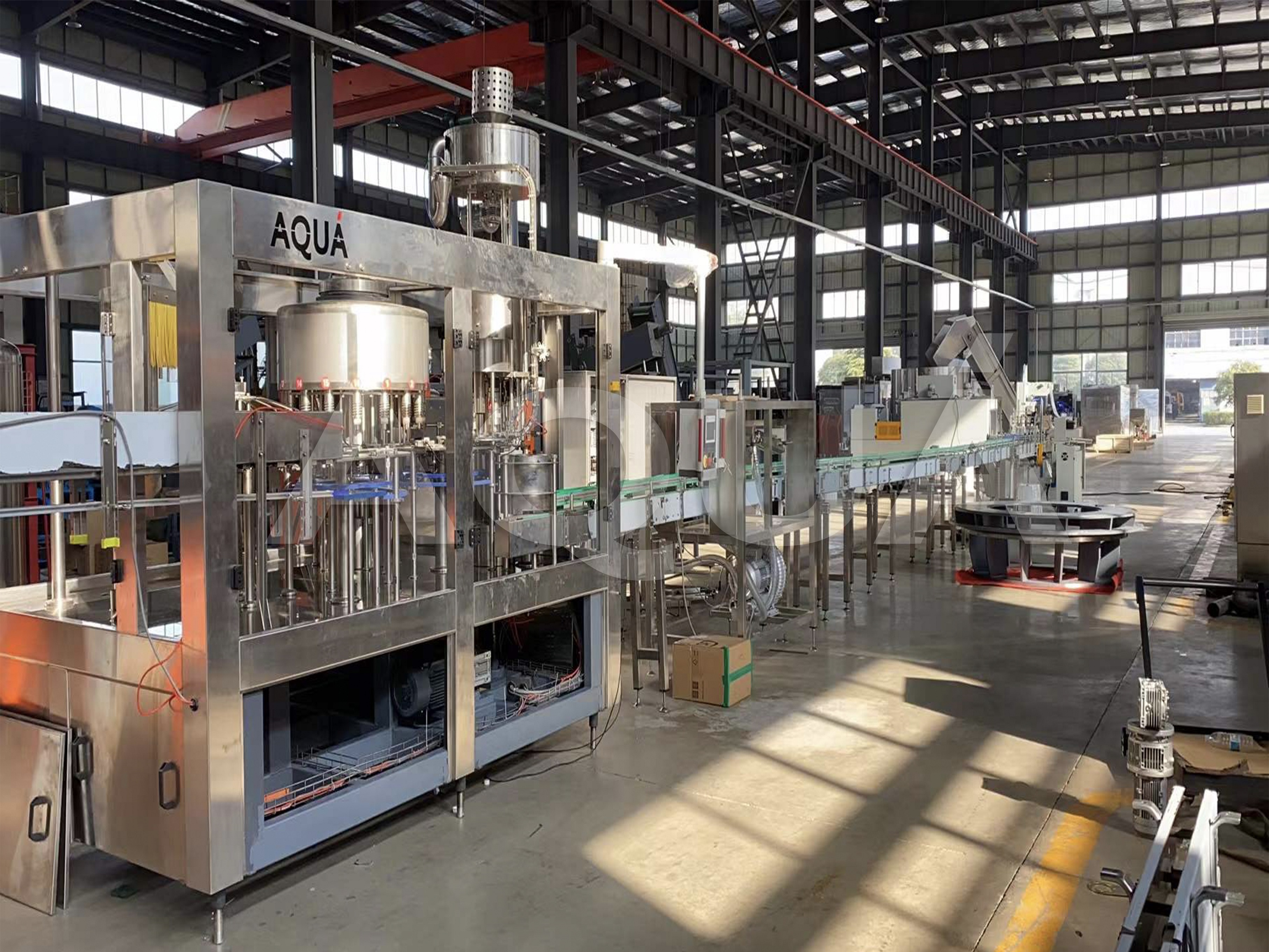

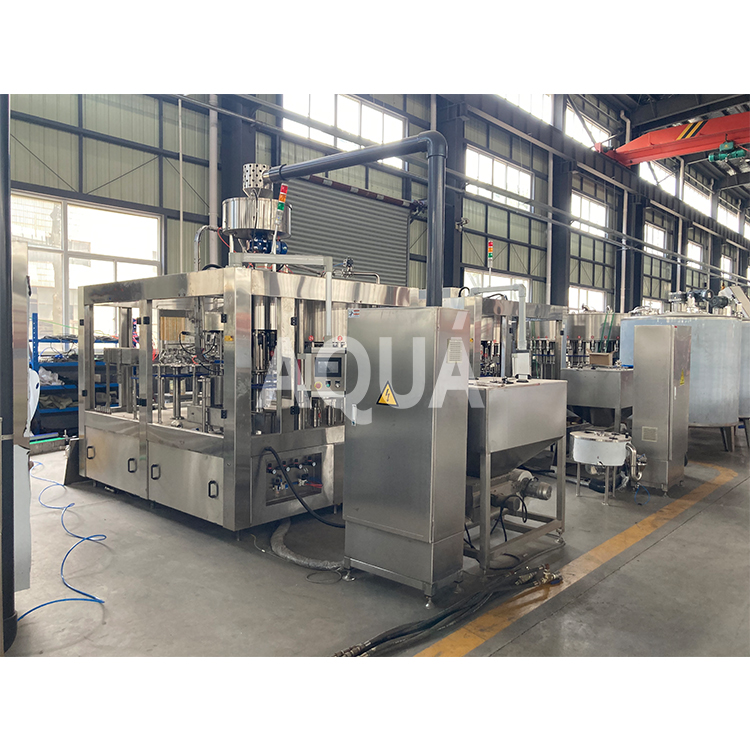

Automatic water filling machine ( Tribolock Type )

This machine is specially designed for the filling of pure water ,mineral water and other non-gas and sugar free beverages in bottles ,it is an integrated equipment for bottle washing ,filling and capping

Rinse Part

Used to wash the bottles before filling

SUS 304 material

Air conveyor inlet

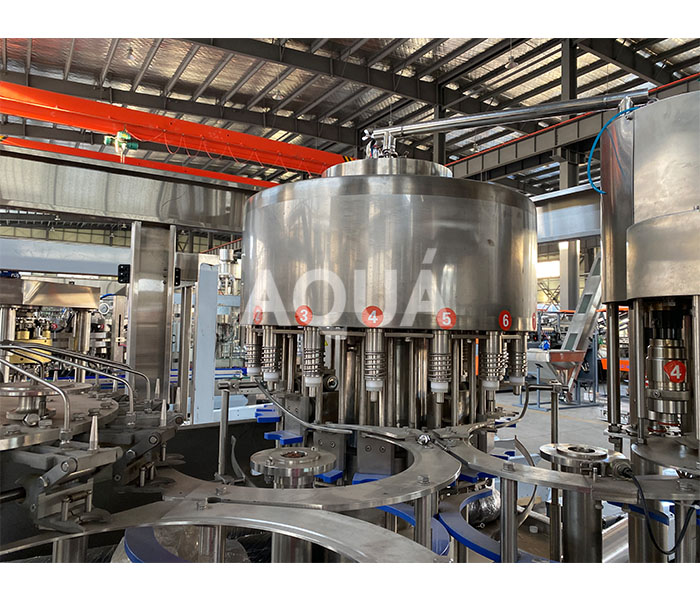

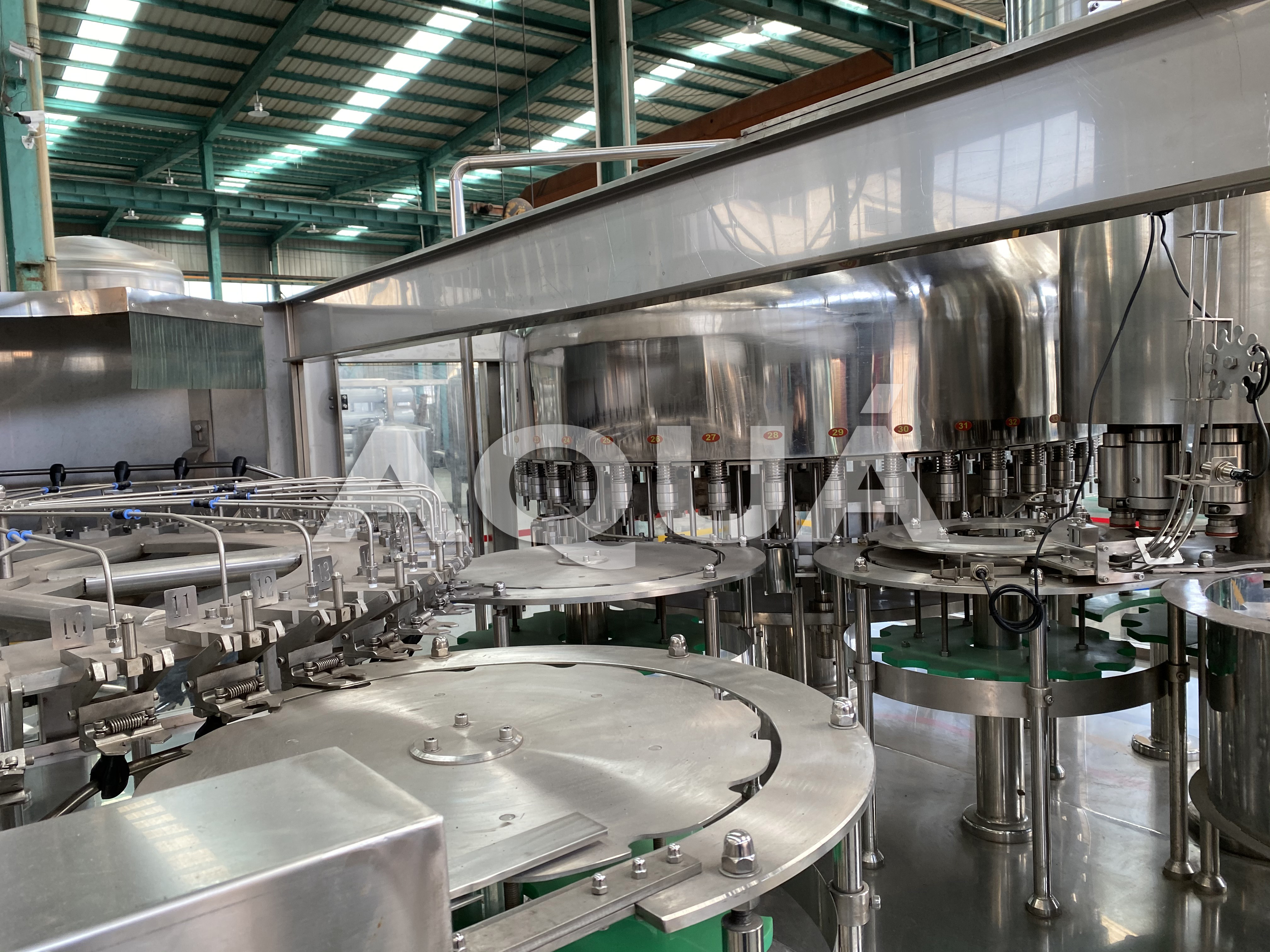

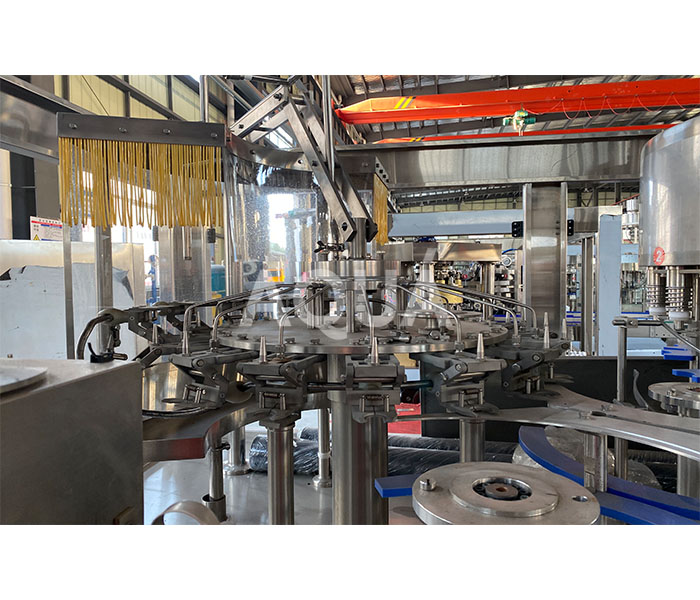

Filler Part

Used to Fill water into PET bottles

SUS 316 material

transferred by star -wheel

Capping Part

Used to Put the caps on the bottle

SUS 304 material

Automatic cap loading

Cooperated Electric Brand

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

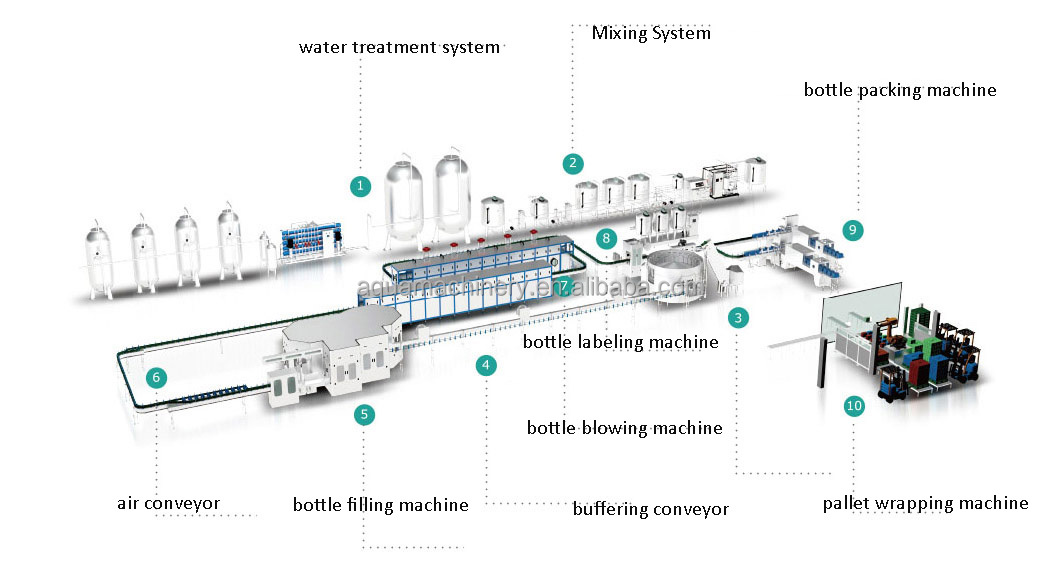

Complete Line Solution

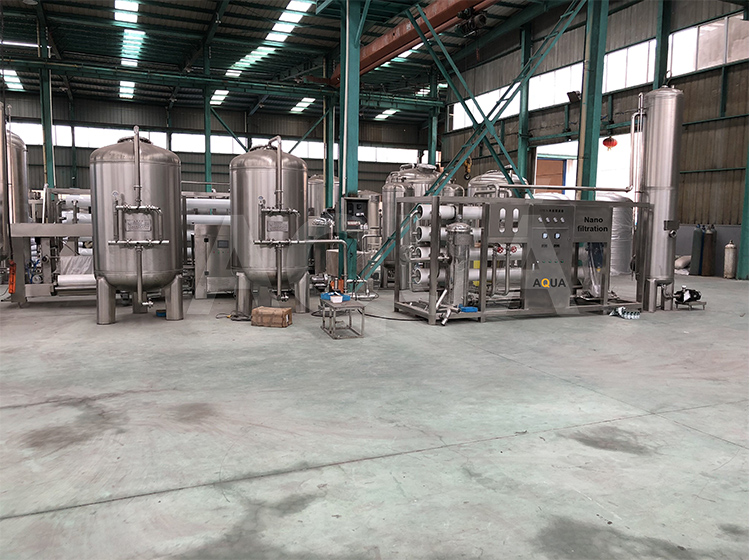

Water Purification System

According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants

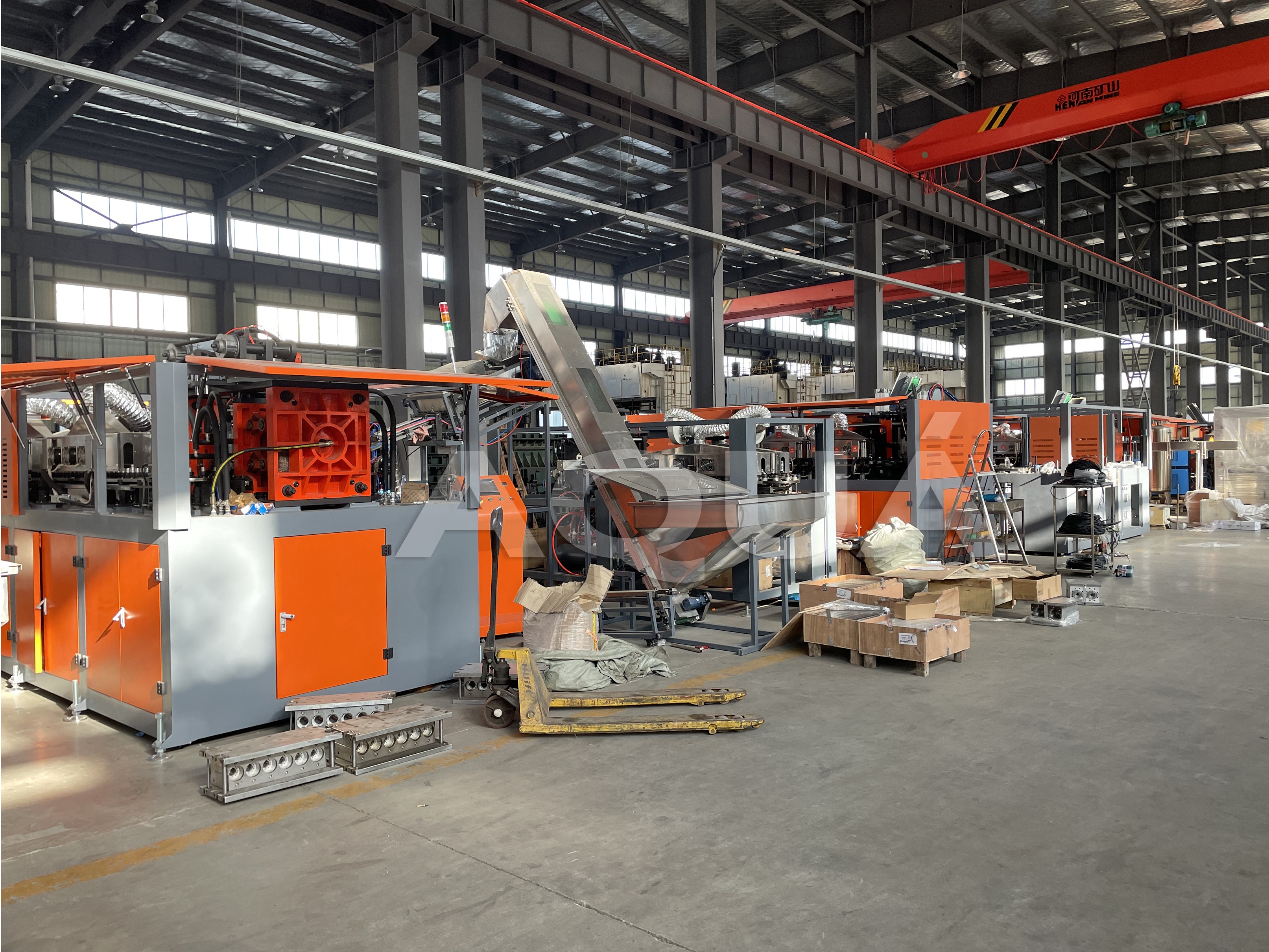

Bottle Blowing Machine

The blowing machine is making by our factory,not from other supplier, so it is our advantages.The cooperation between the devices and the stability of the devices are controlled by themselves

Alkaline water Ionizer system

Function : to increase PH between 7-10

Advantages: without any chemical only electrolysis tech.

Aluminum can filling and capper

It is suitable for all kinds of liquid, Water, juice, carbonated drink, beer, energy drink etc.

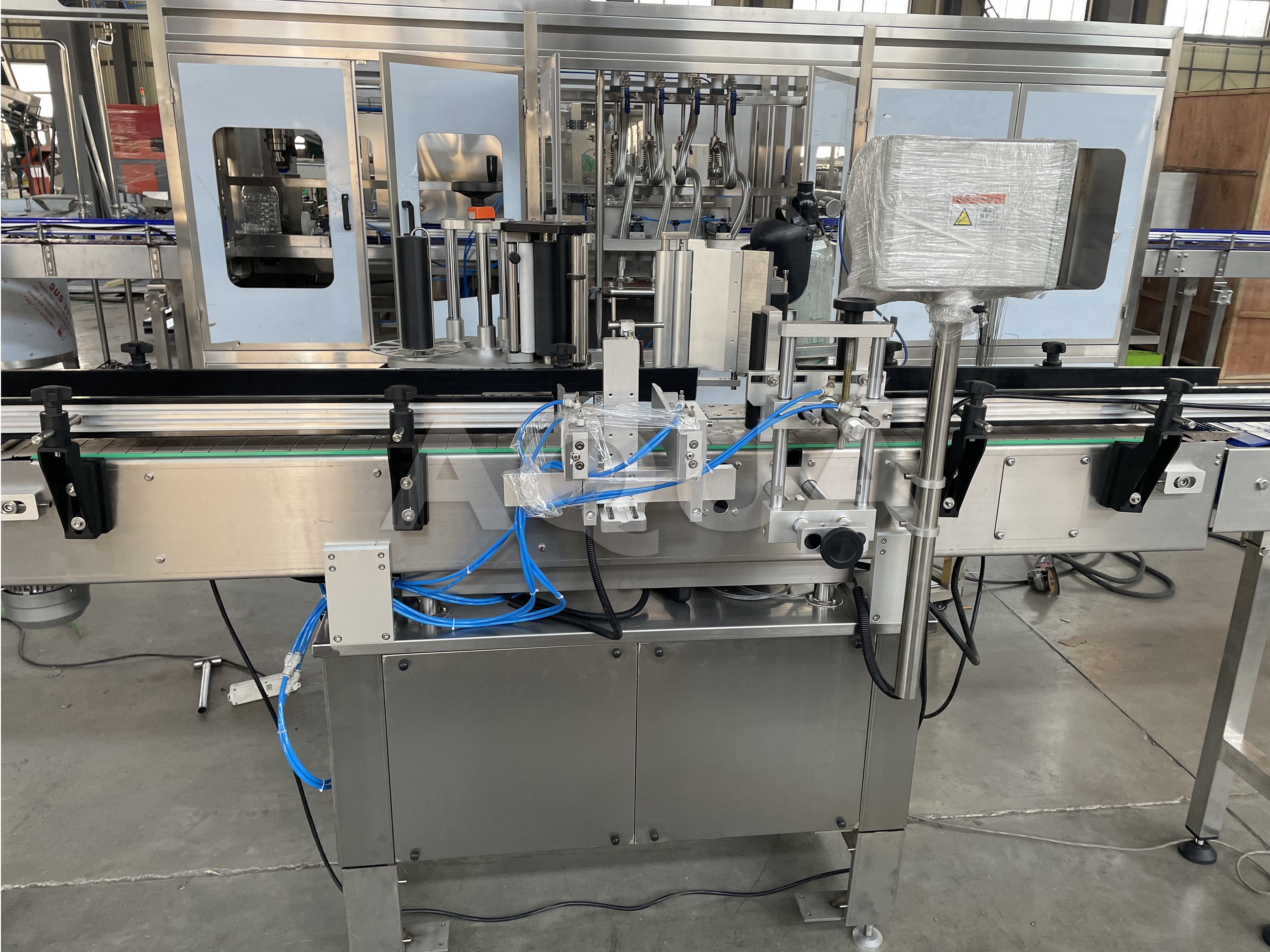

Labeling machine

According to customer request and market demand ,we provide the better solution for the final product package design, We have various kinds of options .like PVC sleeve label ,BOPP hot glue label,Adhesive stick label,Cold glue paper label.

PE film wrapping machine

PE film wrapping machine, carton packing machine for choose. and PE film wrapping machine with transparent film and colorful film, depends on customer requirement.

Turnkey Project

Successful Cases Recently, appreciated to share more videos.

1. 12000bph water filling line to Guinea Bissau

2. 8000bph water filling line to Armenia

3. 600bph 5L water filling line to Mongolia

CGF 23-24-8 water filling machine

From A to Z Project, Bottle blowing machine, water purification system, water filling, labeling and packing

CGF 16-16-5 water filling machine.

complete line from blowing machine, water filling labeling and packing machine (Customer has water purification).

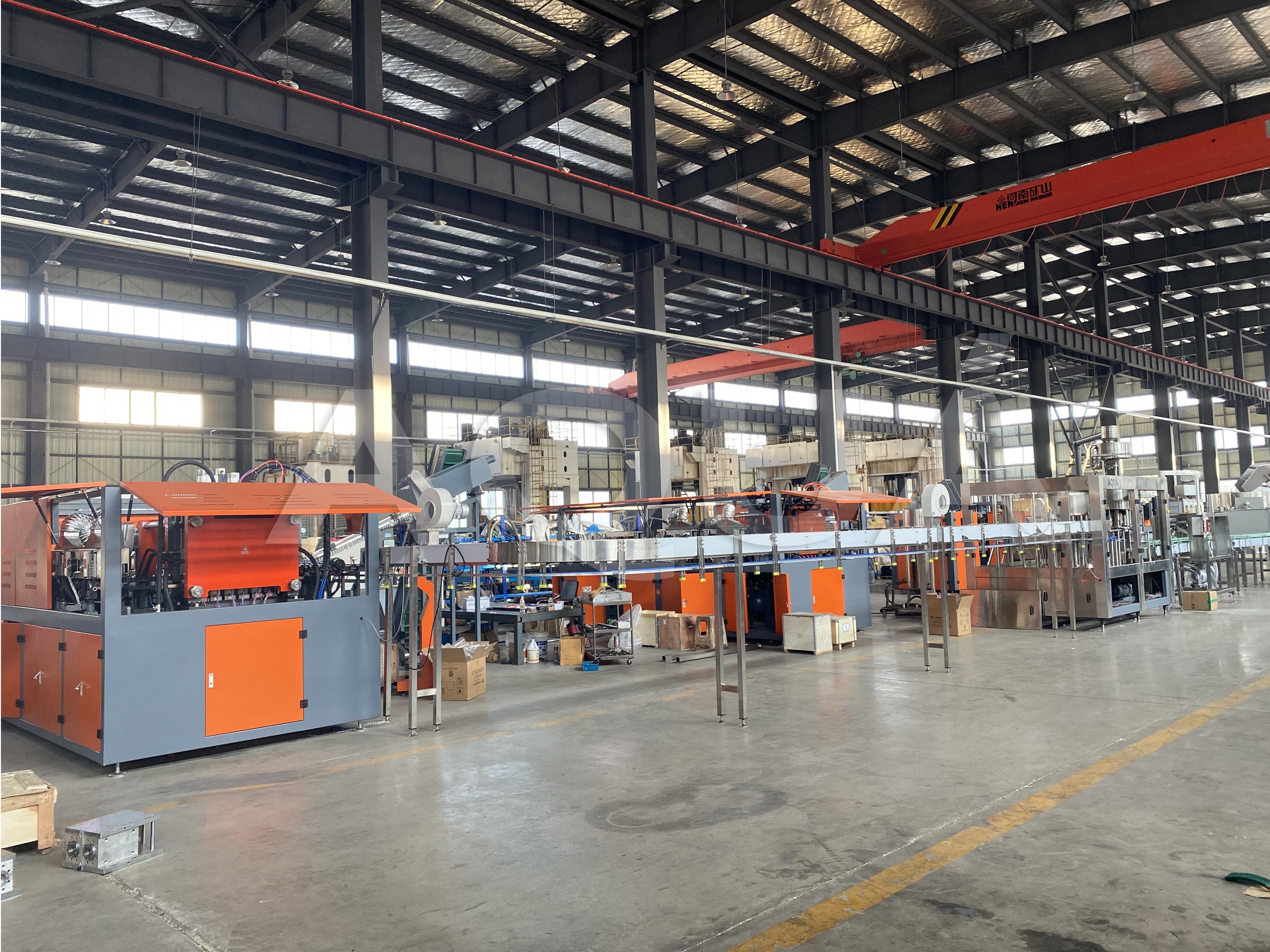

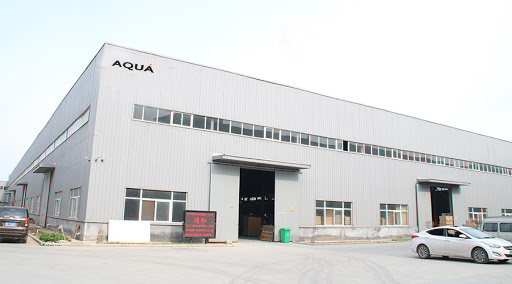

Zhangjiagang AQUA Machinery

*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.

About US :

*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and
pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as
per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

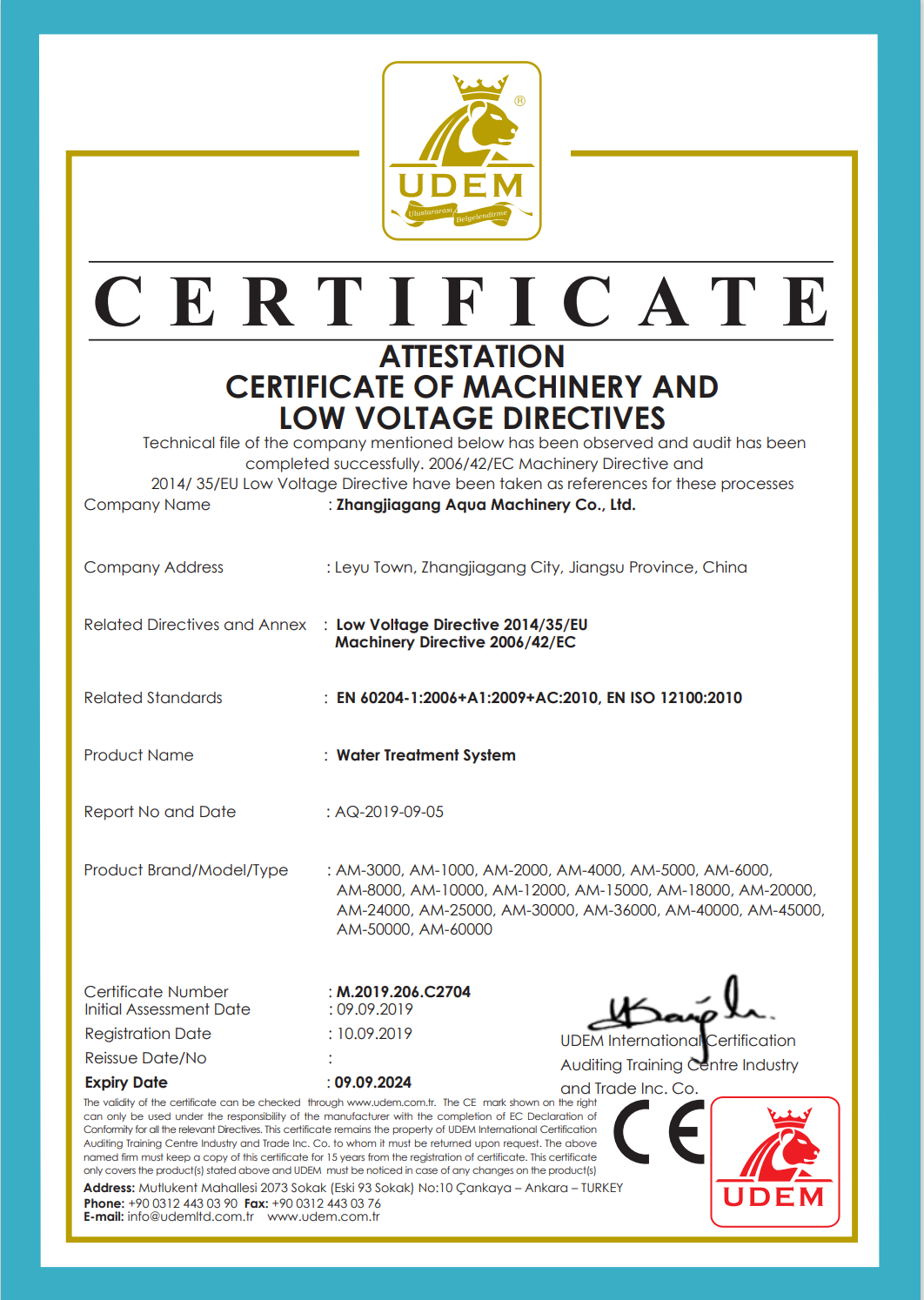

Certifications:

Feedback From Customers.

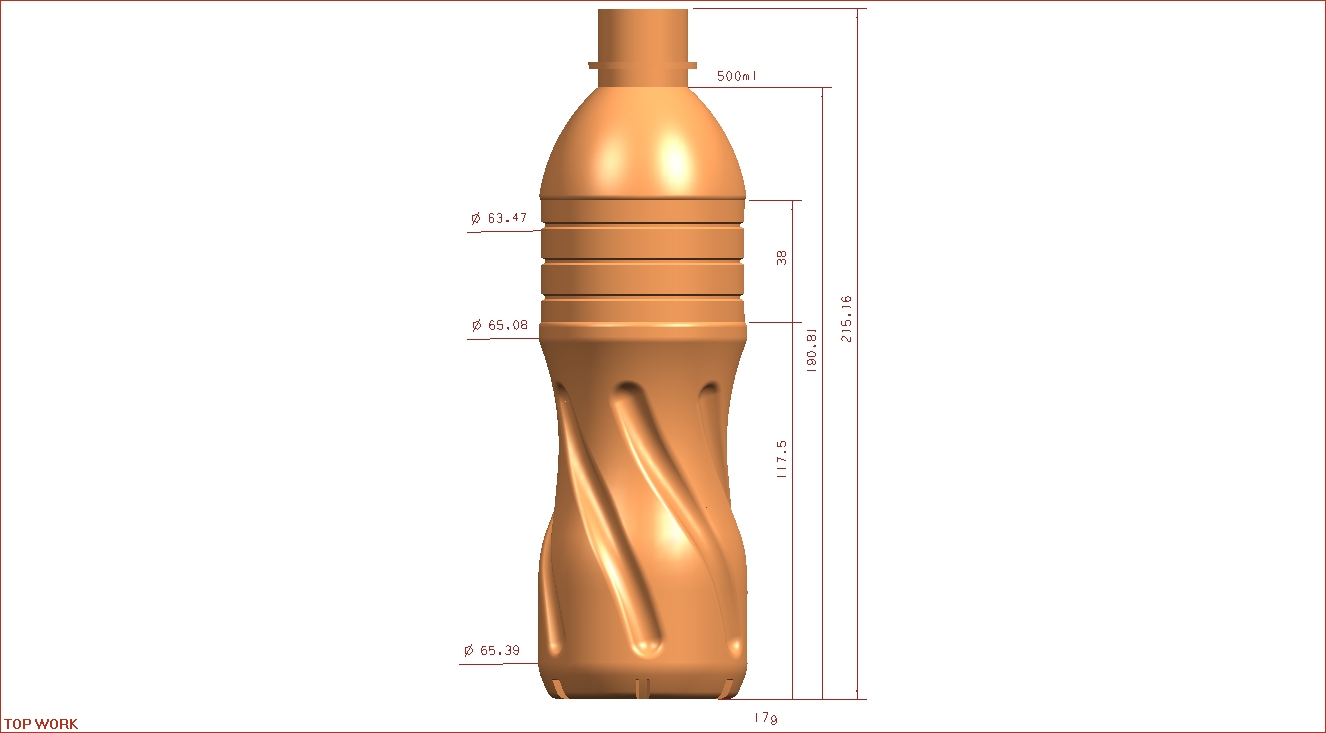

Bottle Drawing Design

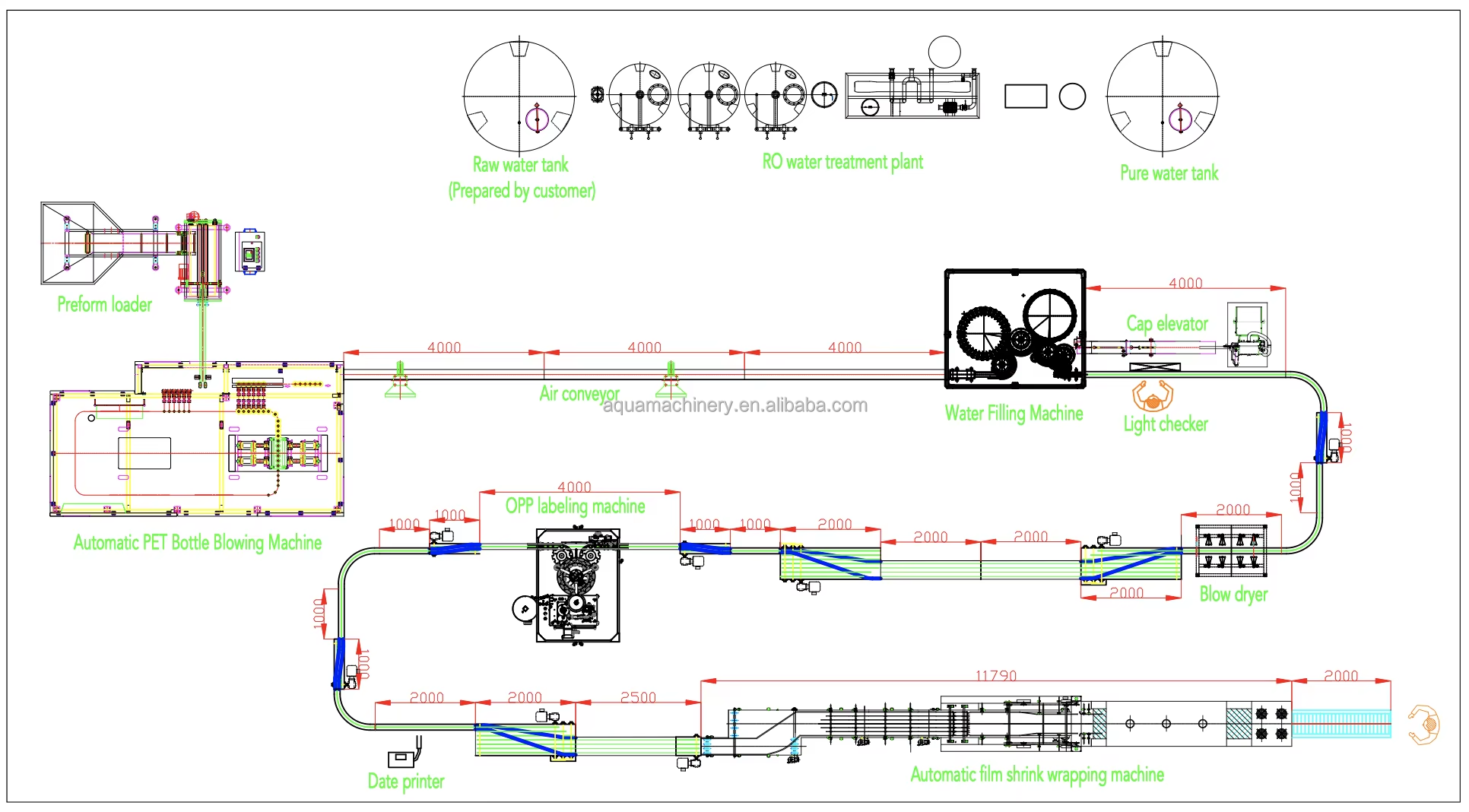

Layout design

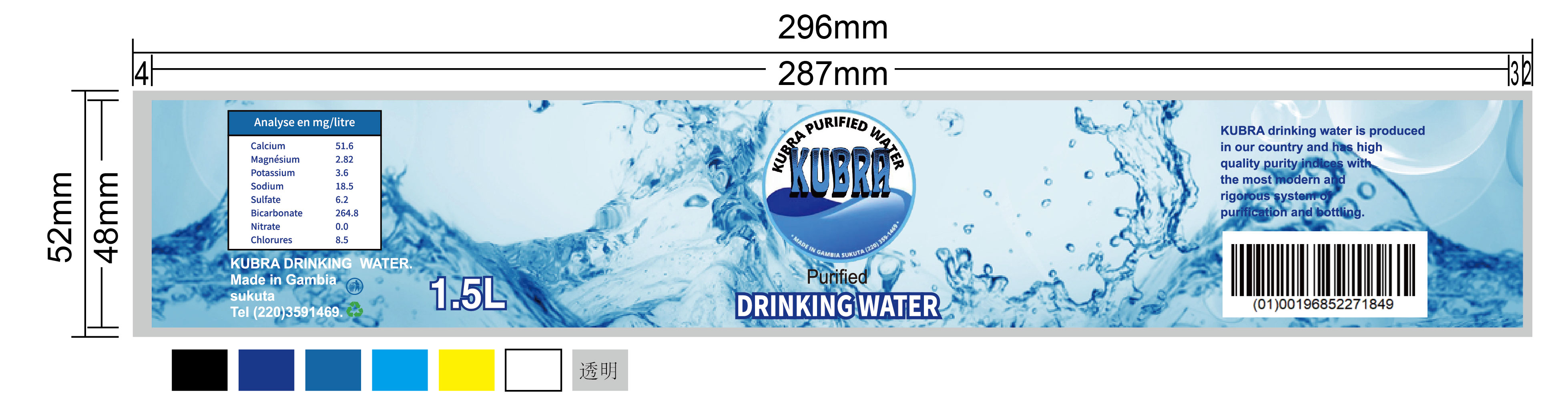

Label Drawing

Customer will send us PDF or AI format label Drawing, we also have service to print labels and we can help you to do some simple adjustment.

Choose More Products

1.Q:Are you a factory or trading company?

A:We are a factory, professional water treatment system manufacturer and small bottle water filling machinery with about 10 years experience. Especially for the blowing machine, 99% water filling machine supplier bought the blowing machine from supplier, but we are not. Factory covers an area of 12000 square. There have been more than 50 countries use our products.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in jinfeng town,Zhangjiagang city,Jiangsu province,China. about 2 hours away from PVG Airport . All clients are warmly welcome to visit us !

3.Q:How about installation ?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back,accommodation and Salary. We have engineer teams in Indonesia and Saudi Arabia, , it is easy to get after service and help around these countries.

4.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale service

5.Q:What is the features of our company?
A: We provide turnkey project for customers, including sale and after-sale service; complete production line equipment supply; bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc
