Water Bottling Plant

Turnkey Project Water Bottling Plant

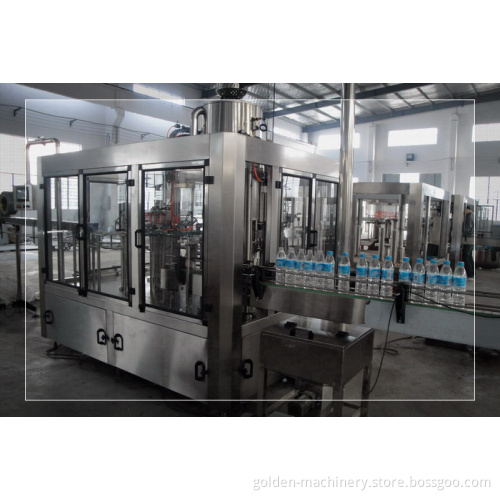

This series of mineral Water Filling Machine are applied to the production of pure water, mineral water, it integrates bottle washing, filling and capping into one body of this machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.





Main Feature:



This machine has a compact structure, perfect control system, easy to operate and highly automated.


The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.


By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.


The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.


This machine has a high efficient cap arranging system, perfect cap feeding and protection device.


Equipped with perfect clean management system to ensure the bottle clean.


Only by changing the star-wheel, can realize to fill the changed bottle shape.


The machine adopts perfect overload protective device can ensure the operator and machine safe.


This machine adopts adjustable frequency converter.


The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.


The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.


The electric components and pneumatic components are all introduced from world famous brand products.






Origin of Main Parts

Item	Part Name	Brand name
1	Frequency converters	MITSUBISHI
2	PLC	MITSUBISHI
3	Touch screen	MITSUBISHI
4	Electricity panel	Well organized
5	Photoelectricity Control parts	OMRON
6	Pump	CHINA

Main Technical parameters

Model	CGF16126	CGF18186	CGF24248	CGF32328	CGF404010	CGF505012	CGF606015
Heads of washing ,filling , sealing	16-12-6	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15
Production capacity (bottle/hour)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000
Suitable bottle diameter(mm)	φ=50-100 H=170 330-1500ml
Spraying pressure	2~3
Motor power	Main motor 1.5kw	Main motor 2.2kw	Main motor 3kw	Main motor 4kw	Main motor 7.5kw	Main motor 9.5kw	Main motor 12kw
Power of outer vacuum pump	0.75	1.1	1.5	2.2	2.2	3	4
overall dimension (LxWxH)	2100x 1400x 2500	2460x 1720x 2650	3100x 2100x 2650	3500x 2500x 2650	4600x 1800x 2650	5200x 4500x 3400	6500x 4500x 3400
Weight	2500	3500	4200	5500	6800	7600	9800

Technology service



1) Installation and adjustment



Ø After the equipments are arrived at the customer`s site, the customers is responsible for unpacking and arranging the equipment according to the placement drawing; and do under our install-adjust technicians` guidance.


Ø According to requirement of water, electricity, air and steam consumption and the demands of quality level and pipeline, the User should connect the wire, cable and pipe of water, air and steam to the special position ordered in the installation area of production line ahead of time. Other relevant matching equipment and project should be finished before we adjust our equipment.


Ø We`ll bring a suit of portable installation and adjustment tools ourselves during the period of installing and adjusting, the other instruments we need should be furnished by the customer for free including oxygen, acetylene angry, argon, etc. needed in the installation and adjustment site.


Ø The customer should dispatch the capable person to accept training in the installing site.



2) Training


We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipments, control and operation of the equipments. The training lessons are finished in the process of installation and adjustment. Through training, users' technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time.


3) Quality assurance


We guarantee the goods offered are brand-new, unused, with latest design and suitable material made, and we guarantee the specification of the equipments is consonance with the contract.


We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc that all belong to our responsibility.


4) Maintenance


Offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
