Lab chocolate milling machine

  Product Description    MQM   Chocolate Ball Milling machine
    1.This chocolate machine is used to melt chocolate raw materials, such as chocolate fat, cocoa powder, sugar etc. Chocolate ball mill is the basic machine to melt chocolate material; this mini chocolate machine can also melt oil-bearing material, fluidness and some chemical raw material.   2.This machine is very small, very popular among small chocolate shops, family workshops etc.   BASIC SPECIFICATION:


effective volume	5L
milling time	8-12H
total power	2.2KW
dimension	700*480*630mm



Effective volume	50L
Grinding fineness	20-25um
Grinding time	10-16h
Main shaft rotation speed	48r/min
Power of main motor	2.2KW
Weight	320kg
Dimensions(mm)	1200*800*1100mm



Effective volume	110L
Grinding fineness	20-25um
Grinding time	10-16h
Main shaft rotation speed	48r/min
Power of main motor	3.2KW
Weight	520kg
Dimensions(mm)	2200*800*1100mm

                                                     MQM-1000 Chocolate Milling Machine     1.This chocolate milling machine is the basic equipment to mill chocolate material, it also can be used to melt oil-bearing material, fluidness and some chemical raw material.
2.Chocolate raw material is melted via steel ball, milling fineness can be 20-25um.   BASIC SPECIFICATION:

effective volume	1000L
milling time	10-16H
drive power	14.5kw
dimension	2800*1600*2500mm
weight	4500kg

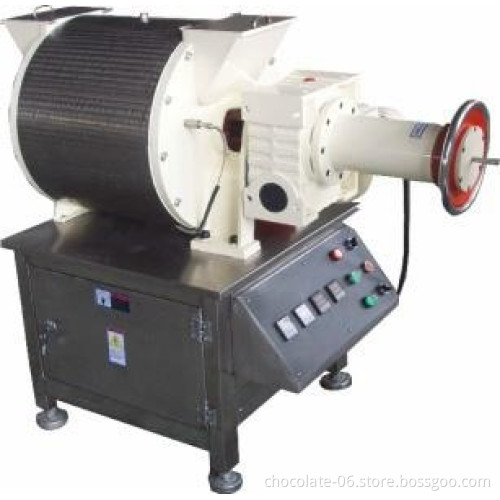

        machine pictures:               our workshop:
