MLD cooling tunnel machine

Specifications 1.cooling tunnel machine, chocolate refrigerator

2.water-cooled or air-cooled as buyer's choice

3.different sizes can be done

MLD Cooling Tunnel Machine   1.This cooling tunnel machine is mainly used for the cooling and molding about chocolate moulds in big pieces.   2.It is a new-design can continuous refrigerate chocolate piece in molds, different designs and specifications can be done according to buyer’s requirement.   3.MLD cooling tunnel adopts electromagnetic clutch driving and chain-type conveying structure, machine has stable quality, it saves electric power and is easy to operate, repairment and maintenance is easy.   BASIC SPECIFICATION:

Power of the whole machine	14.6KW/380V
Refrigeration & model of compressor	JZS-2F10 (water-cooled or air-cooled as buyer’s option)
Standard refrigerating output	14000 calorie/F22
Cooling method	Centrifugal-fan   closed circulating cooling
Time of chocolate staying in the tunnel	18-30min
Temperature at tunnel entrance	5°C -  14°C
Temperature at tunnel exit	0°C -  10°C
Power supply method	24V   380V   50Hz
Capacity	100 – 120 kg/h
Machine weight	4600kg
Dimensions	11000*1600*2000mm

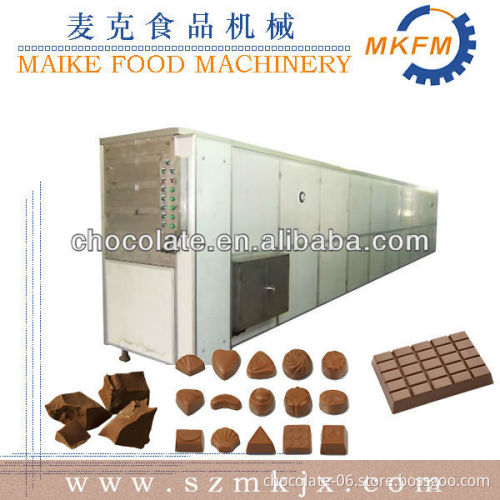

  machine pictures:     our workshop:
