MDSH chocolate equipment/single color pattern decorator

Specifications 1.chocolate equipment/pattern decorator

2.304 S.S material

3.volume of storage tank:30L*1

MDSH Chocolate Equipment/Single Color Pattern Decorator   1.MDSH chocolate equipment is used to make single-loop pattern on the surface of biscuit and chocolate, many kinds of pattern can be decorated.   2. Motor drives chocolate syrup hose longitudinal and transverse movement.   3.Chocolate in the moving syrup hose is squeezed by the pump, draw loops on the biscuit or chocolate which is passing from the belt, adjust the speed of belt and decorator frame slightly many kinds of loops can be made out.   BASIC SPECIFICATION:

Total power	4.52KW
Working pressure	0.2Mpa-0.8Mpa
Volume of holding tank	30L
Speed adjust range	0-140R/min
Heating temperature	30-50°C
Dimension	Decorator frame:1300*4200*400(mm)
	Chocolate material feeding part:960*770*700(mm)

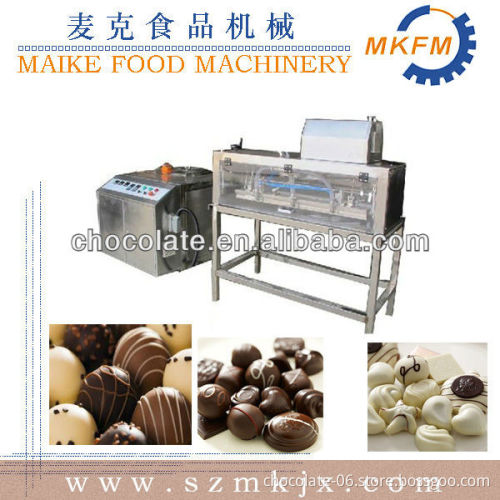

  machine pictures:     our workshop:
