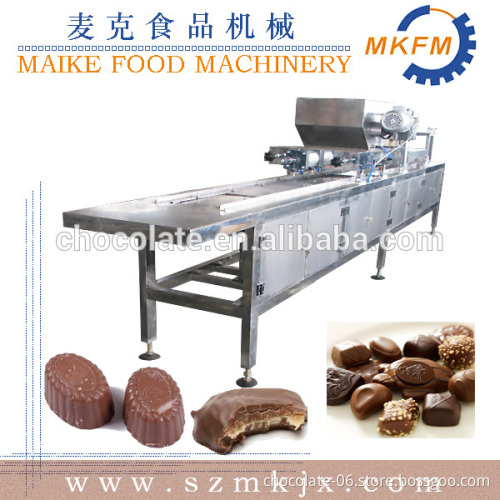

MSJZ-400 chocolate molding machine automatic chocolate bar depositing

  Youtube video line:   //youtu.be/EsUTylr3Zoc                   chocolate bar molding line

//youtu.be/SnlesIXzukY                   cereal bar molding line, depositor   Product Description     Applications: 1. automtic production line for chocolate depositing, forming,molding machine. 2.Including depositing, cooling tunnel, molding, vibrator, conveyor etc. 3.  this chocolate moulding machine can produce pure chocolate ,centre filling chocolate, two color chocolate, three color chocolate, cereal bar chocolate, nuts chocolate,bar chocolate.       MSJZ Chocolate Molding Machine      This chocolate molding machine can warm up deposit and vibrate chocolate bar shape molds automatically, it is suitable for depositing a lot of geometric chocolate products, two colors filling, center filling, chocolate with granular nuts filling can be done, it is adaptable and convenient.    BASIC SPECIFICATION:

PLC controlled stepper motor	125-5000r/min
Capacity	12-20 molds/min
Working pressure	0.6Mpa-0.8Mpa
Vibration frequency	2940R/MIN,  220V   0.30KW
Temperature for warm-up mould	35-45°C
Water tank heating-up temperature	55-60°C
Rotation driving cylinder of depositing	φ63*50    2pcs
Driving cylinder of depositing plunger	φ100*100  2pcs
Driving cylinder of stripping	φ50*50  total 1pc
Plastic mould dimension	275*175*25mm
Installed capacity	6KW
Main machine	0.75KW-110BYG350B
Mould warm-up power	0.4KW*4=1.6KW
Water tank heater	3KW -380V
Machine dimension	4200*520*1450MM
Machine weight	420kg

       chocolate bar molding machine            Cereal chocolate bar molding machine           Hollow chocolate moulding machine           Manual chooclate molding machine         Mold chocolate     Center filling chocolate               Chocolate Molding machine pictures:               our workshop:         Customer visit Maike chocolate machine factory:
          Maike chocolate machinery factory exhibition:     Packaging & Shipping The chocolate production equipments, aux. packed with PE/PP film in inner. outside by standard export woodcase. In shanghai port loading machine.
         Our Services All the above mentioned chocolate equipments are manufactured under the management of international quality criteria UKAS ISO-9001:2008. The main machines are with CE licenses and operation manual. Any quality problem, which belongs to the manufacture responsibility, will be offered free after-sales service for a year. All the products are standard pass quality.       Company Information Welcome to our official site: www.szmkjx.com

chocolate machine: conching,milling ball,tempering,melting,holding,filling,mixing,forming,depositor,enrobing,coating,cooling tunnel,packing machine.

Chocolate production line: moulding line,chocoalte paste line,chocolate bean line,chocolate egg line,stone chocolate line,truffle chocolate line, cereal chocolate line,mylike chocolate line,chocolate chips/drops line,chocolate bar line,chocolate nuts line.

      FAQ
The purchaser offers the flat drawing of the workroom. The supplier should provide the relative technology for the chocolate equipments; the power source arrangement, the technology and the layout designing service.
