Chocolate Moulding ( Maike factory offer)

Specifications 1.Chocolate Moulding

2.capacity:12-20 moulds/min

3.PLC touch screen operation

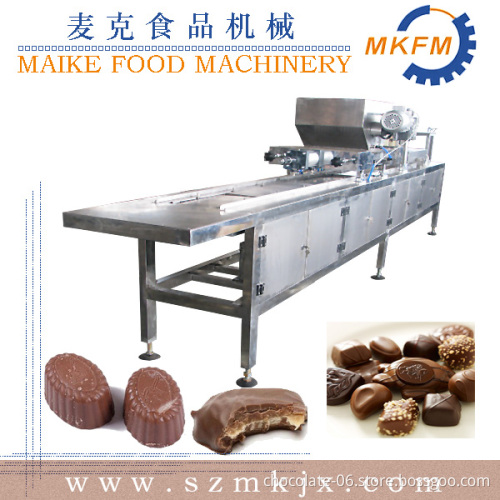

  Product Description        MSJZ Chocolate moulding Machine    This chocolate moulding machine can warm up deposit and vibrate chocolate moulds automatically, it is suitable for depositing a lot of geometric chocolate products, two colors filling, center filling, chocolate with granular nuts filling can be done, it is adaptable and convenient.    BASIC SPECIFICATION:

PLC controlled stepper motor	125-5000r/min
Capacity	12-20 moulds/min
Working pressure	0.6Mpa-0.8Mpa
Vibration frequency	2940R/MIN,  220V   0.30KW
Temperature for warm-up mould	35-45°C
Water tank heating-up temperature	55-60°C
Rotation driving cylinder of depositing	φ63*50    2pcs
Driving cylinder of depositing plunger	φ100*100  2pcs
Driving cylinder of stripping	φ50*50  total 1pc
Plastic mould dimension	275*175*25mm
Installed capacity	6KW
Main machine	0.75KW-110BYG350B
Mould warm-up power	0.4KW*4=1.6KW
Water tank heater	3KW -380V
Machine dimension	4200*520*1450MM
Machine weight	420kg

      machine pictures:       our workshop:         Feel free to contact us
