Chocolate Conche For Ukraine (maike factory offer)

Specifications 1.Chocolate Conche For Ukraine

2.Chocolat Conche time:16-22h

3.Hand wheel or electric operation choice for conching machine

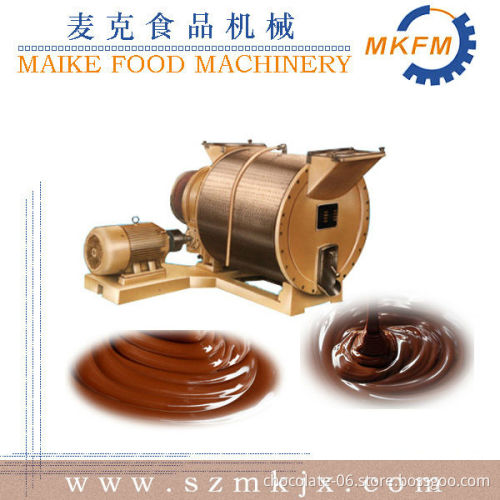

    Product Description      Chocolate Conching Machine manufacturer     It is the basic chocolate conching machine to grind chocolate material, as well as oil-bearing material, fluidness and some chemical raw material.

This chocolate conching machine adopts the worm wheel and worm screw driving system, the places contacting with food and the conche machine outer case are made of excellent alloy steel and stainless steel material. This machine is hand wheel operation with multi functions of grinding, dehydration, deodorization, dilution and emulsification. It is ideal equipment for chocolate production.

BASIC SPECIFICATION:

Model	MQM-5	MJM-50	MJM-500	MQM-1000
Effective volume	5L	50L	500L	1000L
Grinding fineness	20-25um	20-25um	20-25um	20-25um
Grinding time	8-12H	10-16H	14-18H	14-20H
Main motor	2.2Kw	1.5Kw	15Kw	22Kw
Electric heating	500W-220V	500W-220V	3000W-380V	6000W-380V
Scrawl motor			1.5Kw
Weight(kg)	80	320	2990	4500
Dimensions (mm)	0.7*0.48*0.63	1.2*0.8*1.1	2.15*1.86*1.25	2.8*1.6*2.5

        MQM-1000 Chocolate balls Milling Machine     1.This chocolate milling machine is the basic equipment to mill chocolate material, it also can be used to melt oil-bearing material, fluidness and some chemical raw material.
2.Chocolate raw material is melted via steel ball, milling fineness can be 20-25um.
BASIC SPECIFICATION:

effective volume	1000L
milling time	10-16H
drive power	14.5kw
dimension	2800*1600*2500mm
weight	4500kg

        50L chocolate conching machine           1000L chocolate conching machine         50L milling ball machine       Conching machine inner picture:         1000L milling ball machine         Conching machine pictures:             our workshop:                 Customer visit Maike chocolate machine factory:       Maike chocolate machinery factory exhibition:         Export container             Packaging & Shipping The chocolate production equipments, aux. packed with PE/PP film in inner. outside by standard export woodcase. In shanghai port loading machine.
    Our Services All the above mentioned chocolate equipments are manufactured under the management of international quality criteria UKAS ISO-9001:2008. The main machines are with CE licenses and operation manual. Any quality problem, which belongs to the manufacture responsibility, will be offered free after-sales service for a year. All the products are standard pass quality.             Company Information   Welcome to our official site: www.szmkjx.com

chocolate machine: conching,milling ball,tempering,melting,holding,filling,mixing,forming,depositor,enrobing,coating,cooling tunnel,packing machine.

Chocolate production line: moulding line,chocoalte paste line,chocolate bean line,chocolate egg line,stone chocolate line,truffle chocolate line, cereal chocolate line,mylike chocolate line,chocolate chips/drops line,chocolate bar line,chocolate nuts line.         FAQ
The purchaser offers the flat drawing of the workroom. The supplier should provide the relative technology for the chocolate equipments; the power source arrangement, the technology and the layout designing service.
