Chocolate making machine

    Chocolate bar
                Product Description    This Chocolate making machine is a most advanced chocolate making machine in China .It is special for chocolate filling and depositing with forming, It is controlled by mechanize ,the production unit includes temper refining drum, and temperature regulating drum,  mold heating, filling, pouring, vibrating, cooling, discharging and conveying,cooling with automatic operation, It suits for producing pure chocolate, central filling chocolate or compound,double colors chocolate, and granule mixed chocolate etc. They are with smooth and beautiful surface, accurate weight. It is an ideal machine for producing high quality chocolate.



Add packing machine, its become one compete line of the chocolate machine. Its offer coin wrapping and flow packing chocolate machine.

  PARAMETERS

Project / Model		MK-I	MK-II	MK-III	MK-IV
Capacity (kg/8hours)		800-2500	800-2500	800-2000	800-2500
Speed(n/min)		10-18storke
Chocolate shape		More than 100 kinds selected by customer
Power	Voltage(v)	380V
	Power(kw)	21	30	8.15	30
Compressed Air	Dosage 0.67m3/min	0.22	0.412	0.2512	0.1925
	Pressure(mpa)	0.7
Working condition	Temp(c)	20-25
Cooling capacity	Kcal/h	21800	21800		21800
Cooling tunnel	Temp(c)	5-10	5-10		5-1O
Chocolate weight	Pure chocolate	2.5-512
	Center filled chocolate(g)	15-40
Machine weight		5250	6950	800	7450
Machine size L×W×H(m)		16.7×1121×2.5	19.85×1.21×2.5	5.13×0.8×1.6	19.85×1.21×2.5
Mold size L×W×H(mm)		280×200×30	280×200×30	275×175×30	385×225×30

      MJM-1000 CHOCOLATE CONCHE MACHINE
  It is the chocolate machine to grind chocolate material, as well as oil-bearing material, fluidness and some chemical raw material.

This chocolate machine adopts the worm wheel and worm screw driving system, the places contacting with food and the machine outer case are made of excellent alloy steel and stainless steel material. This machine is hand wheel operation with multi functions of grinding, dehydration, deodorization, dilution and emulsification. It is ideal equipment for chocolate production.     MQZ AUTOMATIC CHOCOLATE DEPOSITOR/FILLING FORMING MACHINE
  This machine is advanced equipment with multi-functions such as pouring, molding.
It integrates the mechanism and electrical control.
Whole production flow includes mold roasting, molding, vibrating, scratching, mold-turning, cooling, striping and conveying.
PLC automatic control is adopted in this device, it can make compound chocolate, pure fat chocolate and sandwich chocolate etc., and pouring methods have single and double actions.       MZF-60 Automatic Tempering Chocolate Machine   1.This chocolate machine is tempered via cooling water. It’s the key equipment in tempering process for high quality chocolate.   2.Differ from electric heating tempering machine, this machine has a cooling system attachment, tempering can be continuous.   3.Voltage is not a problem, we can make it as buyer's requirement, different capacities also can be done according to customers.   CHOCOLATE MACHINE BASIC SPECIFICATION:

Effective volume	60L
Main motor power	1.1KW
Vibrating motor	25W
Electric heating	2KW for chocolate tank 24v-40w*4 for vibrating screen
Chocolate transfer pump	1.1KW
Capacity	180-200KG/H
Dimension	950*650*1700MM
Weight	250KG

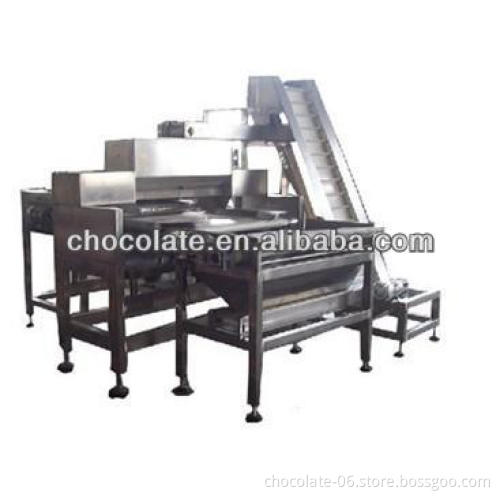

                    machine pictures:                   our workshop:             Customer visit Maike chocolate machine factory:       Maike chocolate machinery factory exhibition:
