Aluminium Honeycomb Office Partition Insulated Roof Panels
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China (Mainland) |
|---|

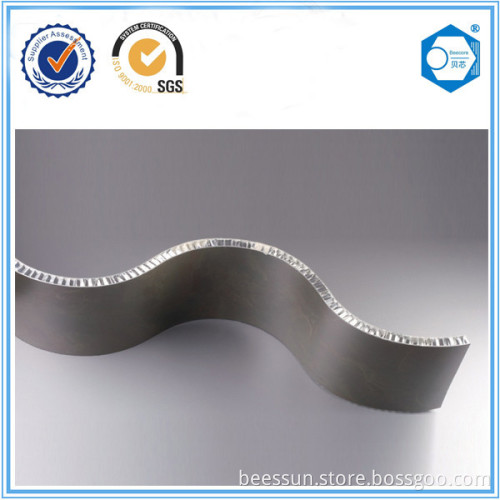

Aluminum Honeycomb Panel is a kind of breakthrough from aerospace application to commercial application, and it is one of best environmental composite materials with perfect strength to weight ratio. It is widely used in different filed for its unparalleled merits. In building materials filed, it is known as the best option for curtain wall cladding products. Aluminum Honeycomb Panel adopts roller-coated aluminum coil as the surface skins, and aluminum honeycomb as the core. HONGZAN brings in proprietary cold lamination and hot melt lamination technology of sandwich composite panel from Europe. Our product are available in any customized thickness, but typically in 10mm,12mm,15mm,20mm and 25mm.
Thickness of aluminum skin | 0.8-3.0mm |
Max dimension(Long*Width) | 6000*1200mm |
Color | Customized by Customers |
Luminosity(original Data) | 30-40% |
Hardness of pencil | HB-F |
Changeable measurement(N/mm²) | 70000 |
Pull prafecting strength of surface planking(N/mm²) | Rm≥220 |
Power of Bending(N/mm²) | Rp0.2≥130 |
Extanding rate(EN485-2:1194) | A50≥8 |
Hot expanding of aluminum materials | When the lemperature discrepancy is 100degree centigrade |
Sound Insulating, Heat Insulation, Heat Preservation: The air between the two skins are divided into many closed and independent cells, which to a great extent limit the transmission of sound wave and heat. Fireproofing Properties: Tested by National Research Center of Testing Techniques For Building Materials, the properties of Aluminum Honeycomb Composite Panel meet the requirement of non-flammable materials. According to GB-8624-1997 standard, the aluminum honeycomb panels fireproofing grade is BG-8624-B1 Grade. Super Flatness and Rigidity: The special hexagonal structure of aluminum honeycomb panel is composed of many dense hexagonal cells are similar to many I shapes, which averagely take the pressure from the panel surface. This property assures the high compression strength and supper flatness over a large area. Moisture Resistance: The Aluminum Honeycomb Panel surface skins are manufactured through roller-coating techniques, thus anti-anodizing, color-stable and no going moldy and deforming. Light weight and energy saving: The Aluminum honeycomb panel weight is only 1/70 of that for bricks and 1/3 of that for stainless steel. Environment: Aluminum Honeycomb Panel does not emit any hazardous gas and easy to be cleaned and also easily recyclable. Corrosion Resistant: According to testing, the Aluminum honeycomb panel remains intact after immersed in 2% HCL solution or in saturated Ca(OH)2 solution for 24 hours. Easy installation: We could supply the panels with installation purpose aluminum alloy brackets. They are easily installed, thus saving time and labour. Furthermore, they can be dismantled for installation in other places.
1 | Gas piping, cables, building materials, etc (this product fills a gap in the domestic construction materials field, with performance indexes superior to panels manufactured overseas) |
2 | Curtain wall decoration for buildings where security is important,as airports, hospitals and research centers |
3 | Curtain wallboards for outside walls of normal buildings |
4 | Renovations for old buildings and movable houses |
5 | Reformation and decoration for indoor walls, ceilings, bathrooms, kitchens and balconies |
6 | Facades |
7 | Billboards, exhibition desks and notice boards |
8 | Wallboards and ceilings for tunnels |
9 | Materials for industrial application, car and ship bodies |
