aluminum honeycomb panel used for curtain wall and subway

aluminum honeycomb core sandwich panel used for curtain wall and subway

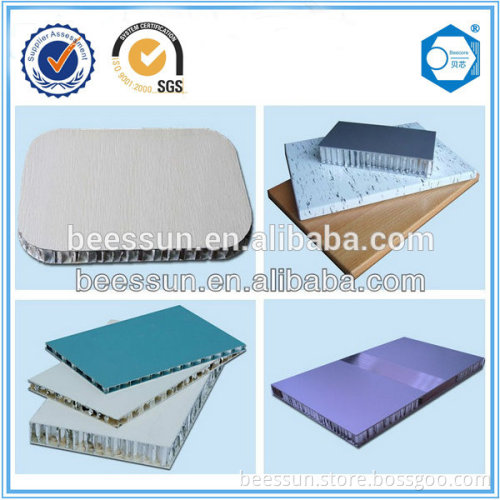

Aluminum honeycomb panel is composited by aluminum panel and aluminum honeycomb core. And it was mostly used in astronautics, astrology and other military field Because of its good performance in high wind pressure resistance, impact adsorption, sound proof, heat preservation, fire resistance, specific strength etc,     1. Sound Insulating, heat insulation, heat preservation:   The air between the two skins are divided into many closed and independent cells, which to a great extent limit the transmission of sound wave and heat.   2. Fireproofing Properties:   Test by national research center of testing techniques for building materials, the properties of aluminum honeycomb composite panels meet the requirement of non-flammable materials. According to GB-8624-1997 standard, the aluminum honeycomb panels fireproofing grade is GB-8624-B1 Grade.   3. Super flatness and rigidity:   The special hexagonal structure of aluminum honeycomb panel is composed of many dense hexagonal cells and these cells are similar to many I shape, which averagely take the pressure from the panel surface. This property assures the high compression strength and super flatness over a large area.   4. Moisture resistance:   The aluminum honeycomb panel surface skins are manufactured through roller-coating techniques, thus anti-anodizing, color-stable and no going moldy and deforming.   5. Light weight and energy saving:   The aluminum honeycomb panel weight is only 1/70 of that for bricks and 1/3 of that for stainless steel.   6. Environmental:   Aluminum honeycomb panels does not emit any hazardous gas and easy to be cleaned and also easily recyclable.   7. Corrosion Resistant:   Accordingly to testing, the aluminum honeycomb panel remains intact after immersed in 2% HCL solution or in saturated Ca(OH)2 solution for 24 hours.   8. Easy installation: We could supply the panels with installation purpose aluminum alloy brackets. They are easily installed, thus saving time and labour. Furthermore, they can be dismantled for installation in other places.

Aluminum alloy	A1101,A3003,A5052
Foil thickness	0.04,0.05,0.06,0.07,0.08
Core's cell size	1-30mmm
Max width of aluminum foil	1600mm



Specification of Normal Aluminum Honeycomb Core
Side length (mm)	a=4	a=5	a=6	a=7.5	a=10	a=12	a=15	a=20	a=30
Cell size (inch)	1/4	1/3	3/8	1/2	3/4	4/5	1	1	2
Expand maxi dimension  (long x width) (mm)	1800 x  3100	1800 x  4000	1800 x  4600	1800 x  6000	1800 x  7500	1800 x  9000	1800 x  12000	1800 x  15000	1800 x  20000
Thickness of aluminum  coil (mm)	0.04 – 0.07	0.04 – 0.07	0.04 – 0.07	0.04 – 0.07	0.04 – 0.07	0.04 – 0.07	0.04 – 0.07	0.04 – 0.07	0.04 – 0.08

   To send you the workable price, we need to check the following information: 1. the thickness of aluminum honeycomb panel  2. the dimension of the panel 3. the application of the panel 4. the coating  If you have any question, pls feel free to contact us.     1. Gas piping, cables, building materials, etc (this product fills a gap in the domestic construction materials field, with performance indexes superior to panels manufactured overseas) 2. Curtain wall decoration for buildings where security is important, as airports, hospitals and research centers
3. Curtain wallboards for outside walls of normal buildings
4. Renovations for old buildings and movable houses
5. Reformation and decoration for indoor walls, ceilings, bathrooms, kitchens and balconies
6. Facades
7. Billboards, exhibition desks and notice boards
8. Wallboards and ceilings for tunnels
9. Materials for industrial application, car and ship bodies             aluminum honeycomb core sandwich panel used for curtain wall and subway
