Aluminum honeycomb core building and construction materials

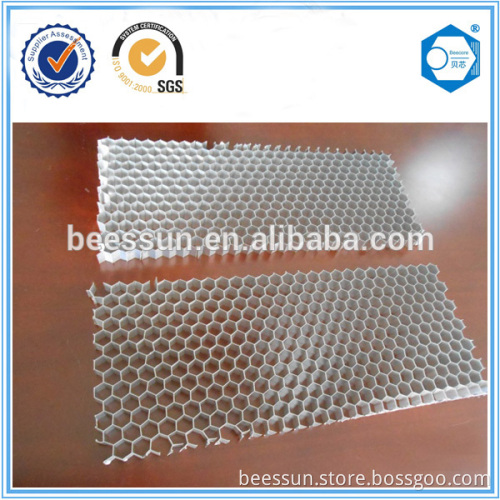

Aluminum Honeycomb Core Building and Construction Materials     BEECORE and HONGZAN aluminum honeycomb core is made of multi layer foils which adhered together, then stretched to standard honeycomb format. Our aluminum honeycomb core has sharpand clear hole wall, and it is suitable for ashering to different kinds of plate and other purposes. Main products: mico-aperture and normal honeycomb core.

1	Material type	A1100, A3003, A5052
2	Foil thickness(mm)	0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.2
3	Max width	1600 mm
4	Density	27 kg/m³



Size length of grille(mm)	a=4	a=5	a=6	a=7.5	a=10	a=12	a=12	a=20
Cell size(inch)	1/4	1/3	3/8	1/2	3/4	4/5	1	1
Max expanded dimension : Long*Width(mm)	1800* 3100	1800* 4000	1800* 4600	1800* 6000	1800* 7500	1800* 9000	1800* 12000	1800*  15000
Foil thickness (mm)	0.04-  0.06	0.04-  0.06	0.04-  0 .06	0.04-  0.06	0.04-  0.06	0.04-  0.06	0.04-  0.06	0.04-  0.06

  Exact FOB&CIF quotation The aluminum honeycomb core size is customized by customers, and different application  has different size. So before I send the exact FOB&CIF quotation to you, please tell us the  cell size, core thickness, expanding size(Length*Width), aluminum foil thickness, quantity,  application and destination port. If you firstly use our aluminum honeycomb core materials, please tell us the application and  size, we will give you some free advice about cell size, core thickness

1	Use temperatures up to 350°
2	High thermal conductivity
3	Flame resistant
4	Excellent moisture and corrosion resistance
5	Fungi resistant
6	High strength-to-weight ratio
7	Good Flatness
8	Excellent bonding strength
9	Corrosion resistan


        We supply our Aluminium Honeycomb in unexpanded (block) form. This makes them much  smaller (and more cost effective) to ship but most importantly ensures that they are delivered  undamaged, ready to be easily expanded into a faultless sheet of honeycomb.     A3003 aluminum honeycomb uses include air/light directionalization, energy absorption,  tooling, ceiling and floor panels, counter tops and other applications for which elevated  physical and mechanical properties are not required. In railway industry: -Doors -Floors -Energy absorbers/bumpers -Ceilings -Partitions In maritime industry: -Commercial vessels and naval vessel bulkheads -Wall ceiling and partition panels Other applications that are not transportation related: -Clean room panels -Exterior architectural curtain wall panels -Air, water, fluid, and light directionalisation -Heating, ventilation, air conditioning equipment and devices -Skis and snowboards -Energy absorption protective structures -Electric shielding enclosures -Acoustic attenuation materials NOTE: Special dimensions, sizes, tolerances, CNC machining and die cut to size can be              provided upon request.
