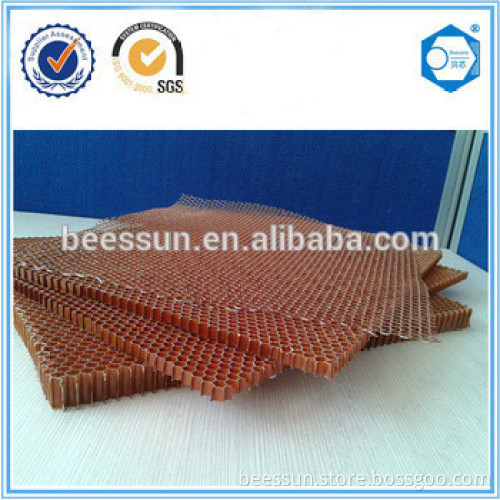

Aramid Fiber Honeycomb Core

Aramid Fiber Honeycomb Core
        Aramid Fiber Honeycomb Core is made of nomex  paper which owns excellent physical, flame retardant phenolic resin, It has high fatigue resistance and anti chemical corrosion ability ,the excellent dielectric and rader conductive property as well. Nomex honeycomb laminated structure is broadly applied to aircraft , high vessel and train, radar etc.     1. Light Weight 2. High load bearing capacity 3. Material reduction approx. 60% 4. Environment friendly 5. Wide spans of panels with no sagging 6. Simple handling and transport 7. Long life of product due to light weight resulting in limited stress on hardware

Designation		Density (kg/m3)	Compression strength  N/m	L-Shear  N/mm2	W-Shear N/mm2
Cell size(mm)
3.2	1/8 Inch	48	1.90	1.16	0.62
3.2	1/8 Inch	64	3.10	1.48	0.82
3.2	1/8 Inch	80	4.70	1.95	1.05
3.2	1/8 Inch	96	6.60	2.45	1.42
3.2	1/8 Inch	128	11.30	2.95	1.78
3.2	1/8 Inch	144	13.20	2.95	1.78
4.0	5/23 Inch	29	0.60	0.45	0.26
4.0	5/23 Inch	80	5.10	1.90	0.98
4.0	5/23 Inch	144	13.00	3.60	2.00
4.8	3/16 Inch	32	0.90	0.58	0.36
4.8	3/16 Inch	48	2.60	0.98	0.56
4.8	3/16 Inch	64	3.40	1.70	0.92
4.8	3/16 Inch	80	6.00	1.95	1.10
4.8	3/16 Inch	96	7.30	2.26	1.32
4.8	3/16 Inch	123	9.30	3.40	1.86
6.4	1/41 Inch	24	0.54	0.34	0.18
6.4	1/41 Inch	32	0.80	0.54	0.30
6.4	1/41 Inch	48	2.05	1.00	0.56
6.4	1/41 Inch	64	3.40	1.54	0.79
9.6	3/8 Inch	24	0.52	0.32	0.16
9.6	3/8 Inch	32	0.68	0.56	0.29
9.6	3/8 Inch	48	9.6	1.15	0.66
12.8	1/2 Inch	32	12.8	0.46	0.26
12.8	1/2 Inch	64	12.8	1.60	0.88
19.2	3/4 Inch	24	19.2	0.50	0.22
19.2	3/4 Inch	32	19.2	0.50	0.32

                FAQ Q1: How can I get your price list? A1: Please send your inquiry along with cell size, density or height.   Q2:Do you offer sample? A2:Yes, sample is offered and sent within 3 days after specification confirmed.   Q3: What's the order minimum quantity (MOQ)? A3: 1000 square meters/day.   Q4:How long is the delivery time? A4: About 10 workdays, which depends on your order quantity and product item.   Q5: What's your packing when shipping? A5:Plywood box.    A6:Which countries have we exported before?  A6:We exported to Europe(Italy, France), Asia(Japan, Korea), East South Asia (Malaysia,  Singapore Indonesia, India, Pakistan,Turkey, Sri Lanka,etc),Oceania (Australia, New Zealand),  also Middle America and South America countries.
