Aramid Paper Nomex Honeycomb Core ISO certification

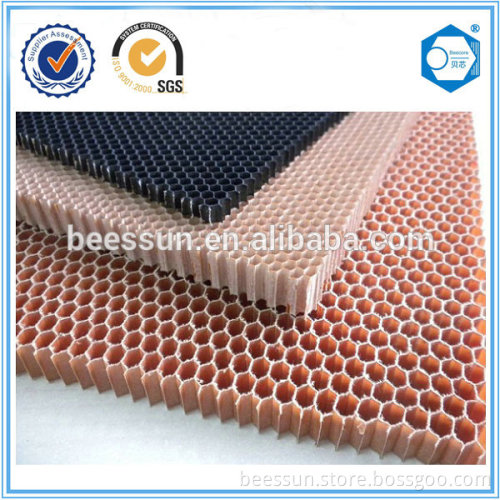

Aramid Paper Nomex Honeycomb Core ISO certification:     The nomex honeycomb core is made of nomex paper which owns excellent physical, flame retardant phenolic resin, It has high fatigue resistance and anti chemical corrosion ability ,the excellent dielectric and rader conductive property as well. Nomex honeycomb laminated structure is broadly applied to aircraft , high vessel and train, radar etc.   We manufacture and market equivalents of Nomex/Kevlar honeycombs in China. We have also been epxorting these products to countries like UK, UAE, US, Australia, HK etc.

Designation Cell size mm		DensityKg/ m3	Compression strengthN/m	L-ShearN/m m2	W-Shear N/m m2
3.2	1/8 lnch	48	1.9	1.16	0.62
3.2		64	3.1	1.48	0.82
3.2		80	4.7	1.95	1.05
3.2		96	6.6	2.45	1.42
3.2		128	11.3	2.95	1.78
3.2		144	13.2	3.05	1.9
4	5/23 lnch	29	0.6	0.45	0.26
4		80	5.1	1.9	0.98
4		144	13	3.6	2
4.8	3/16 lnch	32	0.9	0.58	0.36
4.8		48	2.6	0.98	0.56
4.8		64	3.4	1.7	0.92
4.8		80	6	1.95	1.1
4.8		96	7.3	2.26	1.32
4.8		123	9.3	3.4	1.86
6.4	1/4 lnch	24	0.54	0.34	0.18
6.4		32	0.8	0.54	0.3
6.4		48	2.05	1	0.56
6.4		64	3.4	1.54	0.79
9.6	3/8 Inch	24	0.52	0.32	0.16
9.6		32	0.68	0.56	0.29
9.6		48	9.6	1.15	0.66
12.8	1/2 lnch	32	12.8	0.46	0.26
12.8		64	12.8	1.6	0.88
19.2	3/4 lnch	24	19.2	0.5	0.22
19.2		32	19.2	0.6	0.32

  Difference between Nomex and Kevlar honeycomb:

NOMEX HONEYCOMB	KEVLAR HONEYCOMB
Made from Meta-Aramid fiber	Made from Para-Aramid fibers
Weaker than Kevlar	Better mechanical strength in comparison to nomex
