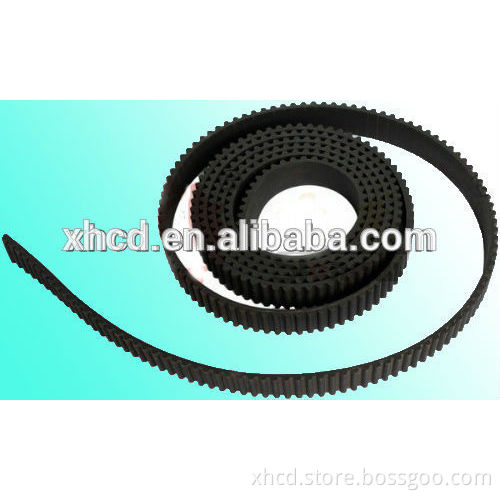

Extra long endless htd 3m timing belt

You can contact our skype ID:suzhouxh02 Phone :+86 15862522825        Industrial Timing belt has the traits of movable flexibility, antic racks, perfect property, excellent ozone property, ant ageing, thermal resistance, oil resistance and durability. This product is suitable in the machineries for spinning, vehicle, chemical fiber, tobacco, paper making, printing and chemicals, in recent years, the demands form mining, metallurgy, iron machinery and hospital equipment are increasing day by day.
Our Company offers a wide range of industry-used timing belts. These include tooth shapes such as XL, L, H, T5, T10, HTD-3M, HTD-5M, HTD-8M, HTD-14M, 3M4M and MXL, and are mostly used in diesel engines, spinning and weaving, all classes of instruments and meters, tobacco machinery, etc.

T type industrial rubber timing belt:
Type	Pitch	Tooth height	Belt thickness	Angle β °
	Pb(mm)	ht(mm)	hs(mm)
MXL	2.032	0.51	1.14	40
XL	5.08	1.27	2.30	50
L	9.525	1.91	3.60	40
H	12.7	2.29	4.30	40
XH	22.225	6.35	11.20	40
XXH	31.75	9.53	15.70	40
T2.5	2.5	0.70	1.30	40
T5	5	1.20	2.20	40
T10	10	2.50	4.50	40
T20	20	5.00	8.00	40
AT5	5	1.20	2.70	50
AT10	10	2.50	5.00	50
AT20	20	5.00	8.00	50
ABC tooth industrial rubber timing belt:
Type	Pitch	Tooth height	Belt thickness	Belt thickness
	Pb(mm)	ht(mm)	hs(mm)
HTD	2M	2	0.75	1.36
	3M	3	1.17	2.40
	5M	5	2.06	3.80
	8M	8	3.36	6.00
	14M	14	6.02	10.00
	20M	20	8.40	13.20
STPD/STS	S2M	2	0.76	1.36
	S3M	3	1.14	1.90
	S4.5M	4.5	1.71	2.81
	S5M	5	1.91	3.40
	S8M	8	3.05	5.30
	S14M	14	5.30	10.20
RPP/HTTD	RPP2M	2	0.76	1.36
	RPP3M	3	1.15	1.90
	RPP5M	5	1.95	3.50
	RPP8M	8	3.20	5.50
	RPP14M	14	6.00	10.00
