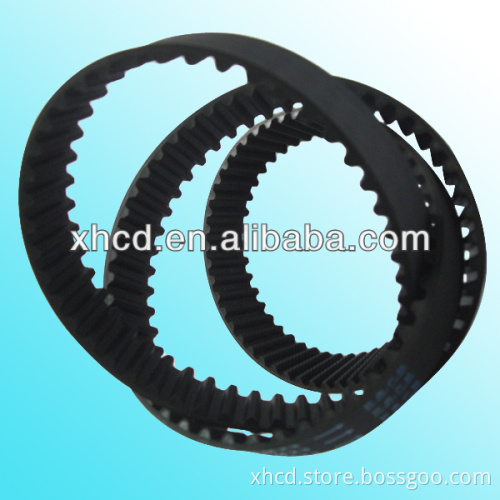

Industrial timing belt/transmission belt(XL L H 3M 5M 8M 14M)

High quality rubber timing belt:

Type

Pitch

Tooth height

Belt thickness

Angle β °

Pb(mm)

ht(mm)

hs(mm)

MXL

2.032

0.51

1.14

40

XL

5.08

1.27

2.30

50

L

9.525

1.91

3.60

40

H

12.7

2.29

4.30

40

XH

22.225

6.35

11.20

40

XXH

31.75

9.53

15.70

40

T2.5

2.5

0.70

1.30

40

T5

5

1.20

2.20

40

T10

10

2.50

4.50

40

T20

20

5.00

8.00

40

AT5

5

1.20

2.70

50

AT10

10

2.50

5.00

50

AT20

20

5.00

8.00

50

ARC tooth industrial rubber timing belt:

Type

Pitch

Tooth height

Belt thickness

Belt thickness

Pb(mm)

ht(mm)

hs(mm)

HTD

2M

2

0.75

1.36

3M

3

1.17

2.40

5M

5

2.06

3.80

8M

8

3.36

6.00

14M

14

6.02

10.00

20M

20

8.40

13.20

STPD/STS

S2M

2

0.76

1.36

S3M

3

1.14

1.90

S4.5M

4.5

1.71

2.81

S5M

5

1.91

3.40

S8M

8

3.05

5.30

S14M

14

5.30

10.20

RPP/HTTD

RPP2M

2

0.76

1.36

RPP3M

3

1.15

1.90

RPP5M

5

1.95

3.50

RPP8M

8

3.20

5.50

RPP14M

14

6.00

10.00
