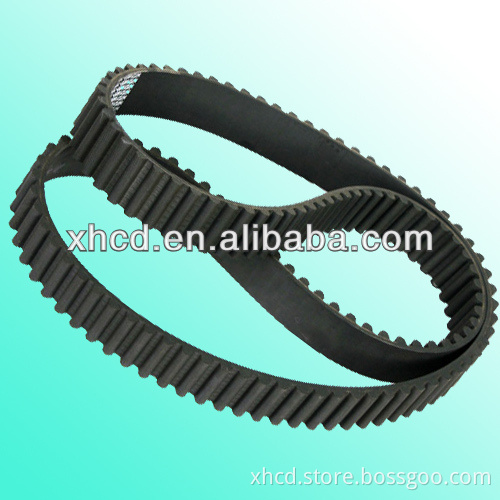

High power transmission industrial timing belt

High power transmission rubber timing belt:
Type	Pitch	Tooth height	Belt thickness	Angle β °
	Pb(mm)	ht(mm)	hs(mm)
MXL	2.032	0.51	1.14	40
XL	5.08	1.27	2.30	50
L	9.525	1.91	3.60	40
H	12.7	2.29	4.30	40
XH	22.225	6.35	11.20	40
XXH	31.75	9.53	15.70	40
T2.5	2.5	0.70	1.30	40
T5	5	1.20	2.20	40
T10	10	2.50	4.50	40
T20	20	5.00	8.00	40
AT5	5	1.20	2.70	50
AT10	10	2.50	5.00	50
AT20	20	5.00	8.00	50
ARC tooth industrial rubber timing belt:
Type	Pitch	Tooth height	Belt thickness	Belt thickness
	Pb(mm)	ht(mm)	hs(mm)
HTD	2M	2	0.75	1.36
	3M	3	1.17	2.40
	5M	5	2.06	3.80
	8M	8	3.36	6.00
	14M	14	6.02	10.00
	20M	20	8.40	13.20
STPD/STS	S2M	2	0.76	1.36
	S3M	3	1.14	1.90
	S4.5M	4.5	1.71	2.81
	S5M	5	1.91	3.40
	S8M	8	3.05	5.30
	S14M	14	5.30	10.20
RPP/HTTD	RPP2M	2	0.76	1.36
	RPP3M	3	1.15	1.90
	RPP5M	5	1.95	3.50
	RPP8M	8	3.20	5.50
	RPP14M	14	6.00	10.00

    suzhou Xianghong Transmission Co.,Ltd established in 1995, after nearly 20 years development, our factory have to be a professional timing belt manufacturer, mainly manufacturing rubber timing belt, PU open-end belt, Coated timing belt and ribbed belts. XIANGHONG Rubber Timing belt:   "XIANGHONG" brand timing belt has superior anti-bent, anti-wearing out, small elongation rate and strong, also, it is anti-oil, anti-heat, anti-ageing, anti-ozone etc. To ensure good quality of Timing belt, the main raw materials are all imported from advanced countries.   Any questions please contact me freely. Skype:suzhouxh02 Cell:+86 15862522825   Function: This product is suitable in the machineries for spinning, vehicle, chemical fiber, tobacco, paper making, printing and chemicals. In recent years, the demands form mining, metallurgy, iron machinery and hospital equipment are increasing day by day.
