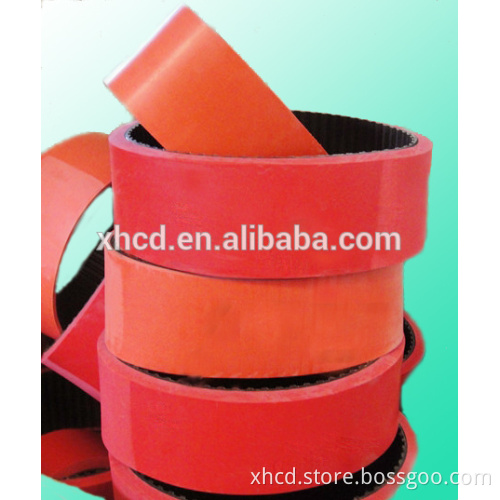

Red rubber coating timing belt

 Red rubber coating timing belt: Employing reinforcement with high intensity, slight elongation and anti-wearing out as strong base, high-speed rubber flat belt is characteristic as strong transmission power and anti-wearing out. Employing imported neoprene rubber, with anti-heat, anti-oil, anti-wearing out and long life. Thus it becomes most satisfactory high-speed transmission fIat belt.   the types can be divide into ( depend on thickness )  :
1.5mm;2mm;2.5mm;3mm;3.5mm;4mm.

T type industrial rubber timing belt:
Type	Pitch	Tooth height	Belt thickness	Angle β °
	Pb(mm)	ht(mm)	hs(mm)
MXL	2.032	0.51	1.14	40
XL	5.08	1.27	2.30	50
L	9.525	1.91	3.60	40
H	12.7	2.29	4.30	40
XH	22.225	6.35	11.20	40
XXH	31.75	9.53	15.70	40
T2.5	2.5	0.70	1.30	40
T5	5	1.20	2.20	40
T10	10	2.50	4.50	40
T20	20	5.00	8.00	40
AT5	5	1.20	2.70	50
AT10	10	2.50	5.00	50
AT20	20	5.00	8.00	50
ABC tooth industrial rubber timing belt:
Type	Pitch	Tooth height	Belt thickness	Belt thickness
	Pb(mm)	ht(mm)	hs(mm)
HTD	2M	2	0.75	1.36
	3M	3	1.17	2.40
	5M	5	2.06	3.80
	8M	8	3.36	6.00
	14M	14	6.02	10.00
	20M	20	8.40	13.20
STPD/STS	S2M	2	0.76	1.36
	S3M	3	1.14	1.90
	S4.5M	4.5	1.71	2.81
	S5M	5	1.91	3.40
	S8M	8	3.05	5.30
	S14M	14	5.30	10.20
RPP/HTTD	RPP2M	2	0.76	1.36
	RPP3M	3	1.15	1.90
	RPP5M	5	1.95	3.50
	RPP8M	8	3.20	5.50
	RPP14M	14	6.00	10.00

    Suzhou Xianghong Transmission Co.,Ltd established in 1995, after nearly 20 years development, our factory have to be a professional timing belt manufacturer, mainly manufacturing rubber timing belt, PU open-end belt, Coated timing belt and ribbed belts.   "XIANGHONG" brand timing belt has superior anti-bent, anti-wearing out, small elongation rate and strong, also, it is anti-oil, anti-heat, anti-ageing, anti-ozone etc. To ensure good quality of Timing belt, the main raw materials are all imported from advanced countries. Any further information please contact me freely: Skype:suzhouxh02 Phone:+86 15862522825
