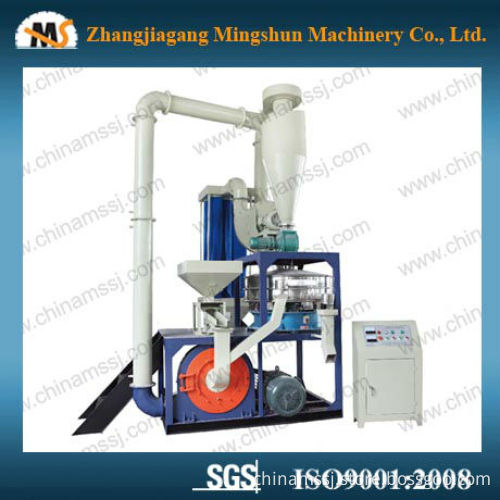

MF500 PVC grinder / PVC grinding machine / PVC plastic grinder

MF500 PVC grinder / PVC grinding machine / PVC plastic grinder   MF series plastic pulverizer is suitable for processing and grinding thermoplastics material. Such as PVC, PE, PP, EVA, PLA, ABS etc, with high output and thin powder.     Characteristics of PVC grinder:   1)The new disc design is used, high-yield, strong resistance and the life of this grinding disc is double the ordinary.     2)The use of newly designed professional bearings, and reached a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.     3) Installation and maintenance easily, open the door to cover clean-up.   4)Milling process of the whole seal, without dust leakage.   5) Full automated, automatic feeding, the materials and sorting.   6) Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning (10-80 mesh).   7) The host used the water and wind double cooling system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, ground, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production       Some main parameter:

Modell	MF-500
Main Motor Power	37 kw
Draft Fan Power	5.5 kw
Vibration Sieve Power	0.75 kw
Air Shutter Power	0.75 kw
Output	100-280kg/h
Dimensions	3000*2800*3900  mm
Weight	2200 kg
