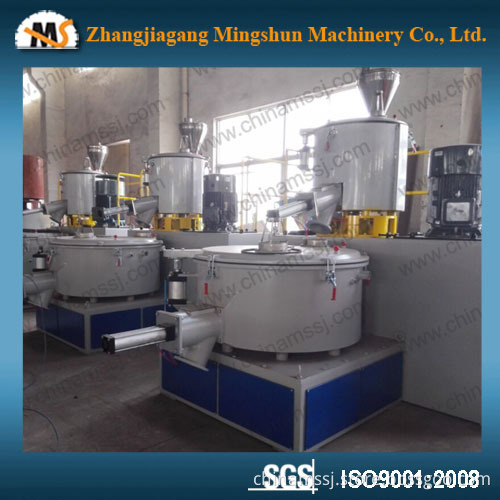

PVC plastic raw material mixer machine / PVC plastic mixer / Plastic mixer machine

Product Description 1. It is used for the process of mixing, drying in the industries of plastic, rubber, chemical and the place of lab as well. 2. The upper set is for hotting, and the lower one is for cooling 3. Five parts: two containers, transmission agent, pneumatic components, cooling system and base structure 4. Its lid adopt double sealed. 5. Hot mixer is with the heating ways of self-friction. 6. Using heat conduction oil and insulation cotton to keep temperature in hot mixer. 7. With discharging ways of temperature automatic control and manual control. 8. The container: A. The interior is made of stainless steel with polished finish; B. The cover adopts aluminium alloy castings with inlet orifice and air exit hole, we also can produce it as your requirements; C. The discharge hole is made of aluminium alloy; the valve is controlled in the force of pneumatic; D. Paddles are entirely made of stainless steel and through dynamic and static balance test. E. Temperature measuring equipment (TME) in the interior wall of the container; 9. The electric control system adopts the components of famous brand. 10. It can also use ABB inverter.

Model	SRL-Z100/200A	SRL-Z200/500A	SRL-Z300/600A	SRL-Z500/1000A
Total capacity	100/200	200/500	300/600	500/1000
Effective Capacity	70/140	150/375	210/380	375/640
Speed	475/980/80	475/950/80	475/950/80	475/950/80
Motor power	14/22/5.5	30/42/7.5	40/55/11	55/75/15
Heating method	Self friction	Self friction	Self friction	Self friction
Cooling method	Water cooling
Material discharging method	Pneumatic
